AT41 Delay Trigger and Timing Module 1sec - 40 hours

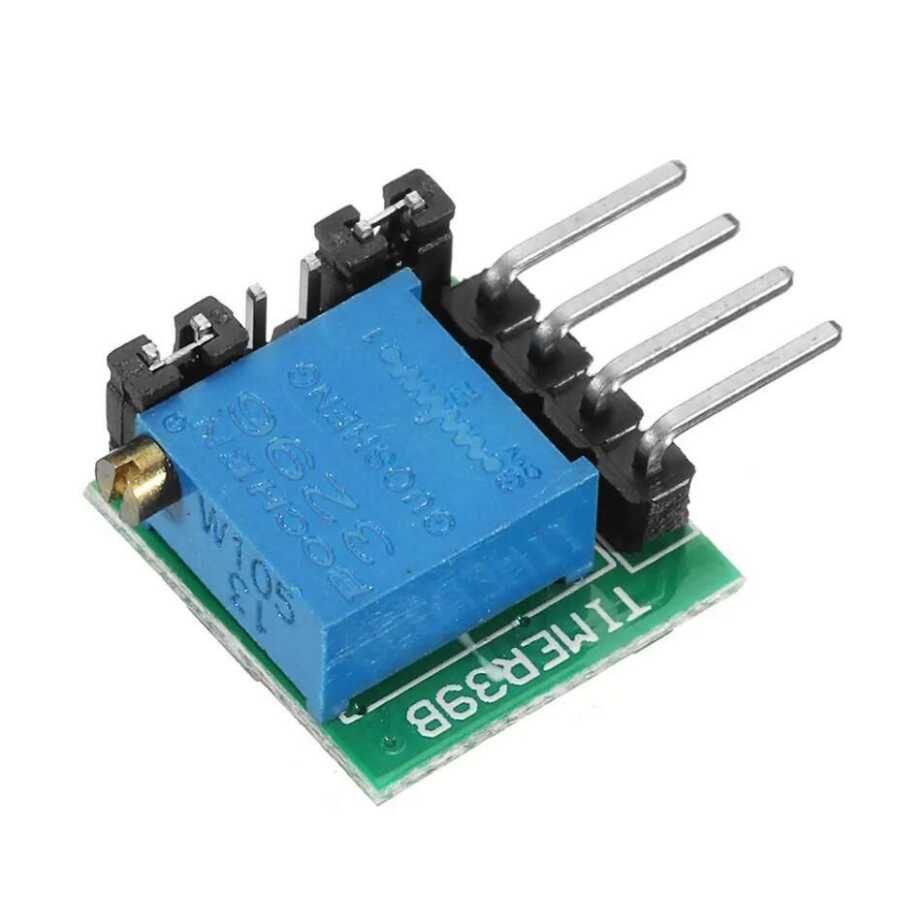

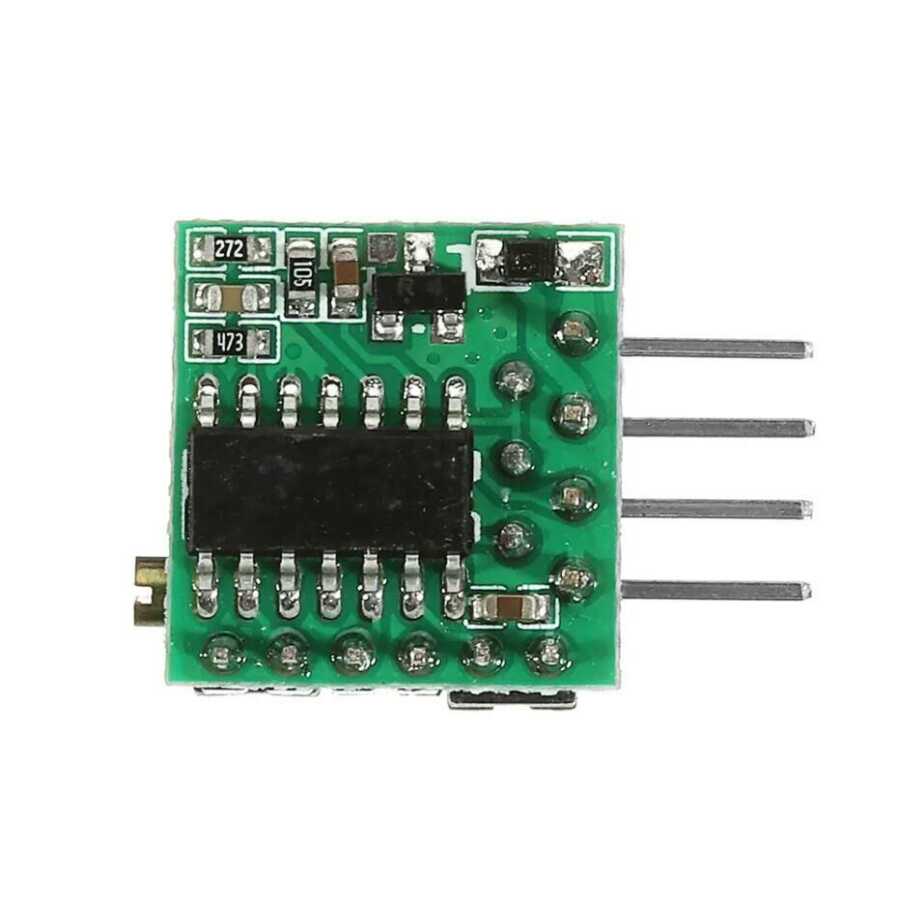

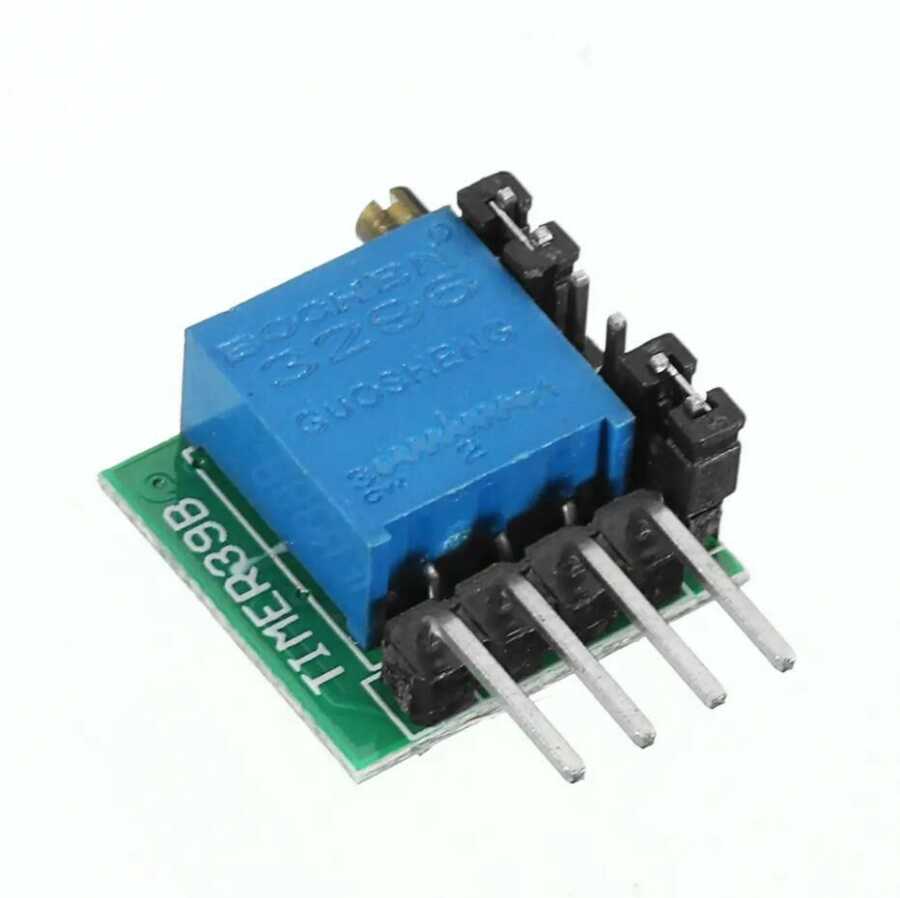

AT41 Delay Trigger and Timing Module 1sec - 40 hours. It is a trigger and time module that works with 3-27V and has dimensions of 15x11x8mm and can be adjusted between 1 second and 40 hours. It has 4 pins of 2.54mm.
Time Adjustment
Delay time can be adjusted with potentiometer, range 1sec - 40 hours
- Vo output port level can be adjusted with wire jumper
- 1,2,3 pins are used to adjust the timing time range, 1-2 connection timing time can be adjusted from 1sec-290sec; 2-3 connection timing time can be 256 times larger, 256sec-40s adjustable
4,5,6 pin output port is used to set the Vo status; 4-5 connection: there is no output in the initial state of power on; there is output after triggering; there is no output when the timing time is over; 5-6 connection: there is output in the initial state of power on, there is no output after triggering; restores the output when the timing period is over.
Pin Layout
- VCC: +
- TG: Trigger
- Vo: Output
- GND: -
Connection Diagram
