ESP8266 ESP-01S WS2812 RGB LED Control Module

ESP8266 ESP-01S WS2812 RGB LED Control Module

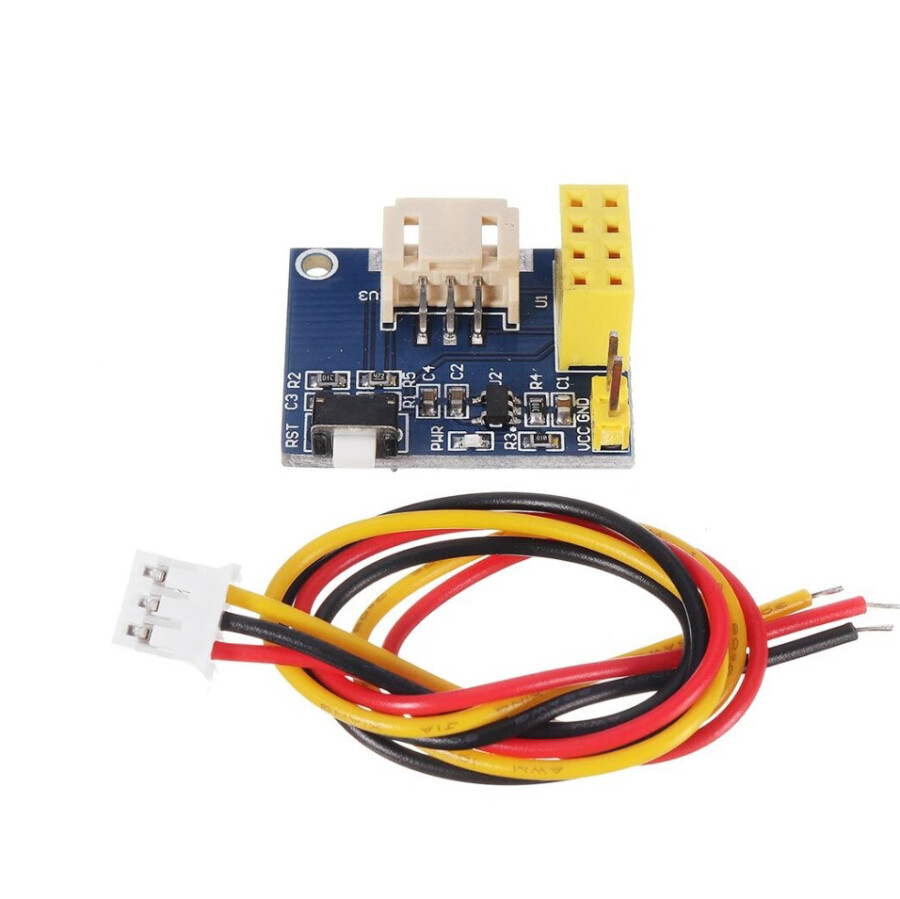

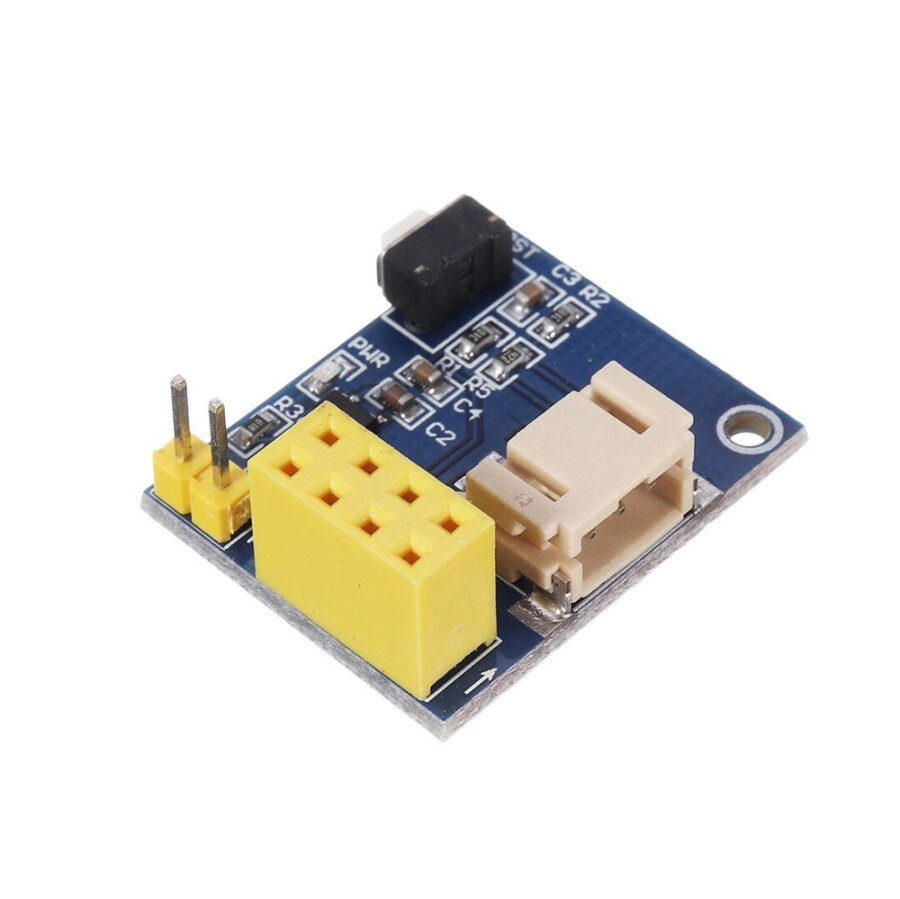

ESP8266 ESP-01S WS2812 RGB LED Control Module is a ESp-01 / Ep-01s based WS2812 RGB LED controller adapter module Neopixel RGB LED controller. With this board, you can easily make your color screen project with Arduino IDE. The product content includes a 3 pin JST-XH cable.

ESP8266 and NeoPixel are not included in the product.

You can access the ESP8266 product by clicking here.

You can access the Neopixel products by clicking here.

Features

• Control Pin: GPl02
• Interface: 3 Pin connector
• Working voltage: Dc 3.v-5v (Please note: The positive supply voltage vcc on the board is connected to vcc on the Ws2812 3PIN connector. Therefore, if your light bar/lamp ring is powered by 5v, use a Dc 3.7v-5v power supply.)
• Supports 3.7V lithium battery
• JST-XH Cable Length: about 20cm
• Module Size: 25x21mm

Example Usage
