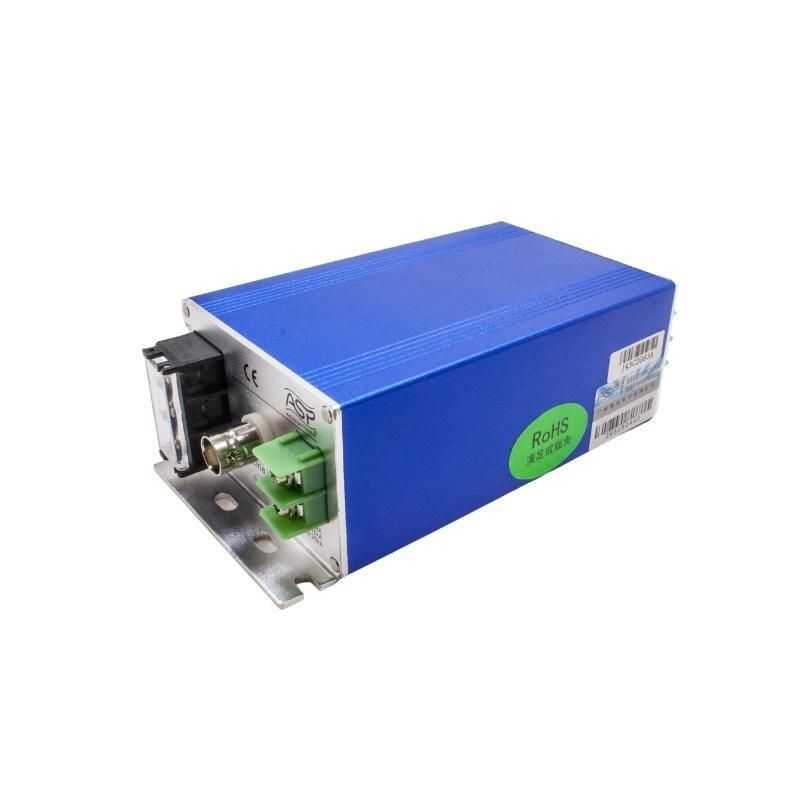

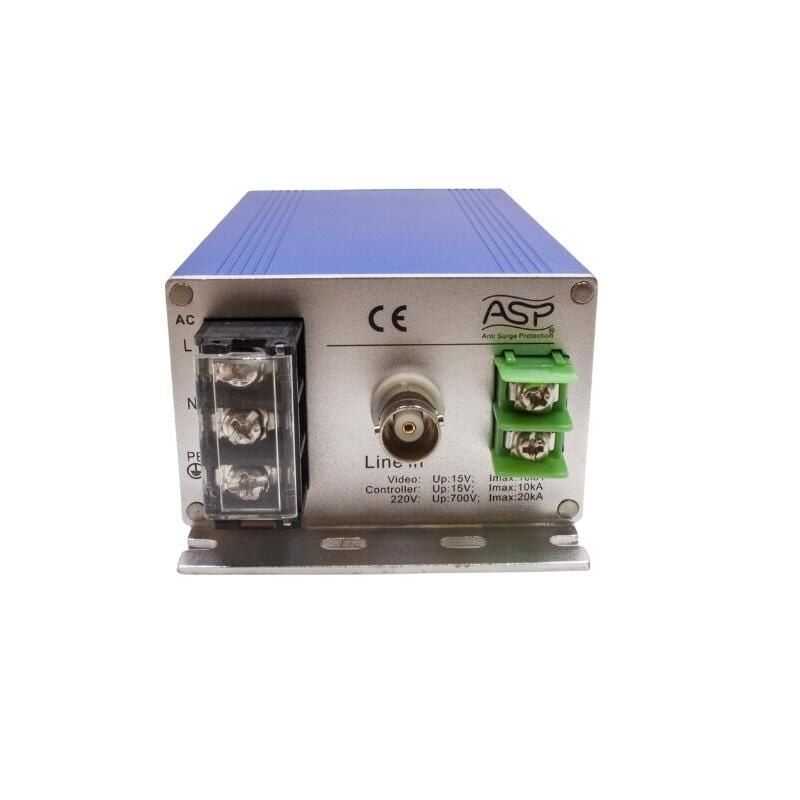

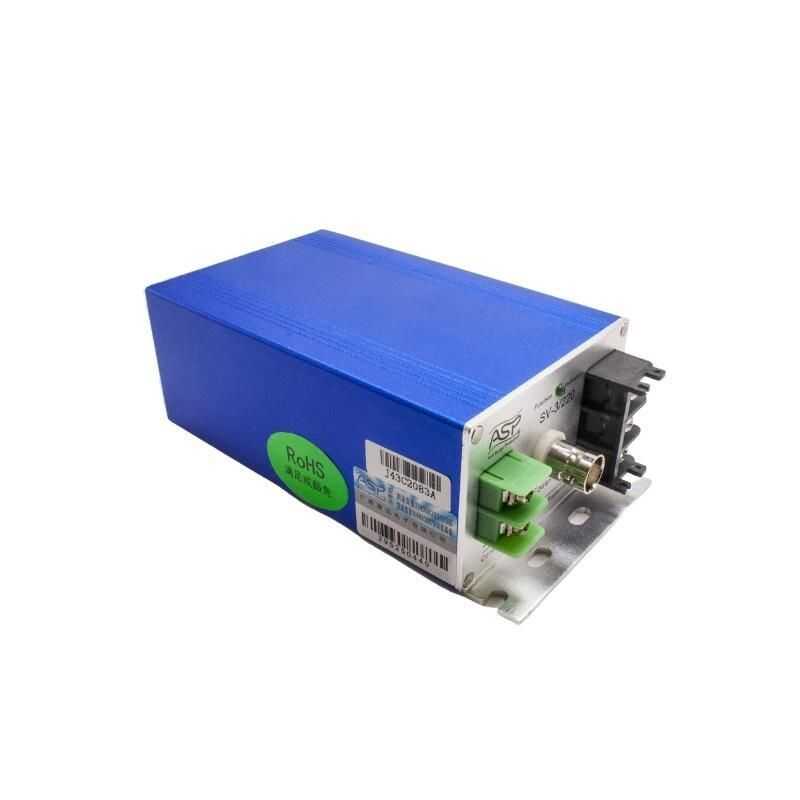

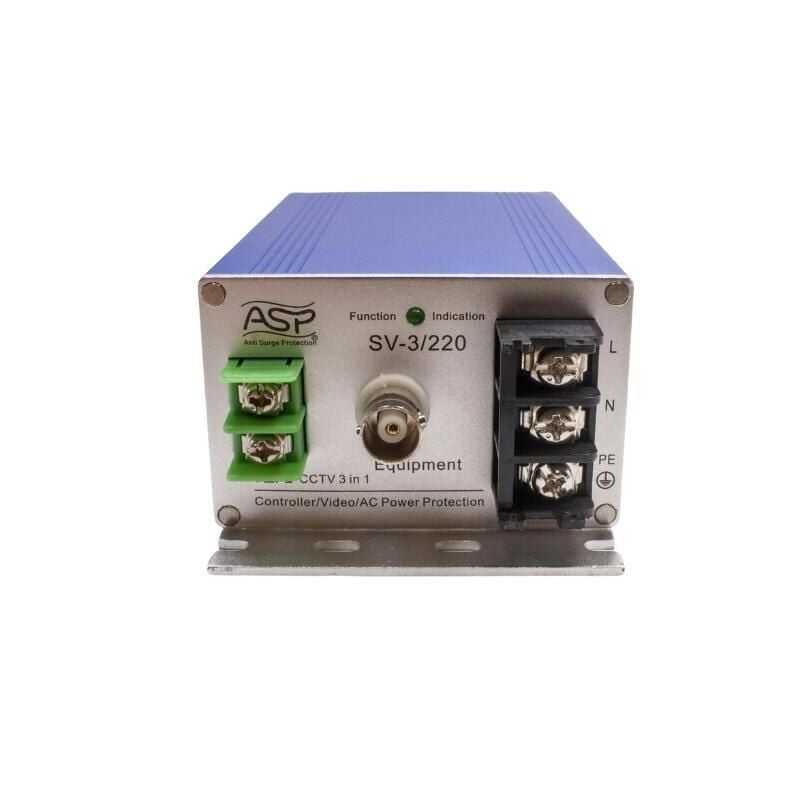

ASP SV-3/220 Electrical Surge Protector - Surge Protector

ASP SV-3/220 Electrical Surge Protector - Surge Protector.Designed and manufactured according to IEC and GB standards.AC/DC power supply, PTZ It is suitable for surge protection for surveillance cameras with (or without) control port. The product adopts two-stage serial connection protection, the maximum discharge current (8/20µS) can reach 10kA, and the transmission capability is 10MHz.

Power Surge Protection Features :

• Rated Voltage: 220V AC
• Maximum Continuous Operating Voltage: 320V AC
• Protection level (8/20µS ): 1.2kV
• Rated Load Current: 10A
• Rated Discharge Current (8/20µS): 5kA
• Maximum Discharge Current (8/20µS): 10kA

Video Signal Overvoltage Protection Features:

• Maximum Continuous Operating Voltage: 8V
• Protection Level (1.2/50µS): 18V
• Rated Load Current: 500mA
• Rated Discharge Current: 5kA
• Maximum Discharge Current: 10kA
• Transmission: 10MHz

PTZ Control Signal Features :

• Maximum Continuous Operating Voltage: 8V
• Protection level (1.2/50µS): 18V
• Rated Load Current: 500mA
• Nominal Discharge Current (8/20µS): 5kA
• Maximum Discharge Current (8/20µS): 10kA
• Transmission: 10MHz
• Insertion Loss: <0.5dB< /LI>
