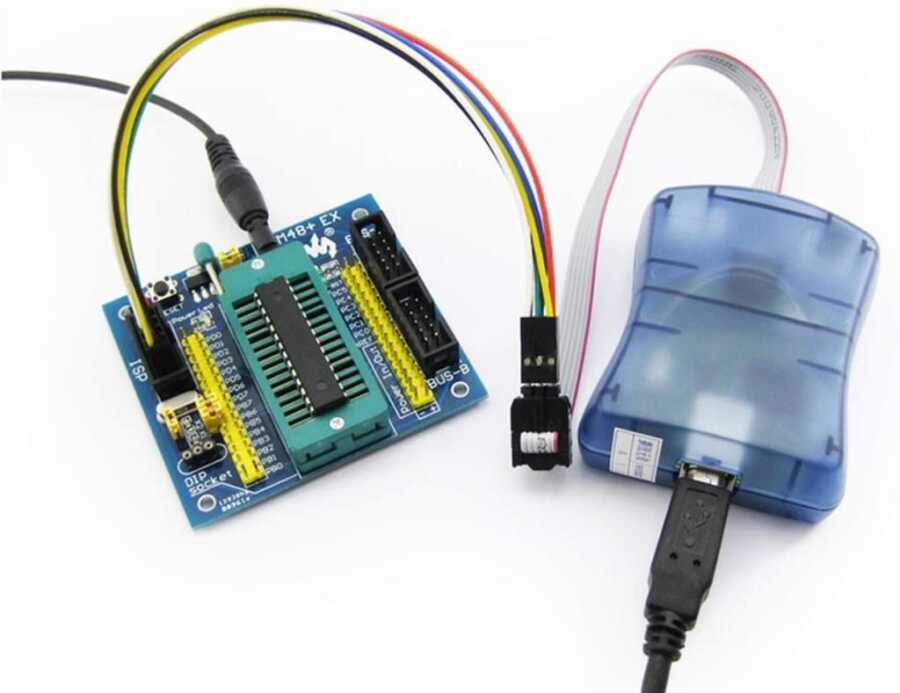

ATMEL USB AVRISP XPII AVR Programmer
ATMEL USB AVRISP XPII AVR Programmer.
- With ISP or PDI interface Supports all AVR devices and select 51 Devices
- Programs both Flash and EEPROM
- Supports Fuses and Lock Bit Programming
- Based on AT AVRISP mkII firmware< /LI>
- Can Be Upgraded to Support Future Devices
- Adjustable ISP programming speed up to 8M frequency
- USB 2.0 compatible (full speed, 12Mbps)
- To target panel 3 optional cables
- USB bus powered, no external power supply required
AVRISP mkII compatible
- Compatible with AT AVR ISP , easy to use, stable and reliable
based on AT AVRISP mkII firmware
- defined as AVRISP mkII in AVRStudio, high-speed programming< /DIV>
Upgradable firmware
- Firmware can be upgraded to Support Future Devices
- Automatic Upgrade
Supported software
- AVR Studio 4/5/6 or WINAVR (GCC) used as front-end software
- IAR, ICCAVR Supports program files created by CVAVR
Device Support
- Supports all AVR devices with USB AVRISP XPII, ISP and PDI Interface. Support for new devices will be added with new versions of AVR Studio.
- Supports AT86RF401 / AT89S51 / AT89S52
