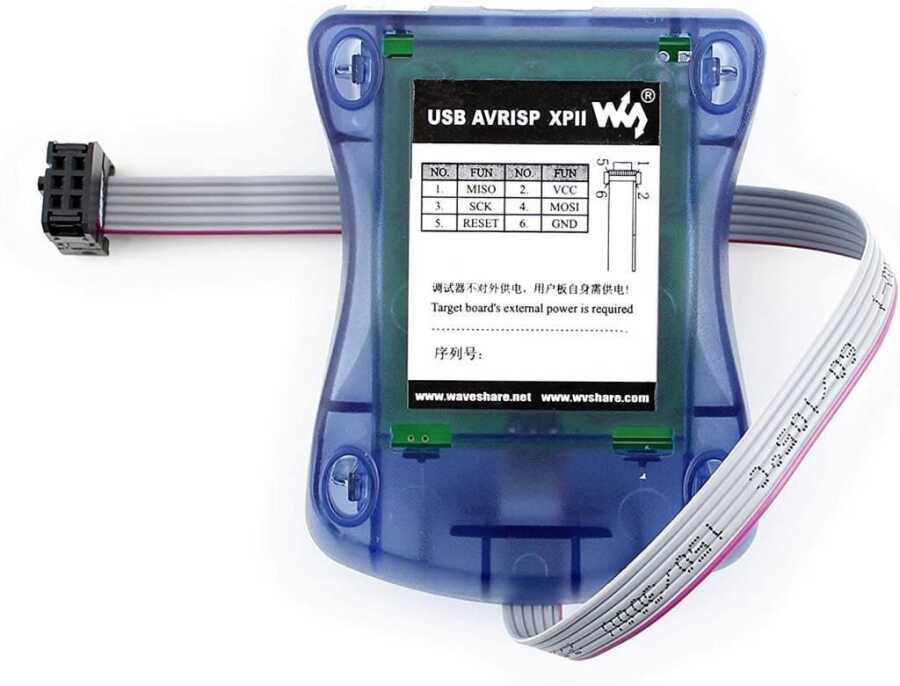

ATMEL USB AVRISP XPII AVR Programmer
Waveshare ATMEL USB AVRISP >
- Supports all AVR devices and select 51 Devices with ISP or PDI interface
- Programs both Flash and EEPROM
- Supports Fuses and Lock Bit Programming
- Based on AT AVRISP mkII firmware
- Can Be Upgraded to Support Future Devices
- Adjustable ISP programming speed up to 8M frequency
- USB 2.0 compatible (full speed, 12Mbps)

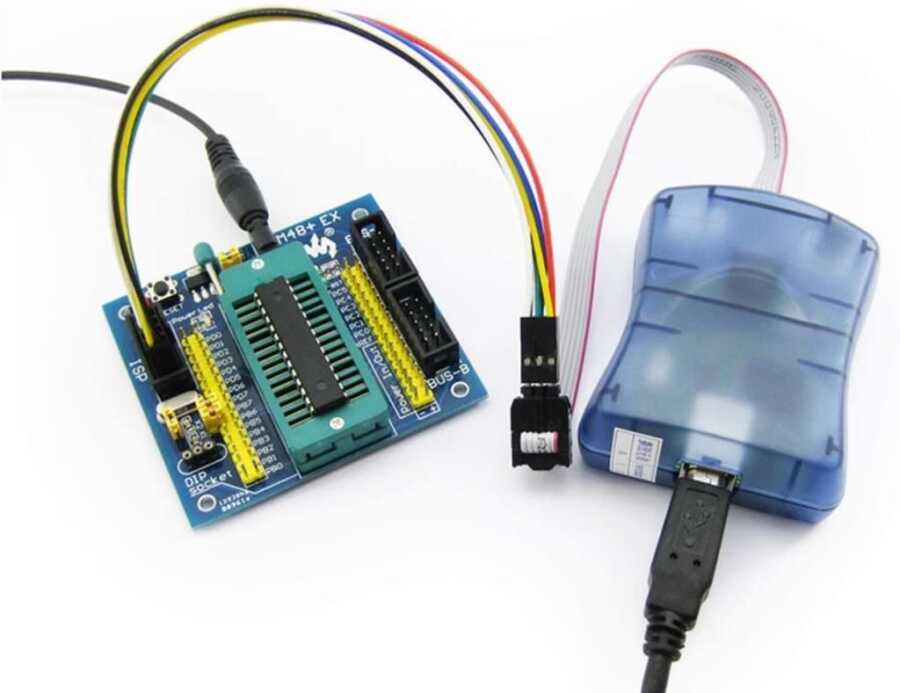

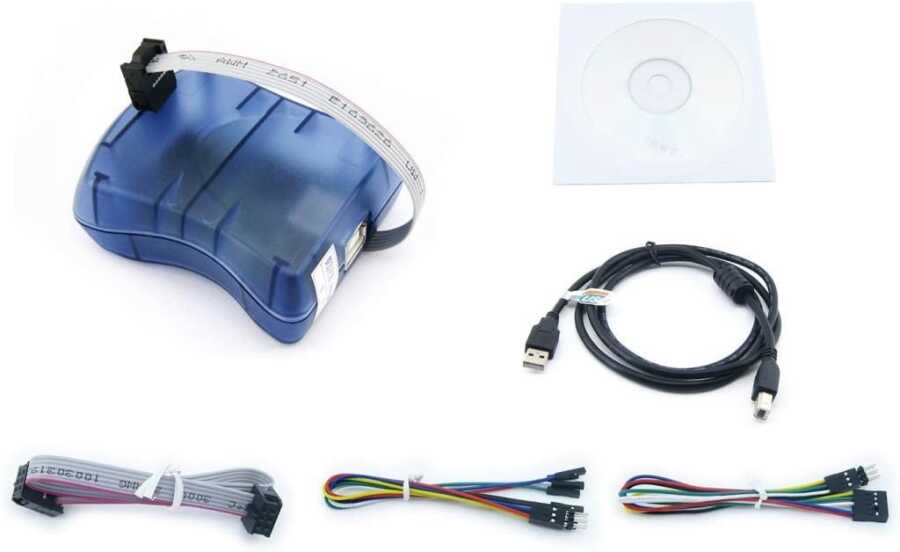

- 3 optional cables to target panel
- USB bus powered, no external power supply required
AVRISP mkII compatible
DIV>- Compatible with AT AVR ISP, easy to use, stable and reliable
Based on AT AVRISP mkII firmware
- AVRStudio Designated as AVRISP mkII in , high speed programming
Upgradable firmware
- Firmware can be upgraded to Support Future Devices
< DIV>- Auto Upgrade
Supported software
- AVR Studio 4/5/6 or WINAVR (GCC) is used as front-end software
- Supports program files created by IAR, ICCAVR, CVAVR
Device Support
- USB AVRISP XPII, ISP and supports all AVR devices with PDI Interface. Support for new devices will be added with new versions of AVR Studio.
- Supports AT86RF401 / AT89S51 / AT89S52
