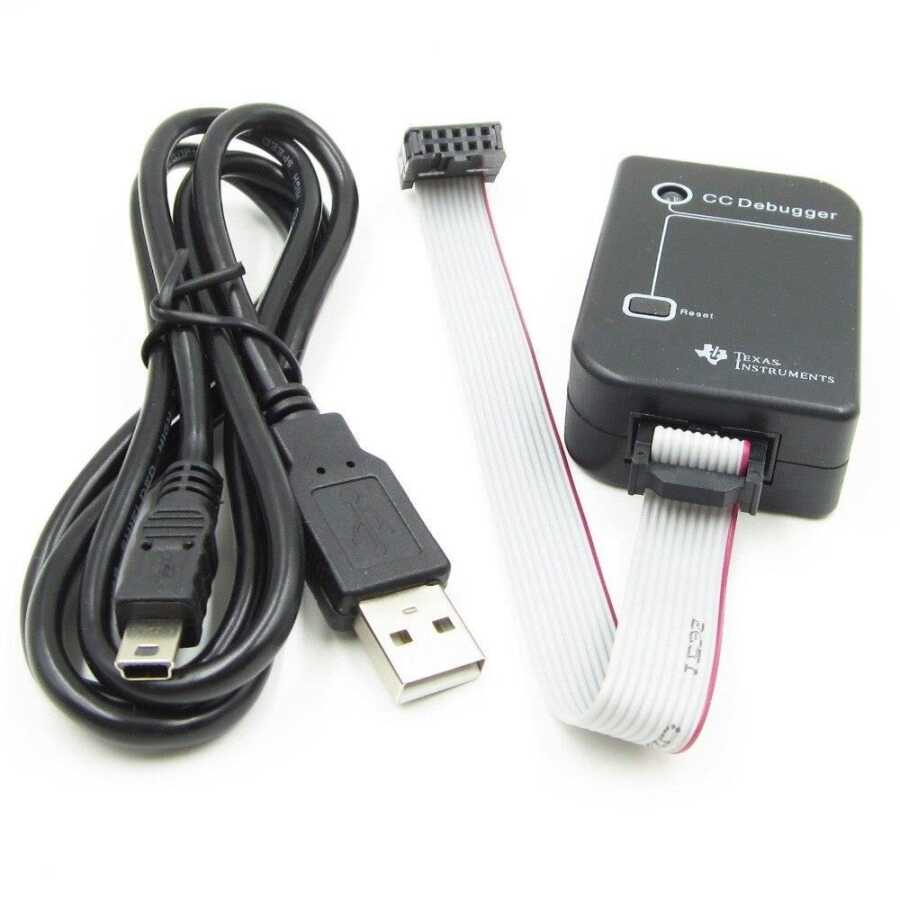

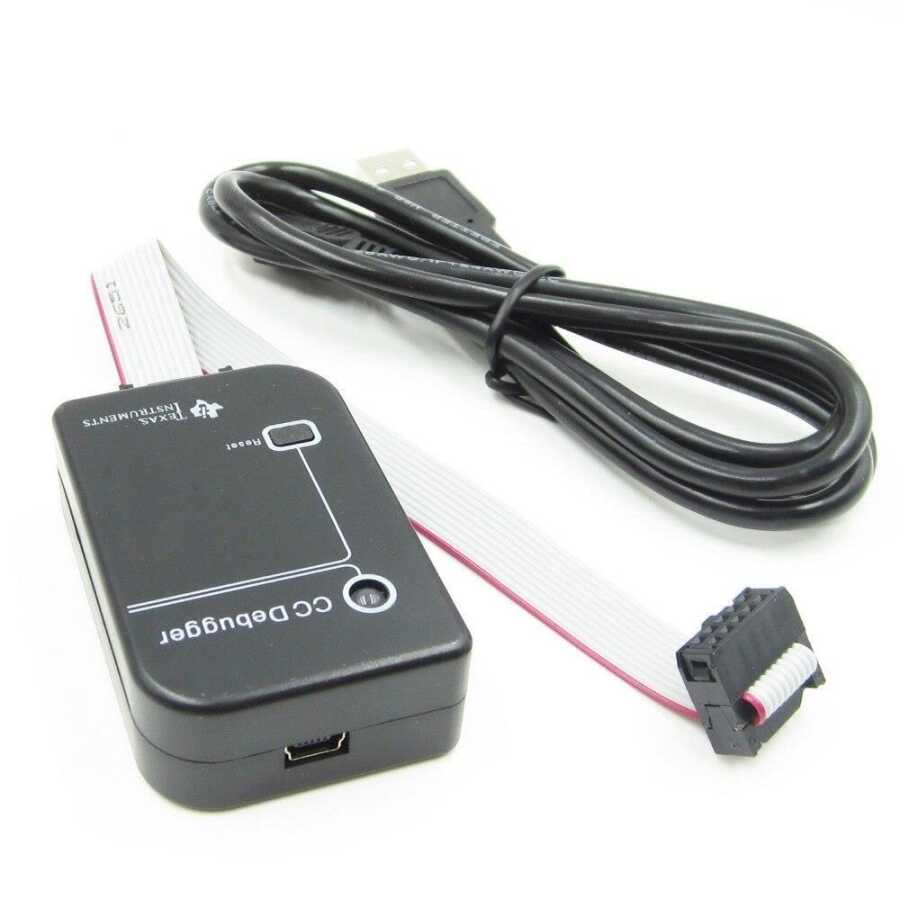

CC-Debugger Programmer and Debugger

CC Debugger is a small programmer and debugger for TI Low Power RF System-on-Chips. Can be used with IAR Embedded Workbench for 8051 (version 7.51A or later) for debugging and SmartRF Flash Programmer for flash programming.

CC Error The debugger can also be used to control selected devices from SmartRF Studio.

Operating Frequency: 2.405-2.485GHz

Wireless Transmission Rate Rate: 250Kbaud

Power Consumption: <20mA (receiver); <25mA (transmission)

Output to 8 IO Port

Debug Pin

Mapping Firmware to Achieve Decoder Function
