BL-USBMach3-200 5-Axis 100KHz USB CNC Control Board V3

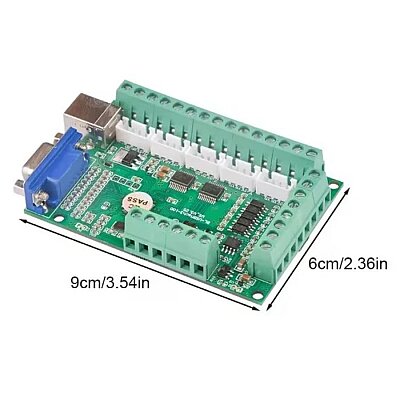

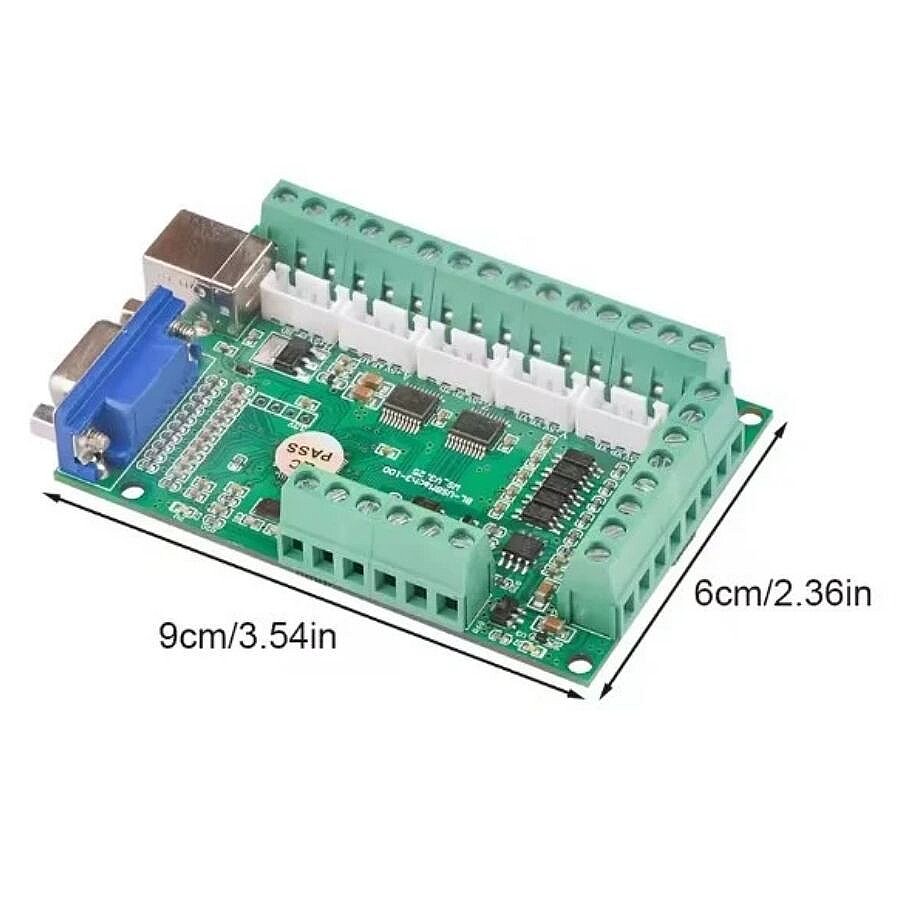

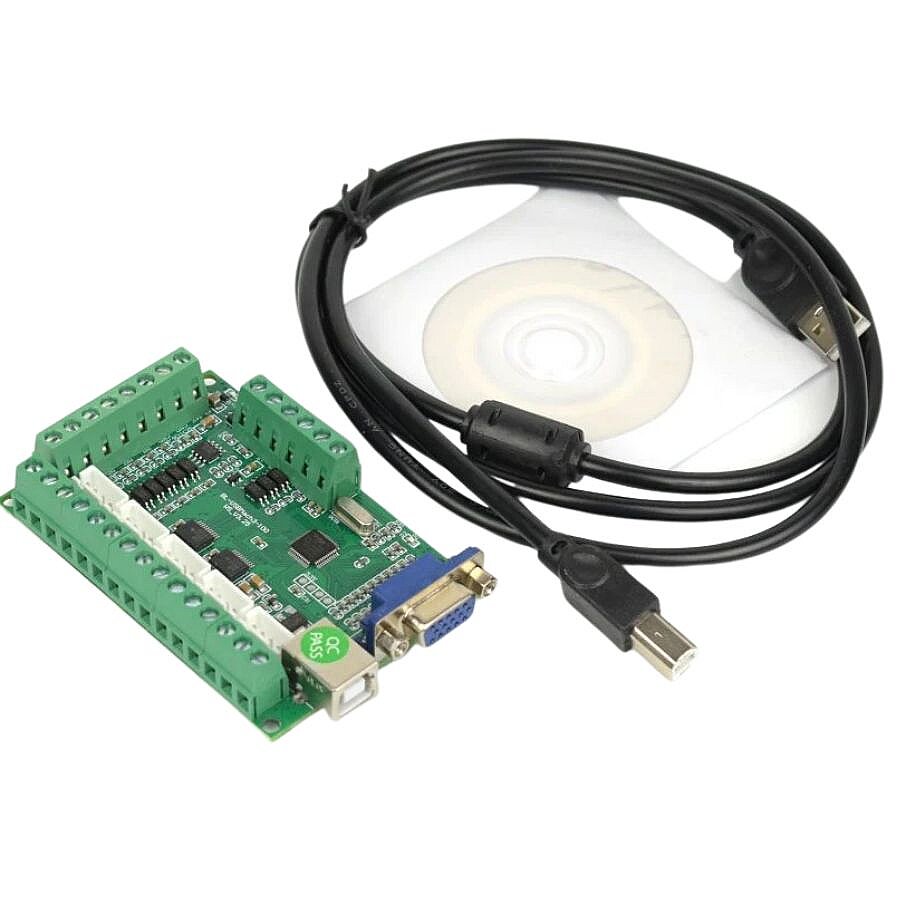

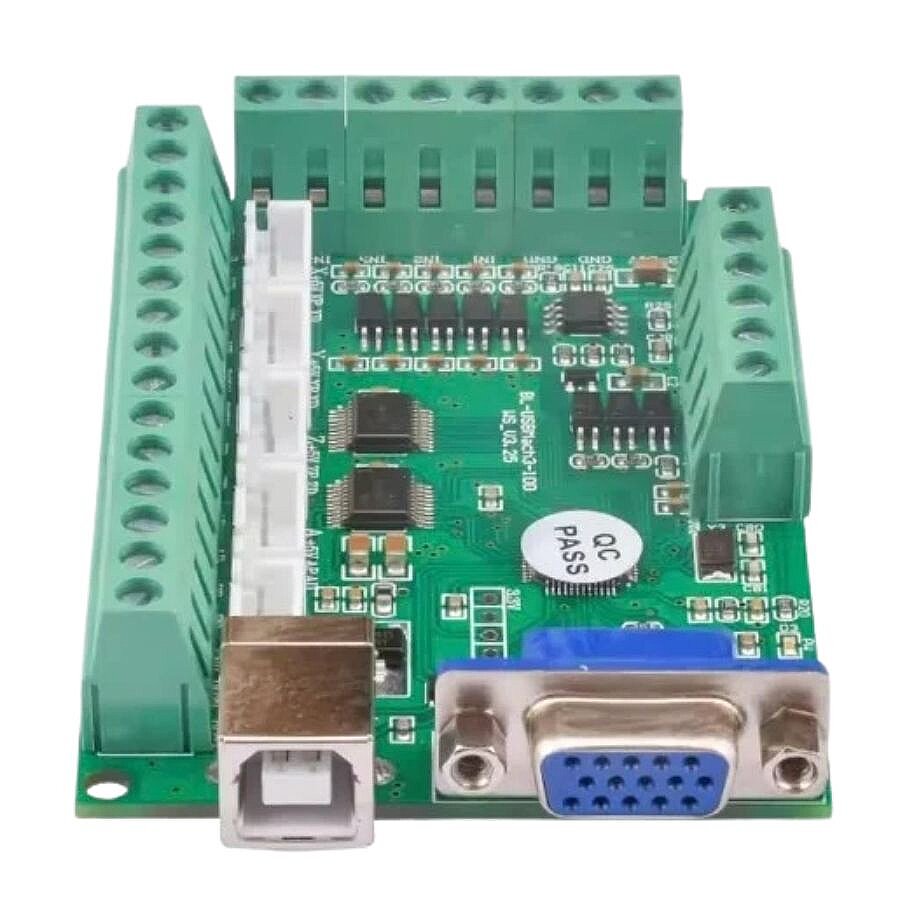

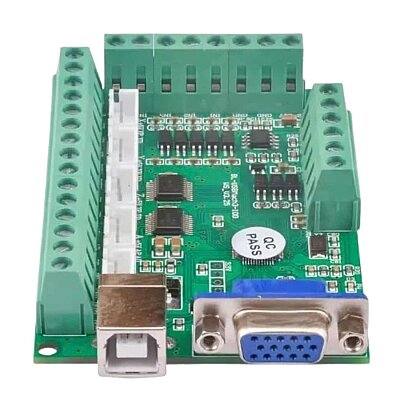

The BL-USBMach3-200 5-Axis 100KHz USB CNC Control Board V3 is a USB-based motion control board designed to control stepper motors or compatible servo drives via Mach3 software. It establishes a USB connection between the computer and the CNC system—eliminating the need for a parallel port—and provides Step/Dir control for up to 5 axes (X, Y, Z, A, and B).
The board supports a maximum step pulse frequency of 100kHz per axis. This allows it to be used with stepper motor drivers and servo drives equipped with Step/Dir inputs. The motors do not connect directly to this board; The board generates only motion commands, while external motor drivers provide the motor current.
Specifications
- External Power Supply: 12–24V DC
- Axes: X / Y / Z / A / B
- Motor Control Signal: Step / Direction
- Maximum Step Pulse Frequency: 100kHz / axis
- PC Connection: USB 2.0
- Control Software: Mach3
- Mach3 Plugin Requirement: Yes
- Output Current: Maximum 500mA
- PWM Level: 5V
- Spindle Analog Speed Output: 0–10V
- Operating System Support: Windows XP, Windows 7, Windows 8, and Windows 10

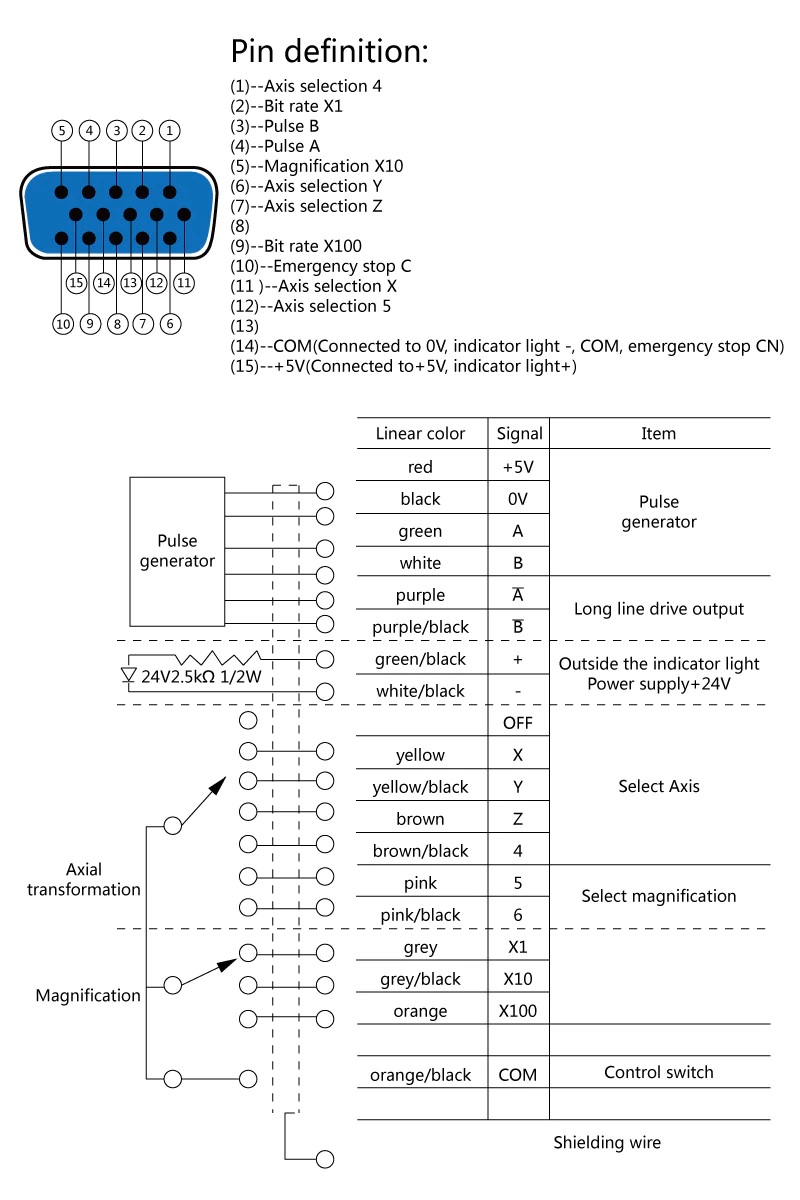

Connection
