CNC1310 15000mW Laser CNC Machine - Cutting Machine

CNC1310 15000mW Laser CNC Machine - Cutting Machine

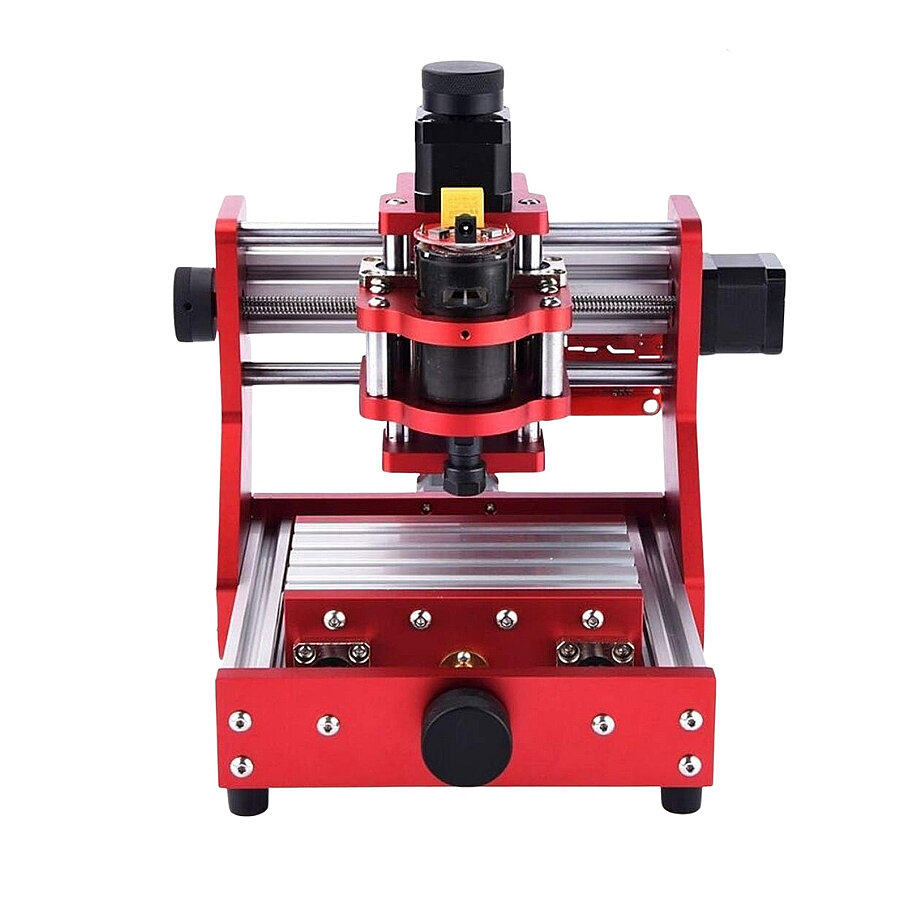

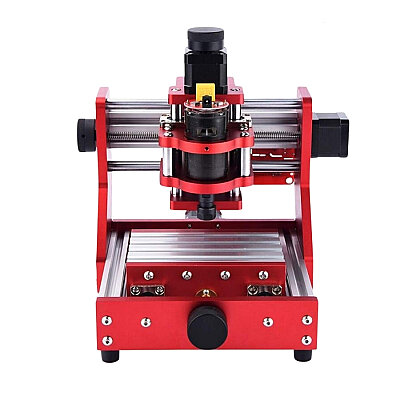

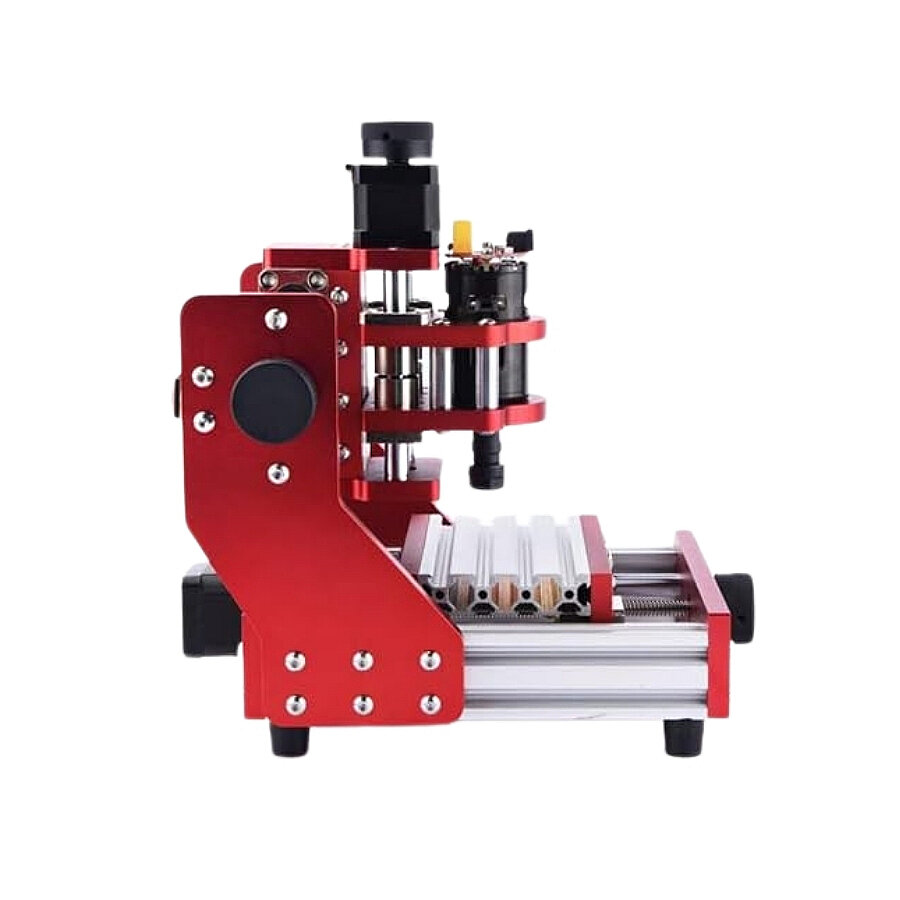

The CNC1310 15000mW Laser CNC Machine - Cutting Machine has a spindle motor that can hold various cutting and engraving tools. Coming disassembled and very easy to assemble, this product allows you to own your own CNC machine. With its 15000mW laser and cutting motor, it provides the possibility of engraving and shaping on many surfaces such as plastic, wood, PVC, PCB, MDF, etc.

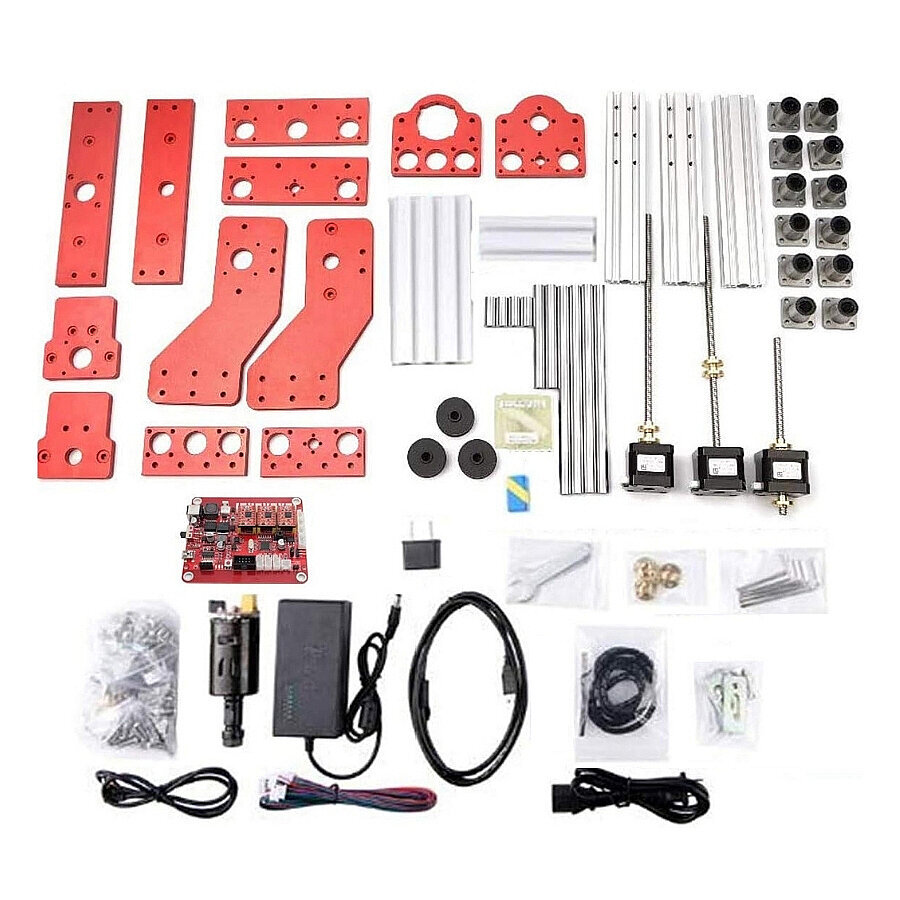

The product includes the necessary equipment for installation and use, including the power supply.

One pair of protective glasses is included as a gift with the product.

Product Manual

Applications

• Metals such as aluminum and copper (for engraving, milling or drilling).
• For shaping and cutting PVC (Polyvinyl Chloride).
• For PCBs (Printed Circuit Boards) to create custom circuit designs.
• Wood, plastics, acrylics and other non-metallic materials.
• Generally for prototyping, DIY projects, small-scale production and hobby applications.
• is used.

Technical Specifications

• Spindle driver chip: MOSFET, max. 60V (recommended within 48V, current: within 10A)
• Spindle PWM speed: Supported
• Can support two motors on the Y-axis
• Can support 2-pin or 3-pin modules
• Supported port: Supports offline control module usage
• Connection: USB (USB-CH340)

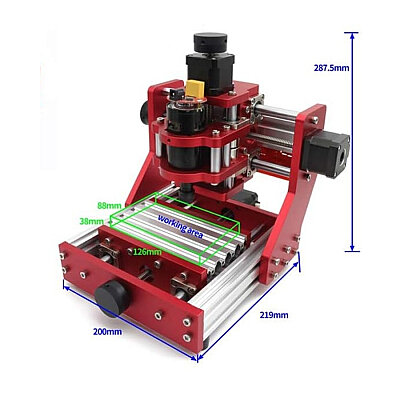

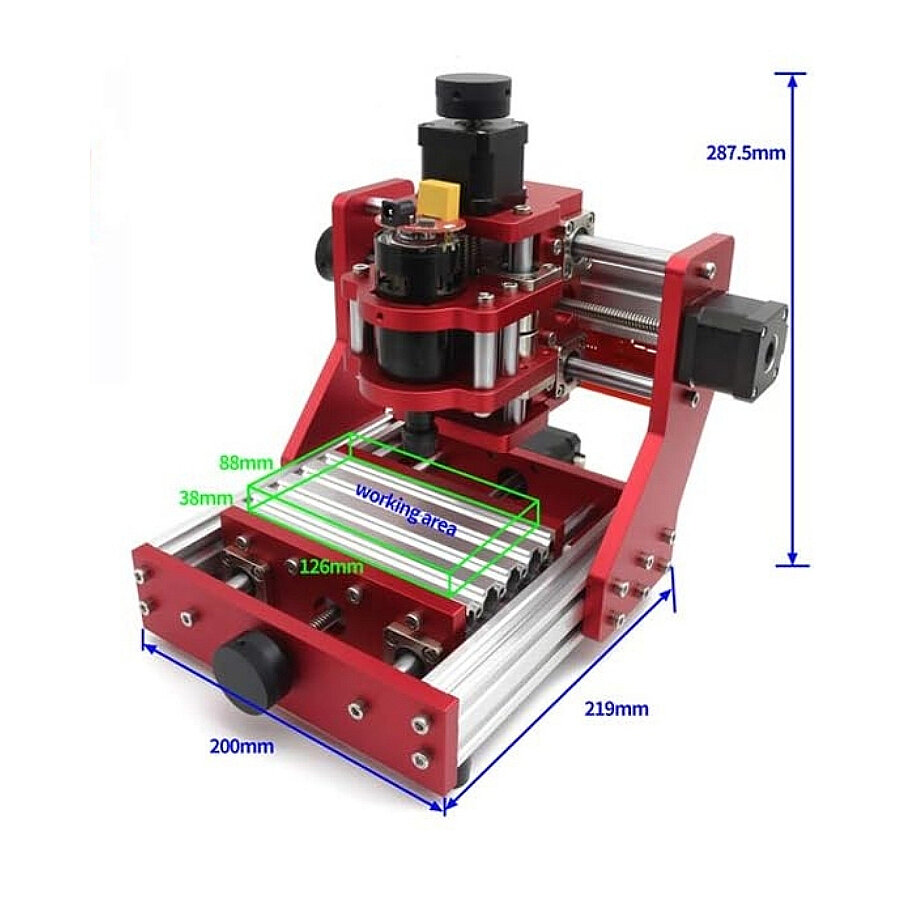

• Input voltage: 12-24V (DC voltage), recommended input voltage 24V 5A Power interface: 5.5-2.5 mm DC interface Working Range: 126mmx88mmx38mm Machine Dimensions: 287mmx219mmx200mm Machine Material: Aluminum+Profile Spindle: 775 Spindle (12-36V), (8000 rpm at 24V) Step Motor: 2-Phase 4-Wire Stepper Motors (1.3A 0.25N.m) Lead Screw: T8 Lead Screw Applicable Material (Spindle): copper, aluminum and other soft metals, plastic, wood, acrylic, PVC, PCB etc.
