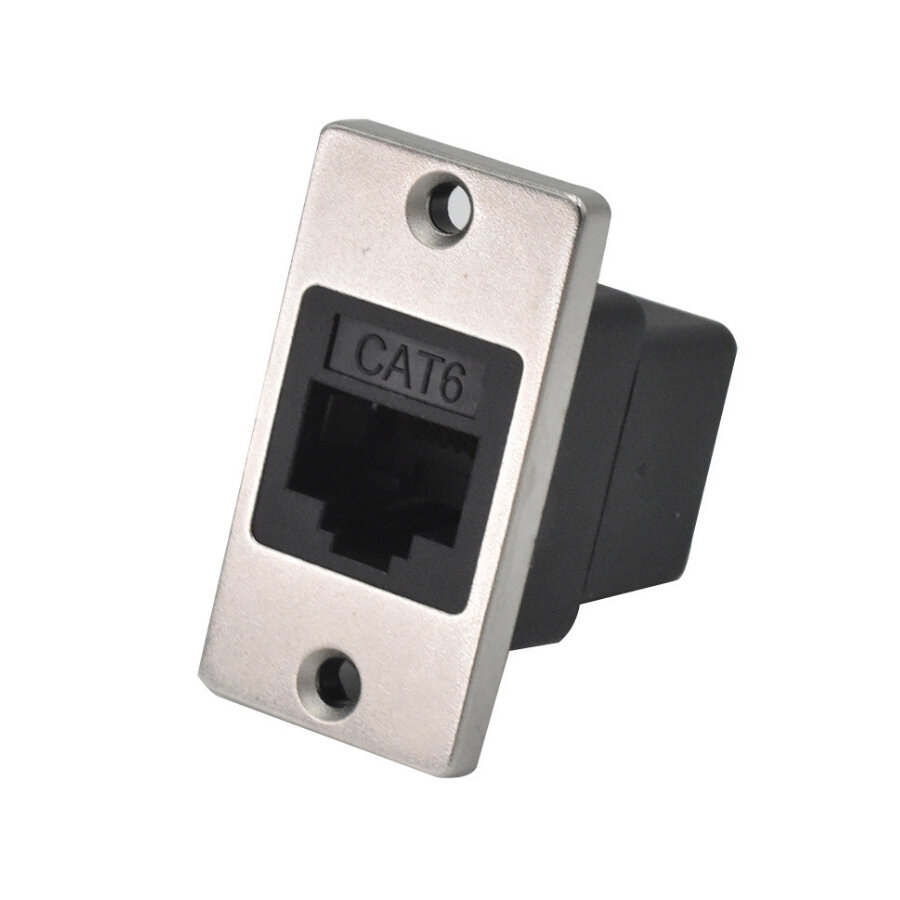

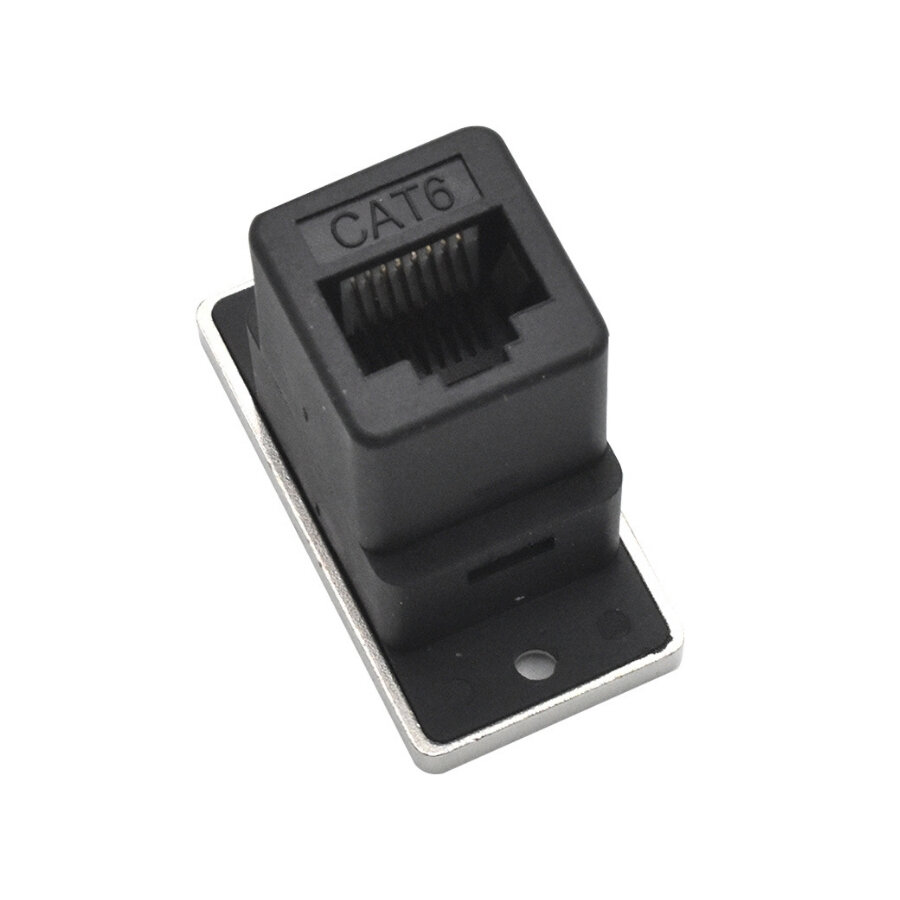

CAT6 RJ45 Female Panel Mount Connector - SCAT6-C

CAT6 RJ45 Female Panel Mount Connector - SCAT6-C

The CAT6 RJ45 Female Panel Mount Connector - SCAT6-C provides reliable and high-performance connectivity in Class CAT6 network cabling systems. This module with an RJ45 interface is designed for use in industrial, communication, and automation environments.

Features

• Port: RJ45
• Front Panel Material: Zinc Alloy
• Body Material: PA6BG33
• Insulation Resistance: >500 MΩ
• IP Class: IP54
• Operating Temperature Range: -40 to +85°C

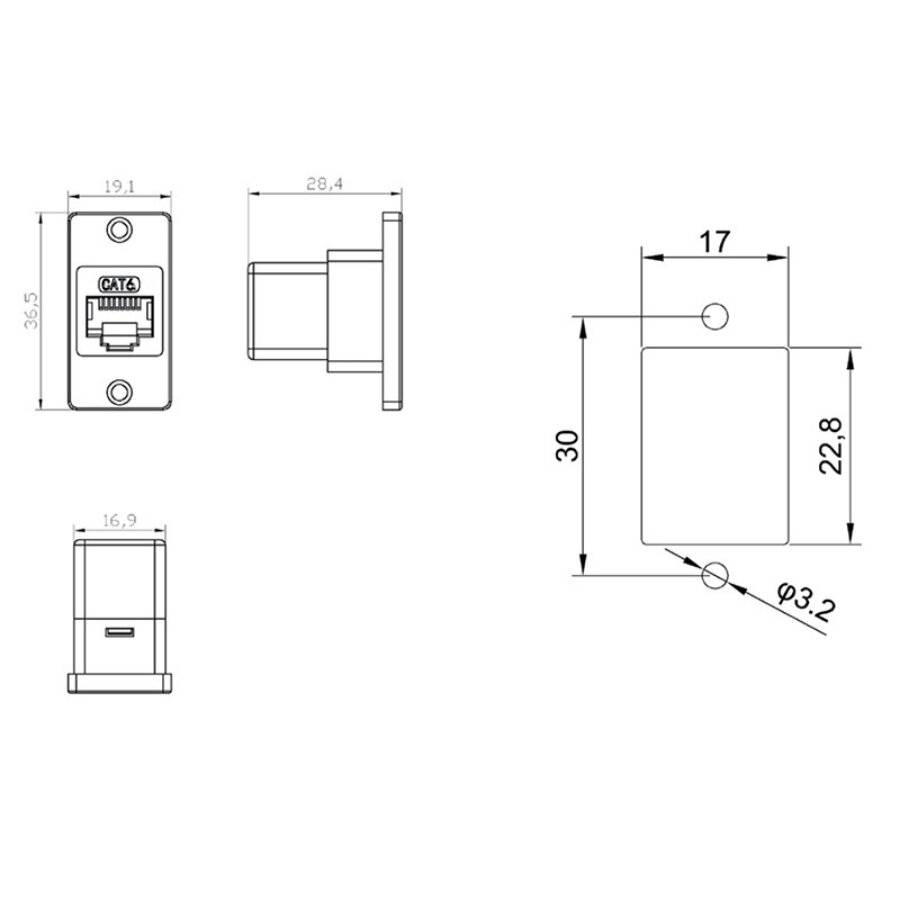

• Mounting Hole Diameter: 3.2mm
• Mounting Hole Distance: 30mm
• Case Size: 36.5x19.1x28.4mm
