CAT6 RJ45 Female Panel Mount Connector - SCAT6-C1

CAT6 RJ45 Female Panel Mount Connector - SCAT6-C1

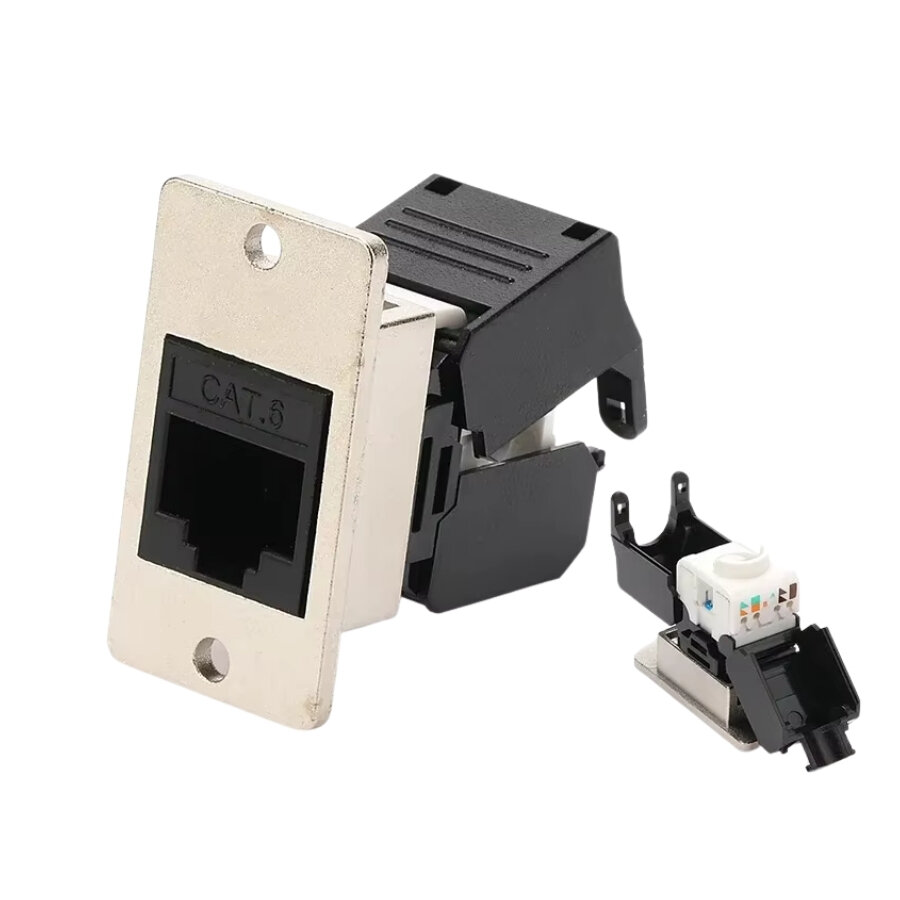

The CAT6 RJ45 Female Panel Mount Connector - SCAT6-C1 provides a reliable and high-performance connection in Class CAT6 network cabling systems. This module, featuring an RJ45 interface, is designed for use in industrial, communications, and automation environments. The rear connection socket is keystone modular. Features a universal color-coded label.

Features

• Port: RJ45
• Front Panel Material: Zinc Alloy
• Body Material: PA6BG33
• Insulation Resistance: >500 MΩ
• IP Class: IP54
• Operating Temperature Range: -40 to +85°C

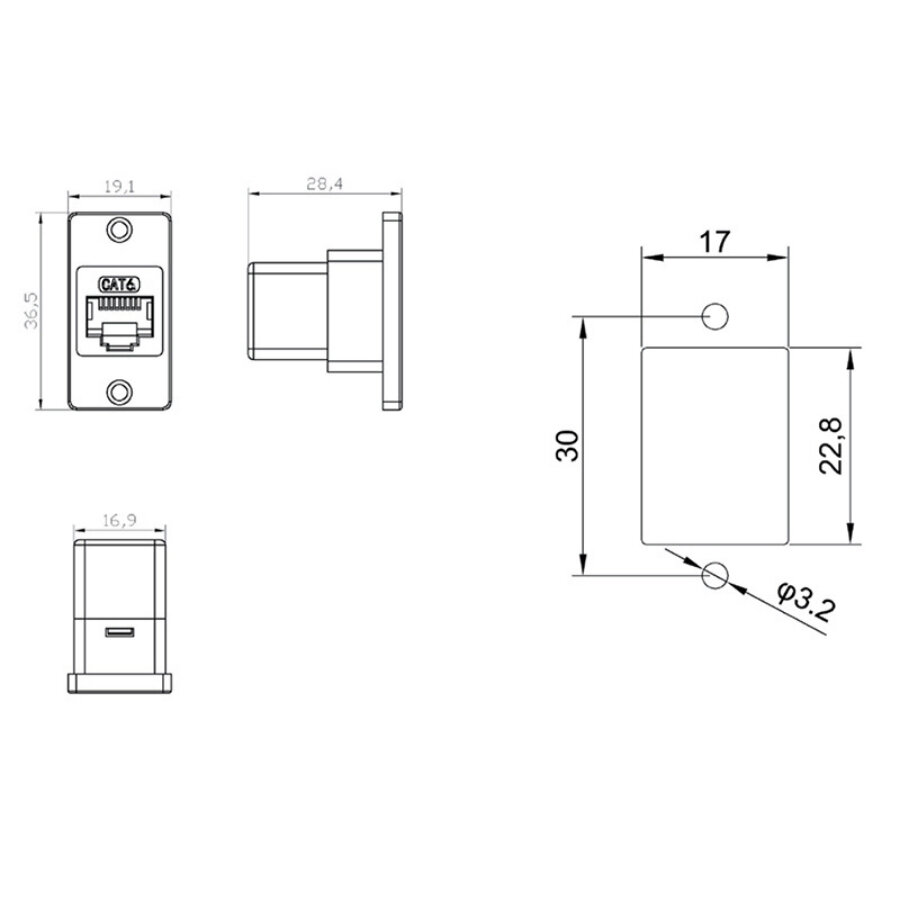

• Mounting Hole Diameter: 3.2mm
• Mounting Hole Distance: 30mm
• Case Size: 36.5x19.1x28.4mm
