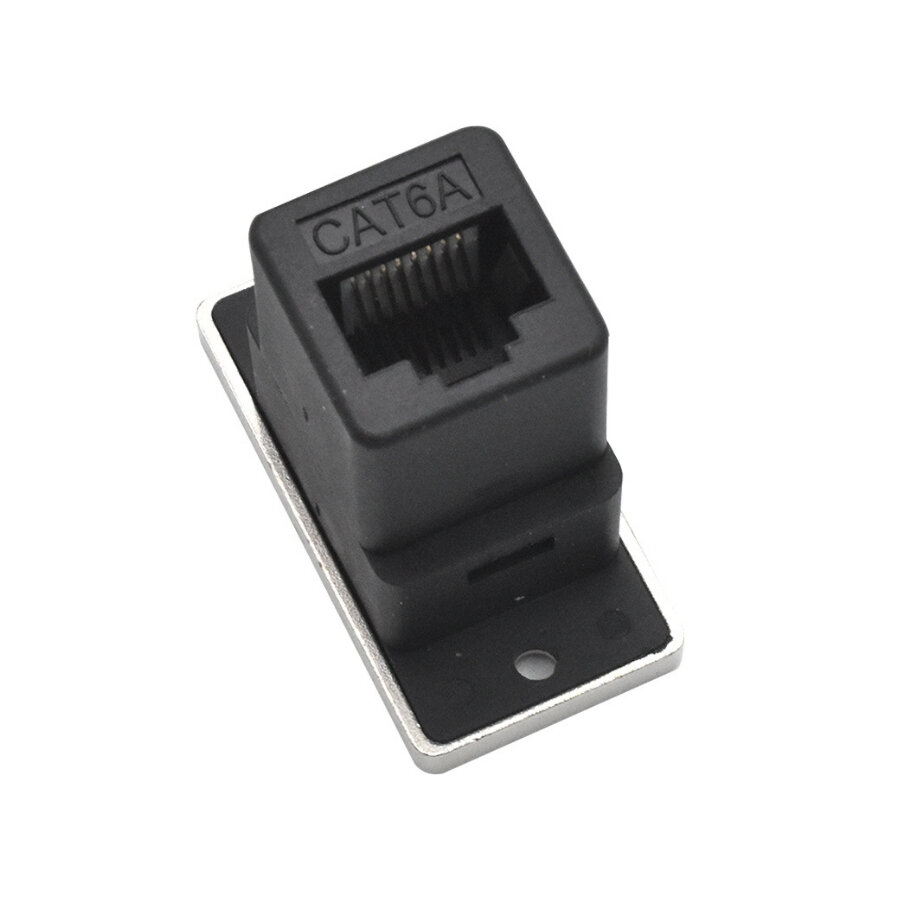

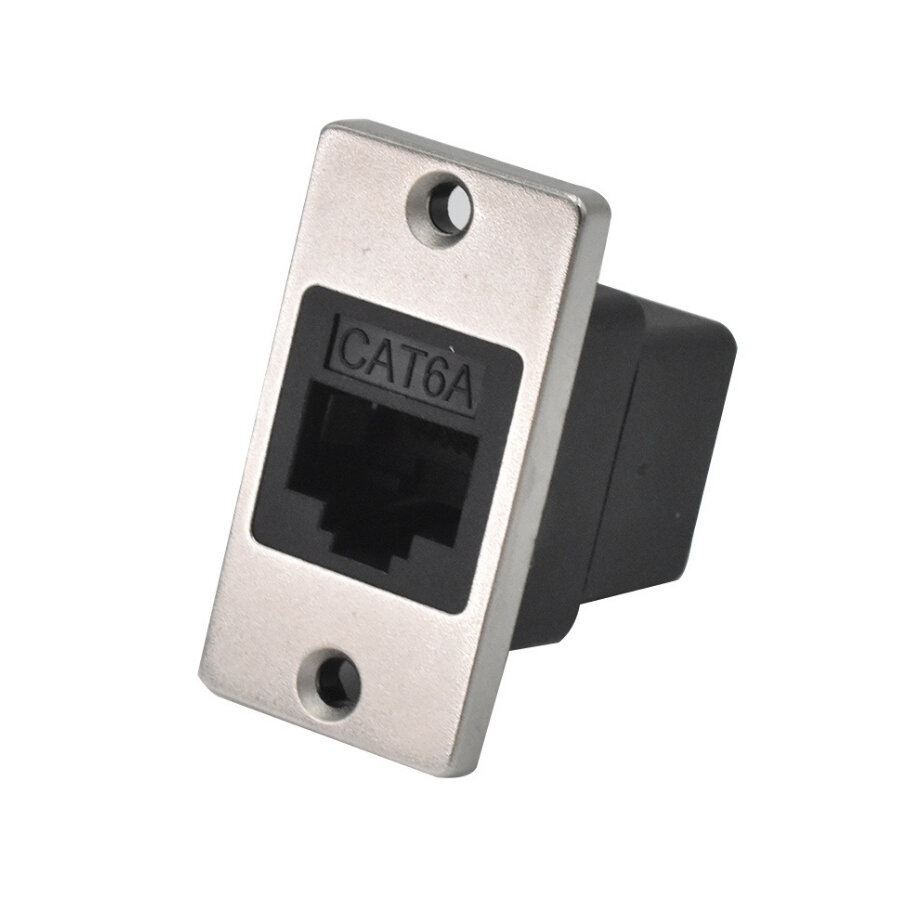

CAT6A RJ45 Female Panel Mount Connector - SCAT6A-C

The CAT6A RJ45 Female Panel Mount Connector - SCAT6A-C provides a reliable and high-performance connection in Class CAT6A network cabling systems. This module with an RJ45 interface is designed for use in industrial, communications, and automation environments.

The key difference between Cat6 and Cat6a patch cables lies in their transmission speed. A Cat6 network cable allows for a bandwidth of 1 Gigabit per second, or 1000 Mbps, while a Cat6a cable allows for a bandwidth of up to 10,000 Mbps.

Features

Port: RJ45
Front Panel Material: Zinc Alloy
Body Material: PA6BG33
Insulation Resistance: >500 MΩ
IP Class: IP54
Operating Temperature Range: -40 to +85°C

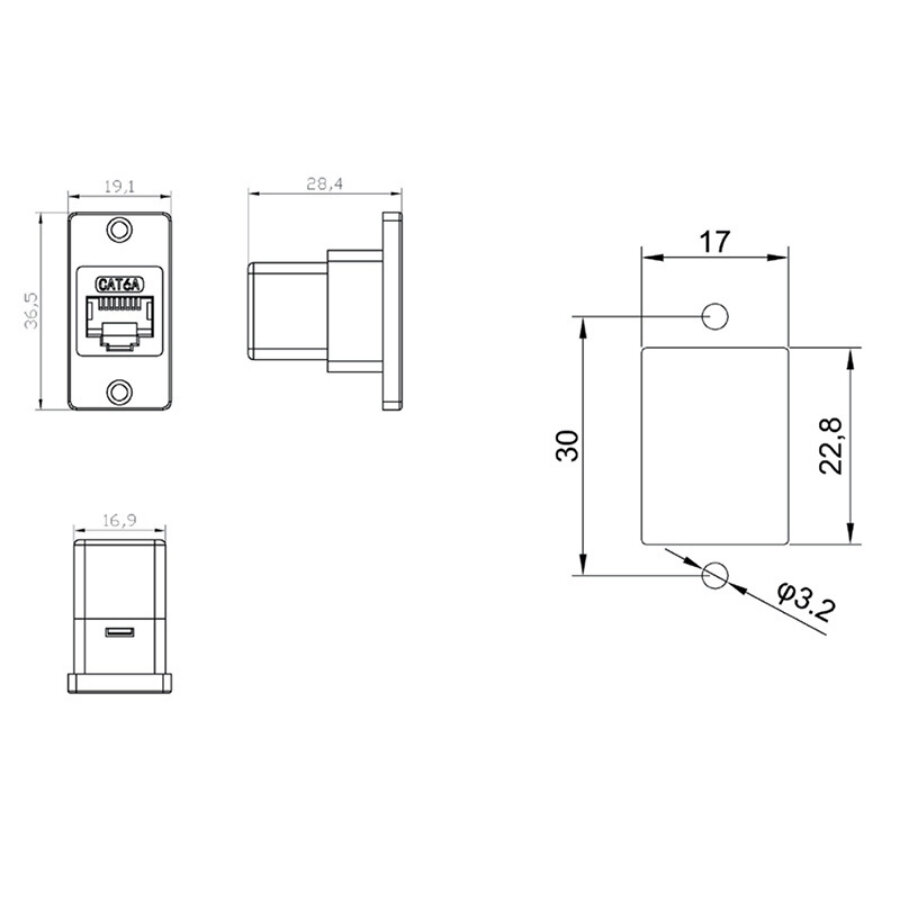

Mounting Hole Diameter: 3.2mm
Mounting Hole Distance Distance: 30mm
Case Size: 36.5x19.1x28.4mm
