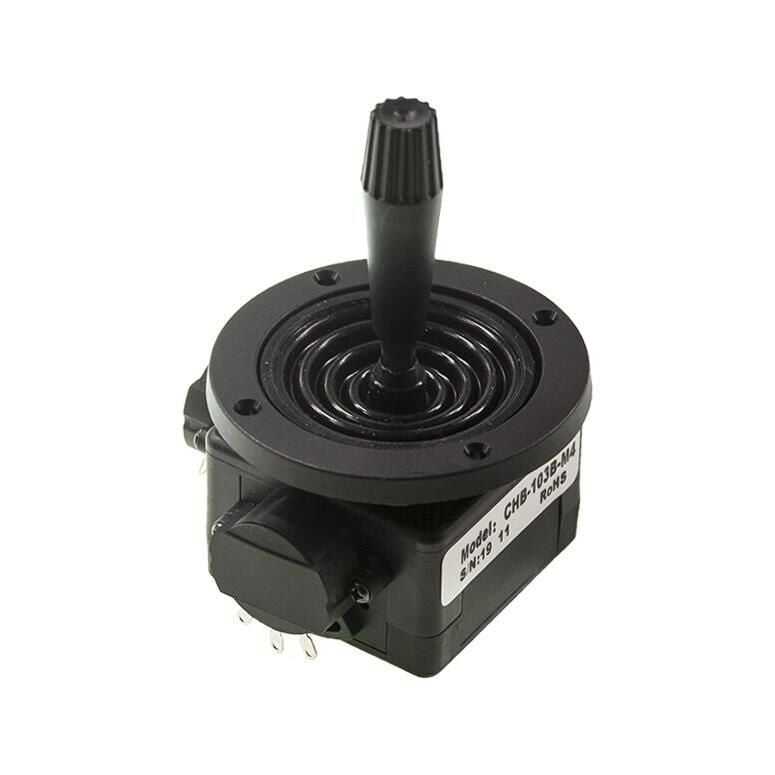

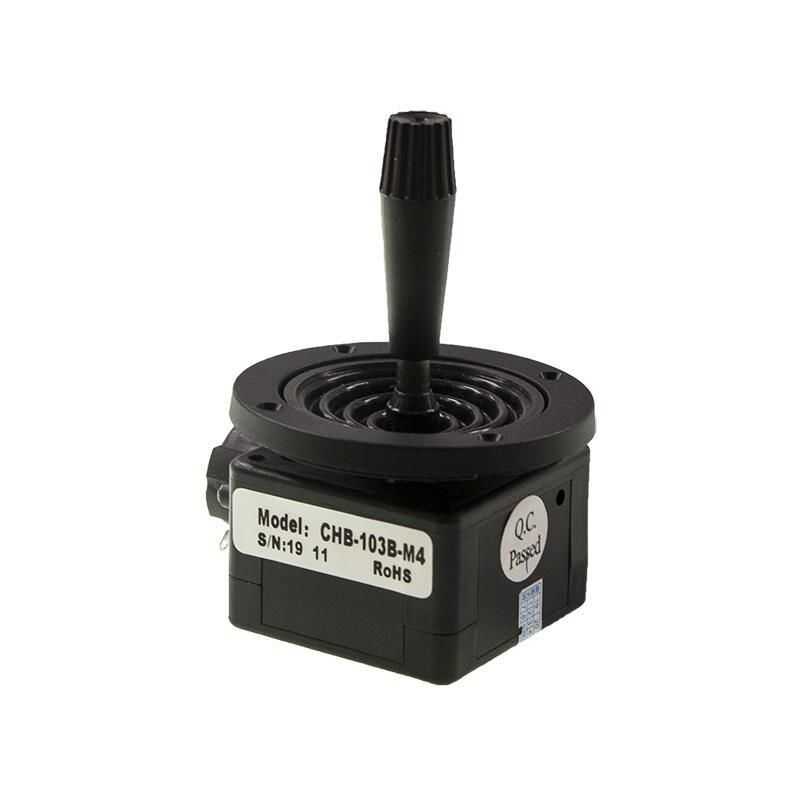

CHB-103B-M4 2 Axis Waterproof Joystick
CHB-103B-M4, 2 axis It is an IP65 low pressure waterproof and dust resistant joystick. There are 2 10k potentiometers on it. It can be used in robotics and electronics projects, various applications and homework, and jimmy jib applications. The product provides water protection with the rubber surface under the head part. For this reason, the installation should be done carefully and the sub-circuit part should be left in a closed place. In this way, it can be used as low-pressure waterproof.
Sample Usage Areas:
- Motion photography cctv control system
- Medical imaging systems
< LI>In measurement equipment- In control equipment of vehicles
- In video editing equipment
- Industrial applications
CHB-103B-M4 Technical Specifications:
- Potentiometer: 10K
- Movement Capacity: 50°
- Axis: 2 Axis
- Resistance Tolerance: +-20%
- Water Protection: IP65
Dimensions:
- Joystick Lever Width:11mm
- Joystick Lever Length: 51.5mm
- Case Size: 40x40x26mm
- Case Size Including Potatoes: 51x51x26mm
