YX-F4R2G 2 Axis Switch Joystick

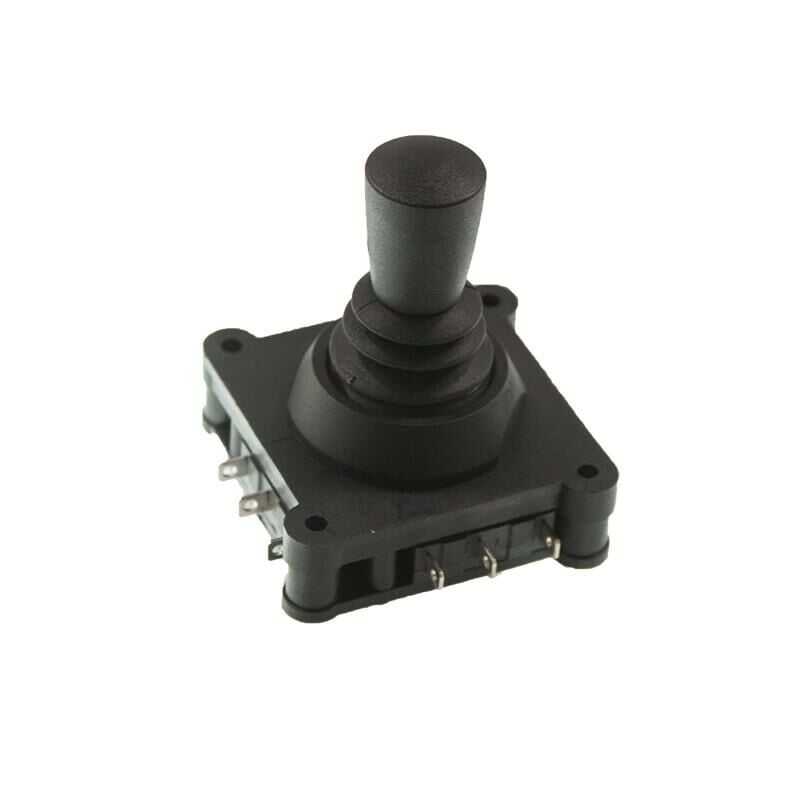

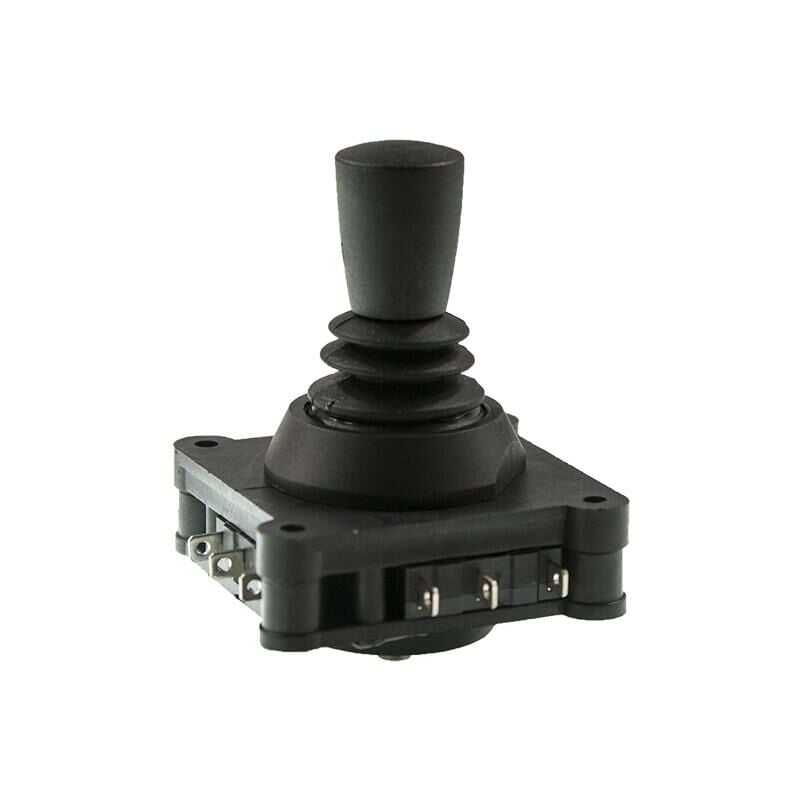

KCV4A-YX-F4R2G is a joystick module with 4 micro limit switches on it. Each switch has 3 legs: NO, NC and COM. Multiple switches, buttons, etc. It is suitable for use in projects where you need to use it and in opening and closing operations. The product should be withdrawn. In other words, as long as you push the handle, the switch inside is affected, and as soon as you release it, the handle returns to the center.

This product, which has IP65 protection, is resistant to dust and simple splashes of water without pressure.

Technical Specifications:

The arm returns to the center when released.

Operating Temperature: -20°C -65°C

Protection Class: IP65 dust and non-pressurized water protection.

Operating Life: 200.000

Micro Switch Contact Capacities: 250VAC/5A

Button Switch Contact Capacity (If Pushbutton Model): 50VDC/0.1A

Arm Length: 20mm

Arm Width: 15mm

Micro Switch Connection Diagram

YX-F4R2G 2 Axis Switch Joystick

YX-F4R2G 2 Axis Switch Joystick

Technical Specifications:

Micro Switch Connection Diagram

Technical Drawing
