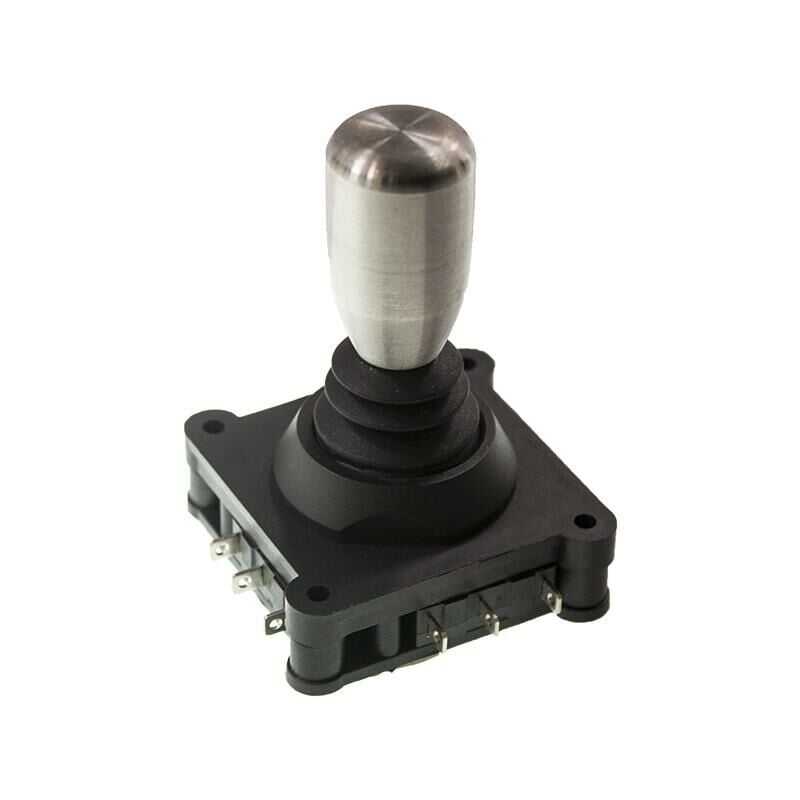

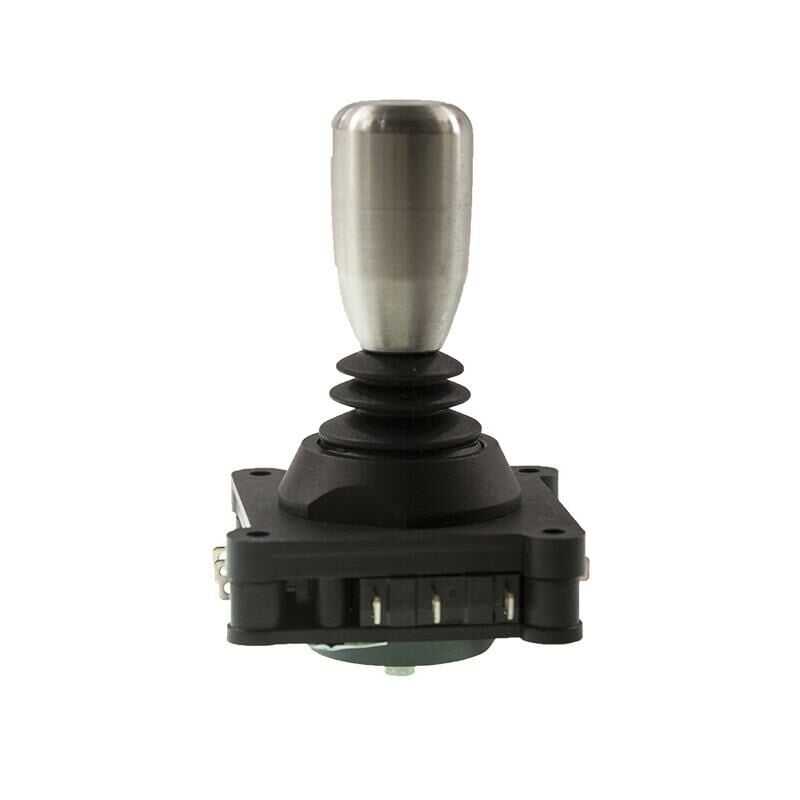

YQ-AJ4R2G 2 Axis Stainless Steel Switch Joystick

KCV4A-YQ-AJ4R2G is a joystick module with a stainless steel arm and 4 micro limit switches on it. Each switch has 3 legs: NO, NC and COM. Multiple switches, buttons, etc. It is suitable for use in projects where you need to use it and in opening and closing operations. The product should be withdrawn. In other words, as long as you push the handle, the switch inside is affected, and when you release it, the handle returns to the center.

This product, which has IP65 protection, is resistant to dust and simple water splashes without pressure.

Technical Specifications:

The arm returns to the center when released.

Operating Temperature: -20°C -65°C

Protection Class: IP65 dust and non-pressurized water protection.

Operating Life: 200.000

Micro Switch Contact Capacities: 250VAC/5A

Button Switch Contact Capacity (If Pushbutton Model): 50VDC/0.1A

Arm Length: 31mm

Arm Width: 17.70mm

Micro Switch Connection Diagram
