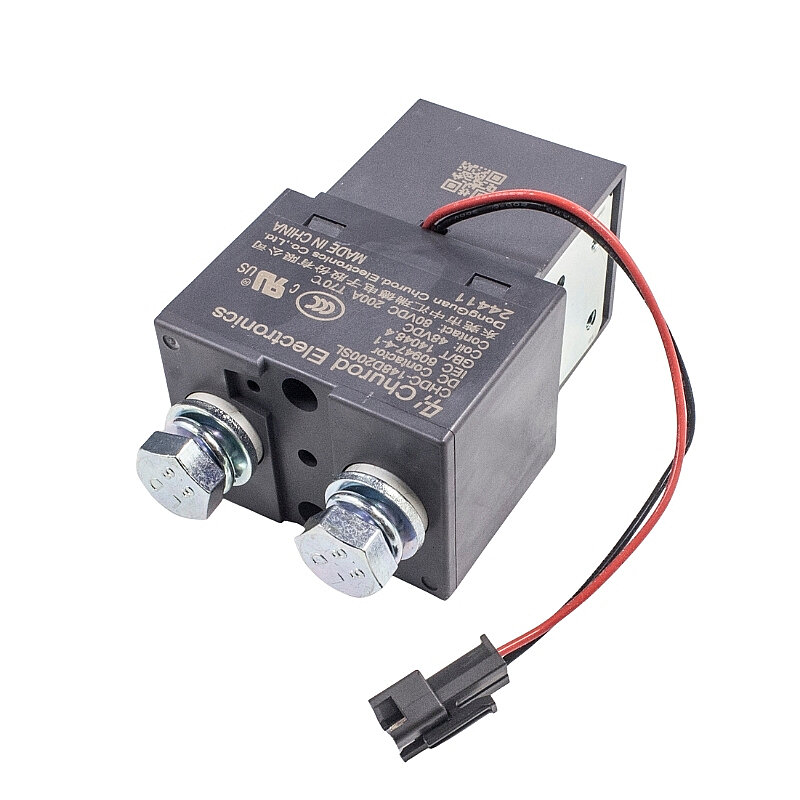

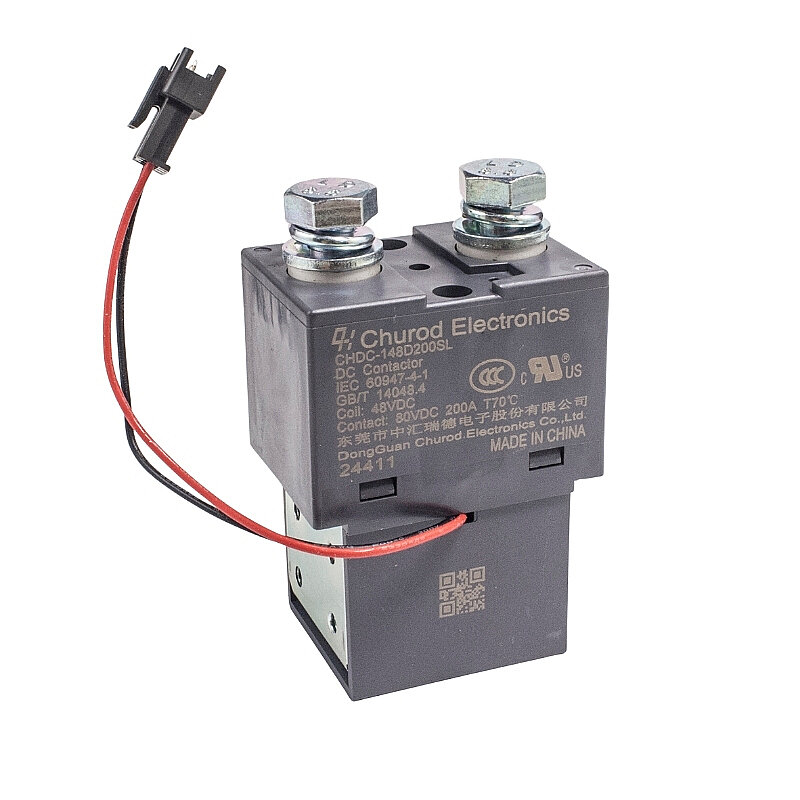

CHDC-148D200SL 48VDC 200A DC Contactor
The CHDC-148D200SL 48VDC 200A DC Contactor is a 200A DC magnetic-hold contactor designed for safely switching loads on and off in high-current DC power systems. It is specifically developed for use in batteries, electric vehicles, forklifts, UPS systems, telecommunications, and high-power DC control systems. The document states that the contactor has a maximum switching capacity of 200A and a maximum switching power of 9600W.
Specifications
- Nominal Current 200A
- Nominal Coil Voltages 48V
- Contact Type 1 Pole, Bridge Type
- Max. Switching Current 200A Max. Switching Power 9600W Contact Material Ag Alloy Initial Contact Resistance ≤0.7mΩ Insulation Resistance ≥2MΩ @ 500V DC Max. Switching Voltage 100V DC Mechanical Life ≥100,000 operations, no load Electrical Life ≥6,000 operations, resistive load Operating Time ≤30ms Discharge Time ≤30ms Operating Temperature -40°C ~ +75°C Mounting M8 screw mounting Weight Approx. 286g
