DC 8-24V 10-9999RPM Tachometer / Speed ​​Meter + NJK-5002C NPN NO Hall Proximity Sensor

DC 8-24V 10-9999RPM Tachometer / Speed ​​Meter + NJK-5002C NPN NO Hall Proximity Sensor

The DC 8-24V 10-9999RPM Tachometer / Speed ​​Meter + NJK-5002C NPN NO Hall Proximity Sensor is a panel-mount electronic speed indicator designed to measure the rotational speed—in RPM (revolutions per minute)—of motors, fans, shafts, pumps, and other rotating systems.

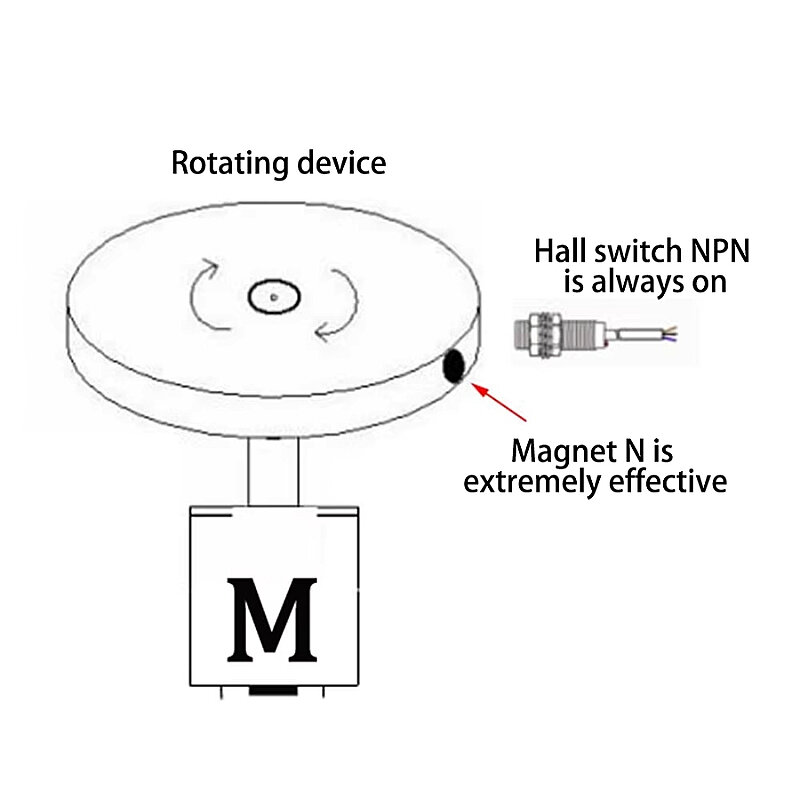

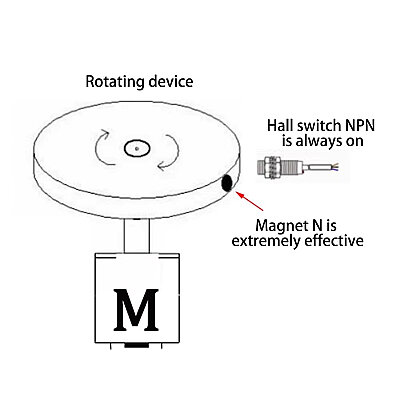

It operates in conjunction with an NPN-type Hall proximity sensor. Each time a magnet mounted on the rotating part passes in front of the sensor, a pulse is generated; the tachometer processes these pulses to calculate the rotational speed.

Thanks to the non-contact measurement principle, there is no need for a mechanical connection to the rotating shaft.

Specifications

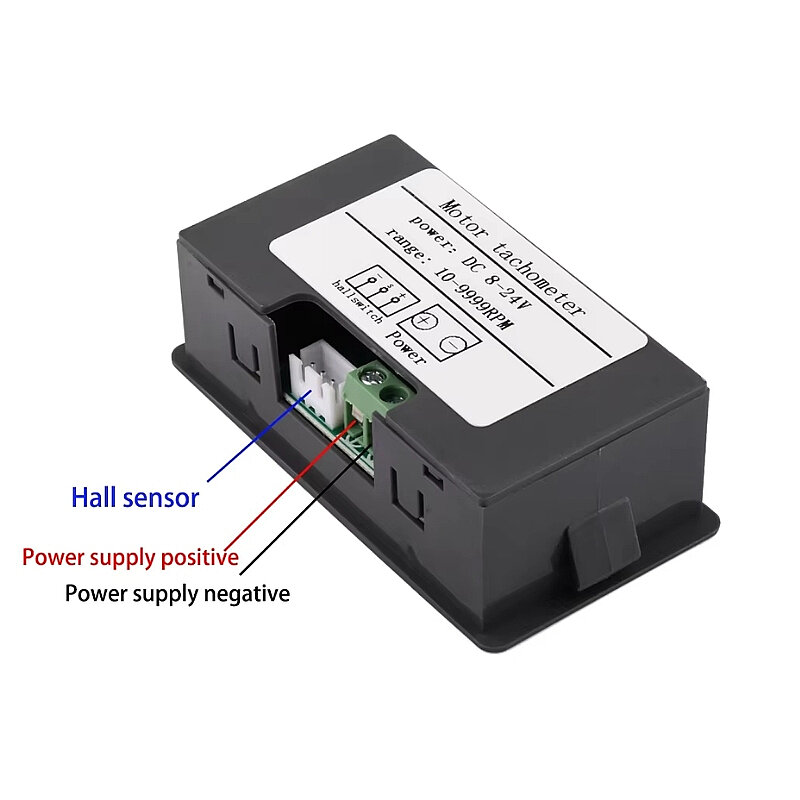

• Operating Voltage: 8-24V DC
• Operating Current: Approx. 40mA
• Measurement Range: 10-9999 RPM
• Display: 4-digit LED
• Display Size: 0.56 inch
• Measurement Unit: RPM (revolutions per minute)
• Sensor Type: Hall proximity sensor
• Sensor Output: NPN
• Sensor Contact Configuration: NPN NO (Normally Open)
• Measurement Method: Non-contact magnetic sensing
• Measurement Accuracy: Approx. ±0.1% + 1 digit
• Display Refresh Rate: >3 times per second

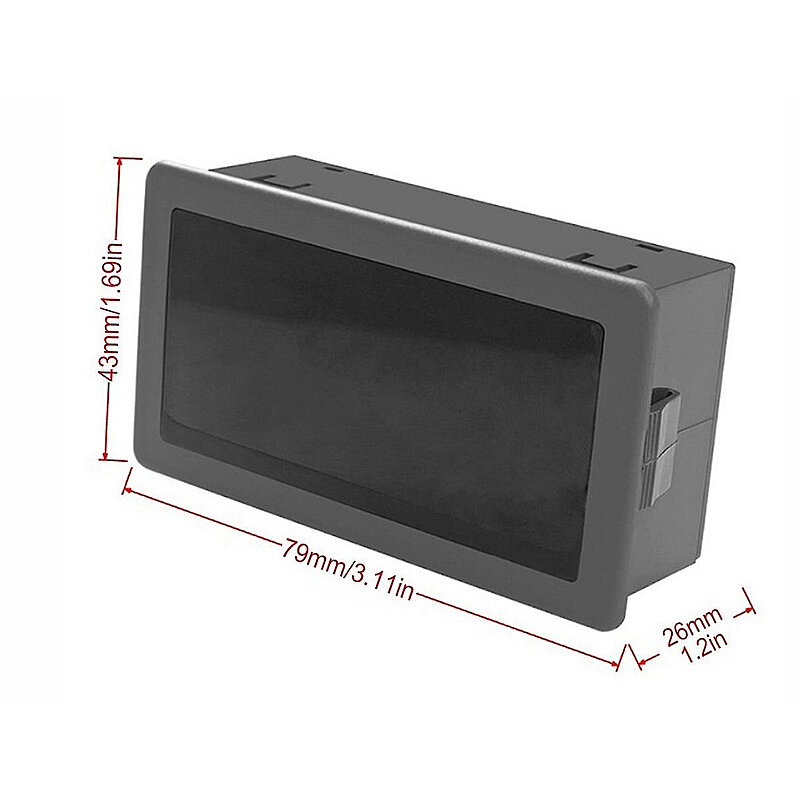

• Mounting Type: Panel mount
• External Sensor: NPN Hall sensor

Package Contents

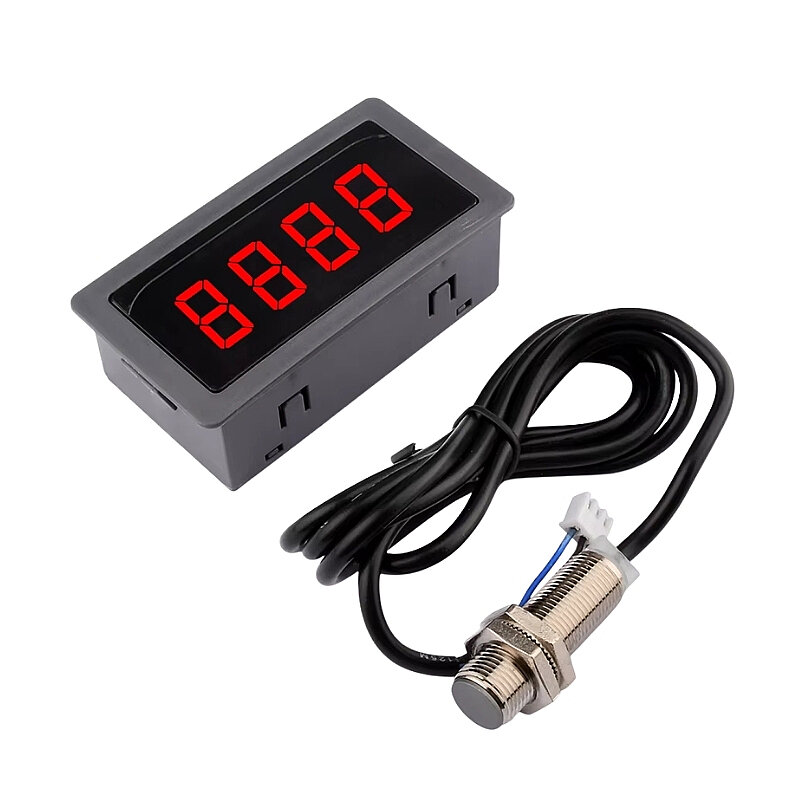

1 x LED Tachometer
1 x Hall Effect Proximity Sensor
1 x Round Magnet
