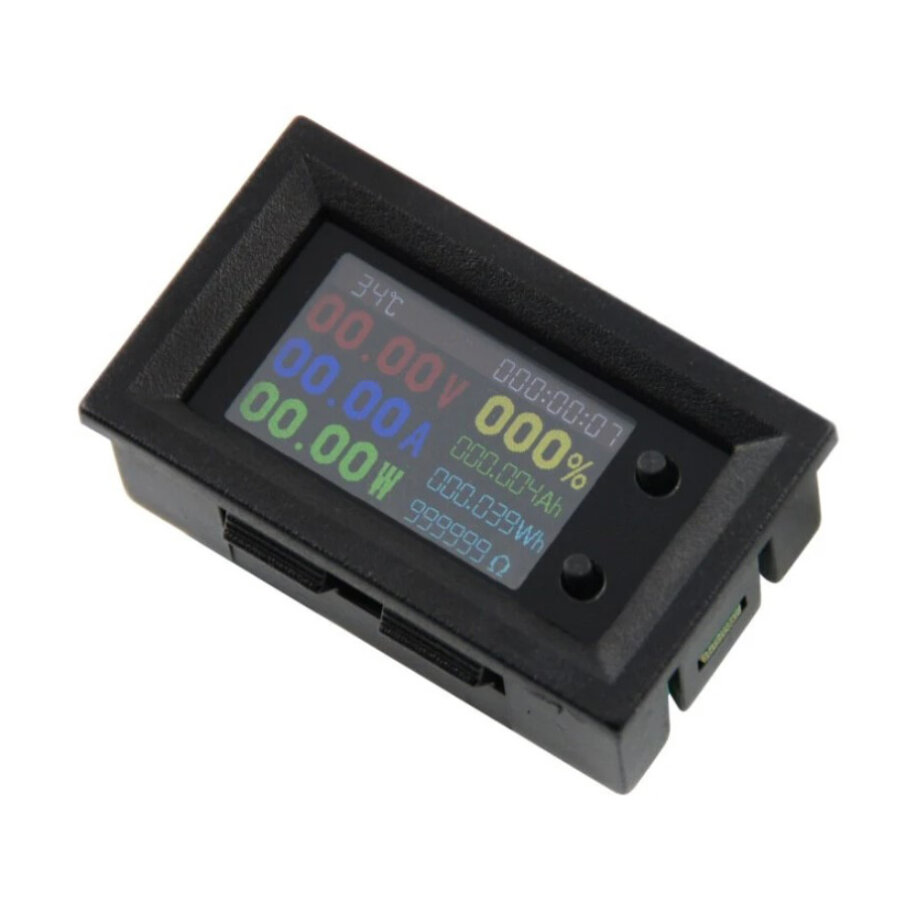

DC7200 7-200V 20A 9in1 Multifunction Digital Voltmeter Ammeter

DC7200 7-200V 20A 9in1 Multifunction Digital Voltmeter Ammeter

The DC7200 7-200V 20A 9in1 Multifunction Digital Voltmeter Ammeter is a professional digital measuring device designed to measure both voltage (volts) and current (amperes). It can operate with a supply in the 6-30 V range and supports current measurement up to 20 A. It is also an ideal solution for simultaneously monitoring multiple parameters such as voltage, current, power, energy, capacity, and operating time.

Applications

• Battery, battery systems, and energy storage monitoring

• Voltage/current control in DC power supply systems

• Electric vehicles or mobile energy applications

• Solar panel systems, inverter monitoring, and automation systems

• Ideal for laboratory and prototype development processes

Features

• Supply Voltage: 6-30VDC
• Voltage Measurement Range: 7-200VDC
• Current Measurement Range: 0-20A
• Power Measurement Range: 0-4000W
• Capacity Measurement Range: 0-9999.99Ah
• Energy Measurement Range: 0-9999.99Wh
• Temperature Measurement Range: 0~99°C
• Time Measurement Range: 0 ~ 999:59:59 (hours:minutes:seconds)
• Data Reset
• No-Load Reset
• Voltage Fine Tuning
• Current Fine Tuning setting
• Size: 47.5×28.7×25.3mm
