DH-24-C03SX-03-401 3-Pin Waterproof Connector - Male
Product code :
KOM.KNN.05.000480
404,20
TL
+
VAT
485,04
TL
Notify Me When It Arrives
404,20
TL
+
VAT
485,04
TL
Add to Favorite
10+
RecommendCommentAlarm Price

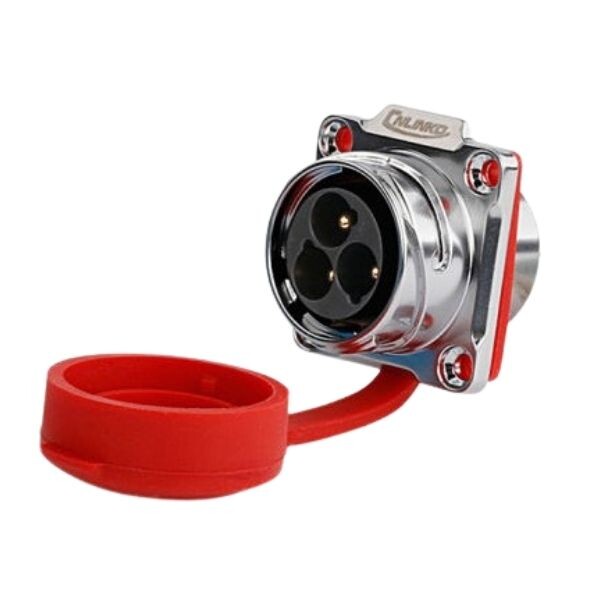

DH-24-C03SX-03-401 3-Pin Waterproof Connector - Male
The DH-24 series waterproof connectors, with their unique wave spring design, standard card slot, rotary locking type, and fashionable design to meet customer demands, are widely used in LED displays, industrial equipment, stage lighting equipment, and other fields.
DH-24-J03PE-03-001 3-Pin Waterproof Connector - Female is compatible.
CNLINKO products can be custom made with wired production upon request. This is available for bulk special orders. For custom requests, you can email info@motorobit.com.
Technical Specifications
- High temperature and pressure resistance
- IP65/67 rating when connected
- Pin Count: 3
- Pin Diameter - 3 mm
- Cable Connection - 12-14 AWG
- Rated Current - 25 Amperes
- Operating Voltage - 500V AC
- Contact Resistance - <500mOhm
- Withstand Voltage - 2500V
- Ingress Protection - IP65/67
- Operating Temperature - -40°C to 80°C
- Body Material - High Performance Plastic
- Flammability Rating - UL94-V0
DH24 Waterproof Connector Datasheet
