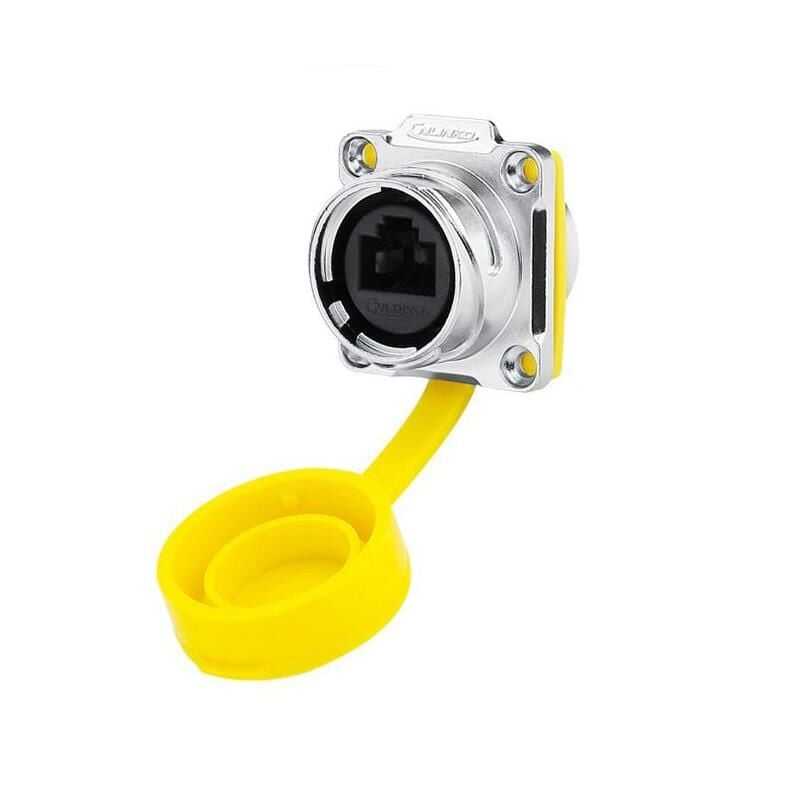

DH-24-J/RJ45/213/SX-43-401 Waterproof Ethernet Connector - Female

RJ45 series connectors It features multi-style connection modes such as 1/4 bayonet connection and quick unplug for harsh environments. These connectors have a protection system with high-frequency noise immunity and electromagnetic interference protection, and the protection level is IP65 waterproof and dustproof. Compliance with EIA568B and level D of ISO/IEC11801 or CAT 3e standard, CAT5e compatible RJ45 connectors, data transfer rate reaches 10 GBit/s.

A fast and secure It is RJ45 cable plug protection suitable for data connection. Simple slot for attached RJ45 cable (RJ45 cable not included).

DH-24-C/RJ45/015/PE-43-001 Waterproof Ethernet Connector - Male.

Technical Specifications

High temperature and pressure resistance

IP65/67 rating when connected

Connector Type: RJ45
Cable Connection - 24-26 AWG
Rated Current - 1.5 Amperes
Operating Voltage - 42V
Contact Resistance - <30mOhm
Withstand Voltage - 1000V
Ingress Protection - IP65/67
Operating Temperature - -40 C - 80 C
Body Material - High Performance Plastic

DH24 Waterproof Connector Datasheet
