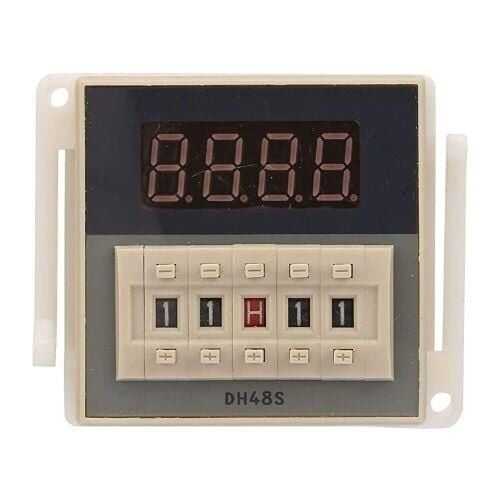

DH48S-2Z 24V Timer Relay Module - Dual Output

DH48S-2Z 24V Timer Relay Module - Dual Output.DH48S-2Z with Digital Display 24V It is a timed relay module capable of operating AC or DC switching. It is a circular delay type time relay, it opens and closes the circuit according to the preset cycle.

Circular Delay:

Cycically applying the preset on-off time for the time relay when power is applied.

Technical Specifications

Operating Voltage: 24V DC
Operating Mode: Circular Delay
Repetition Error: <1%
Number of Contacts: 2
Contact Capacity: 220V AC 5A / 30V DC 5A
Operating Temperature Range: -5 ~ 45°C
Electronic Life: >10⁵
Mechanical Life: >10⁸
Dimensions: 105x58x48mm

Time Adjustment

DH48S-2Z 24V Timed Relay Module - Dual Output

DH48S-2Z 24V Timer Relay Module - Dual Output

Technical Specifications

Time Adjustment

Wiring Diagram
