DPS-3003 30V 3A Programmable Power Supply

DPS-3003 is a programmable power supply that can output up to 3A adjustable between 0-30V. Voltage can be adjusted with 0.01V precision, and current can be adjusted with 0.001A precision.

Technical Specifications:

Input Voltage: 6.00-40.00V
Voltage Output: 0V-32.00V
Current Output: 0-3.000A
Output Power: 0-96W

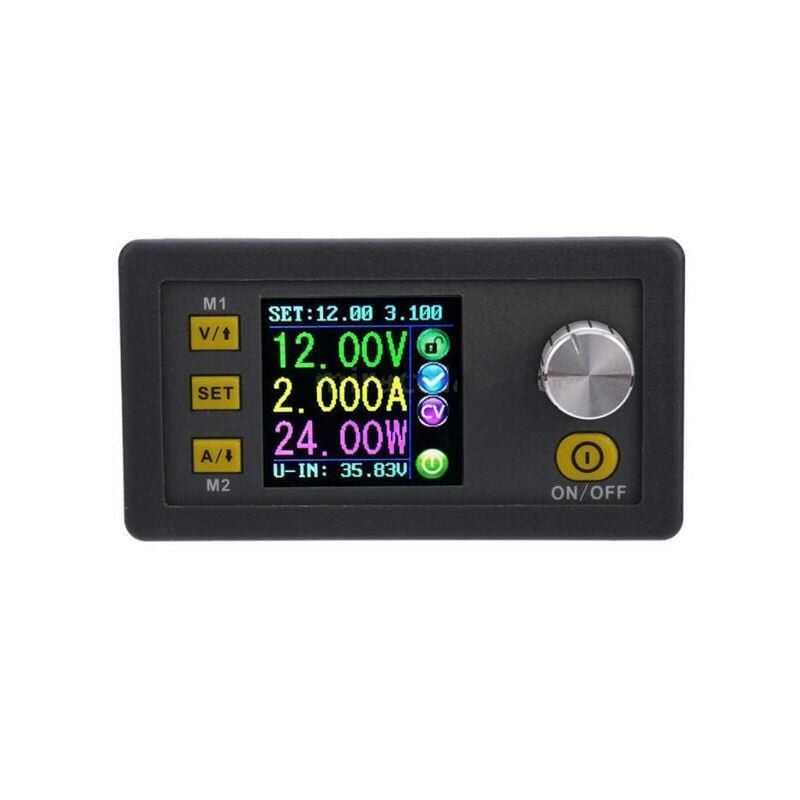

Panel Information

DPS-3003 30V 3A Programlanabilir Güç Kaynağı

1-voltage setting/shortcut to select page/extract M1 data group

2-data setting/extract value of specified data group/store value to specified data group< /div>

3-current setting/page down/shortcut extract to select M2 data group

4-1.44 inch color LCD screen

5-coding potentiometer/data setting /lock all buttons

6-output on or off

DPS-3003 30V 3A Programmable Power Supply

7-preset value of output voltage

8-actual value of output voltage

9-actual value of output current

10-actual value of output power

11-actual value of input voltage

12-preset value of output current

13-key lock or unlock

14-output normal or not fast

15-constant voltage and constant current status prompt

16-data set prompt

17-turn on or off output prompt

18-preset output voltage

19-preset output current

20 -preset overvoltage

21-preset overcurrent

22-preset overpower

23-preset display brightness

24 preset data sets

25-actual value of output voltage and output current
