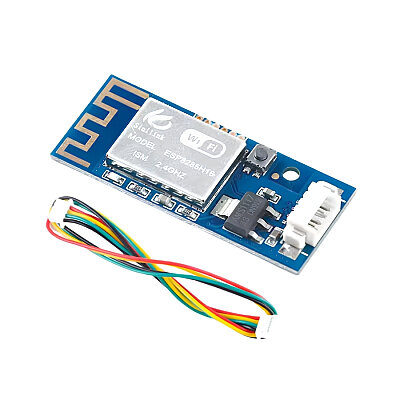

XY-WFPOW WiFi Module - Compatible with XY-SK Series Power Supply Modules
The XY-WFPOW WiFi Module is a compact UART-WiFi communication module designed to add wireless communication capabilities to Sinilink digital power supply and DC-DC converter modules. You can find compatible power supply modules here.

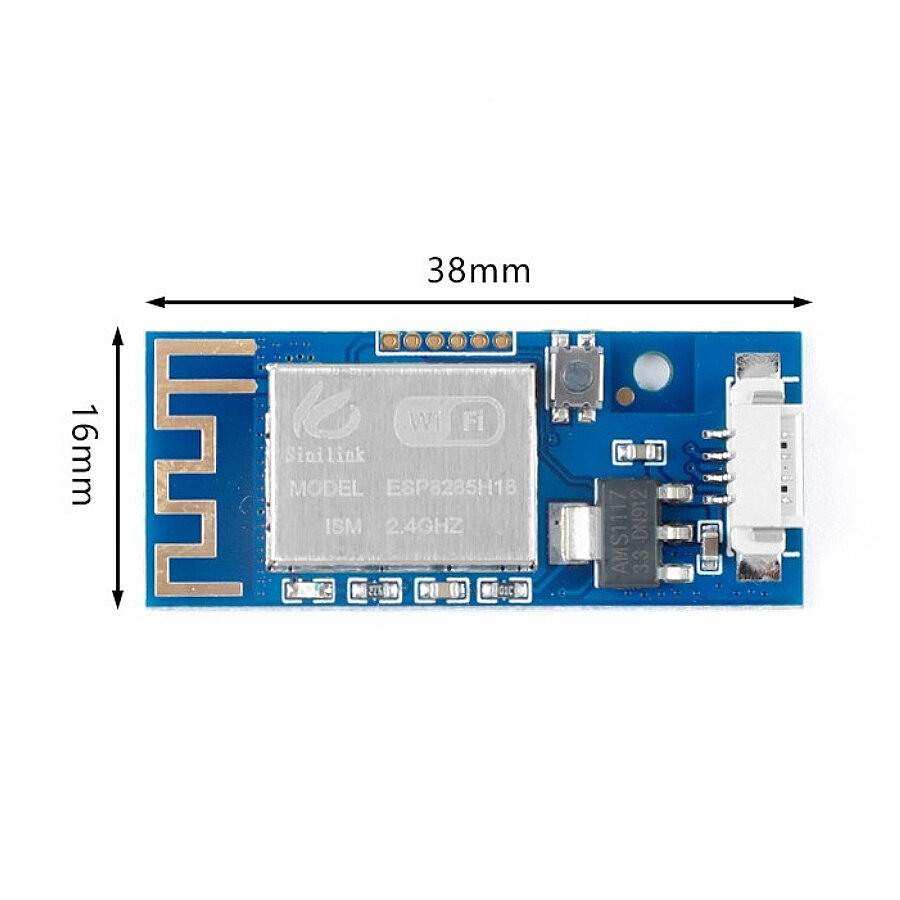

The module features an ESP8285H16 WiFi controller. Communication with the main power supply unit is established via UART serial communication. The 4-pin connection interface on the board consists of DC 5V, RXD, TXD, and GND lines.
Specifications
- WiFi Controller: ESP8285H16
- WiFi Band: 2.4GHz
- 5GHz WiFi: Not supported
- Host Device Communication: UART
- Communication Lines: RXD / TXD
- Protocol: Modbus-based serial communication on compatible Sinilink devices
- Supply Voltage: DC 5V
- Recommended Minimum Supply Capacity: At least 300mA
- Connection Pins: 5V / RXD / TXD / GND
- Main Connection: 4-pin socket
- Connection Cable: 4-core cable
- WiFi Pairing: Touch Pair / AP Pair
- Pairing Button: Yes
- WiFi Status LED: Yes
- Mobile Control: Yes
- Android Support: Yes
- iOS Support: Yes
- PC Control: Yes
- Sinilink Cloud: Supported
- Real-time Communication via LAN: Yes
- Remote Control via Internet: Supported
