ZK-BT Bluetooth Module - Compatible with ZK-SK Series Power Supply Modules

ZK-BT Bluetooth Module - Compatible with ZK-SK Series Power Supply Modules

The ZK-BT Bluetooth Module is a compact Bluetooth-UART communication module designed to enable wireless mobile app connectivity for WUZHI digital power supply and control boards. You can find compatible modules here.

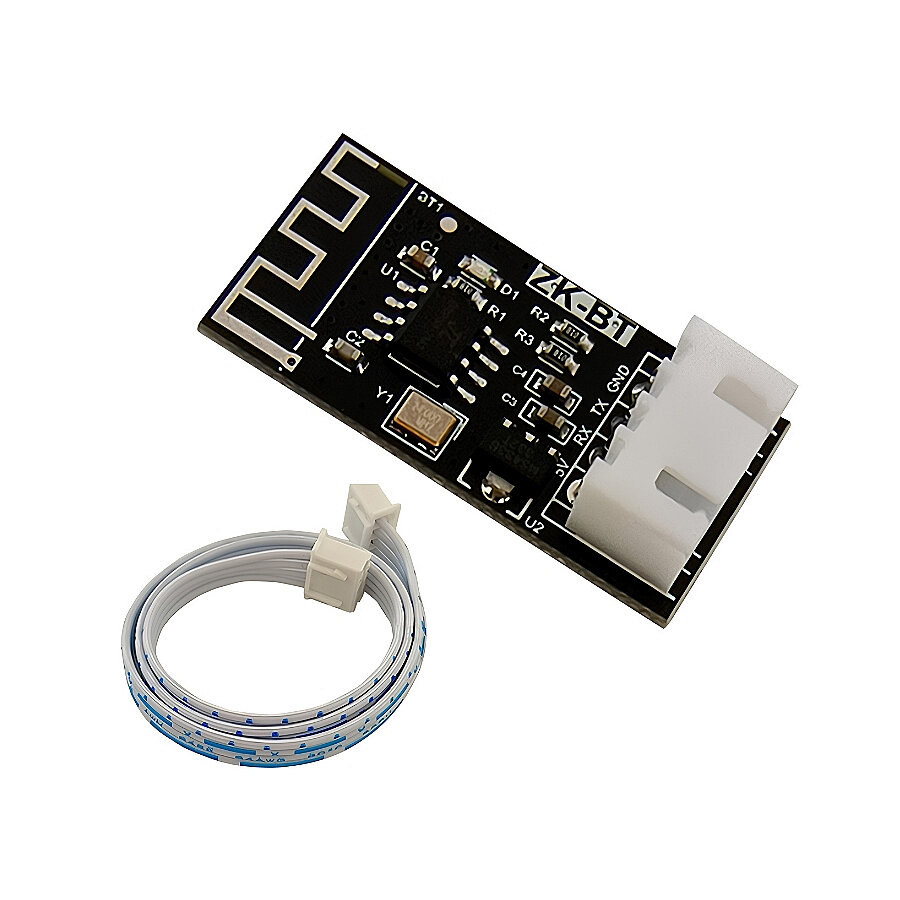

The module connects to the 4-pin serial communication port on the main device. It draws the necessary power from the compatible power supply while communicating with the main device via TX/RX serial data lines. This allows the power supply's operating data to be transmitted to a mobile phone via Bluetooth and enables control of supported parameters through the application.

The "Wuzhi Zhilian" (Wuzhi Link) application is used on the phone. After connecting the ZK-BT to the main device and enabling Bluetooth on the phone, use the "Add Device" option within the application; Compatible power supplies can be found and connected to in the app by searching for the name "Wuzhi Power".

Specifications

• Model: ZK-BT
• Product Type: Bluetooth transparent serial communication module
• Core Function: Bridging UART/TTL serial communication to a mobile app via Bluetooth
• Connection Type: 4-pin serial communication
• Serial Communication: UART / TTL
• Connection Lines: +5V / TX / RX / GND
• Powered by Host Device: Yes
• Mobile App: Wuzhi Zhilian / Wuzhi Link
