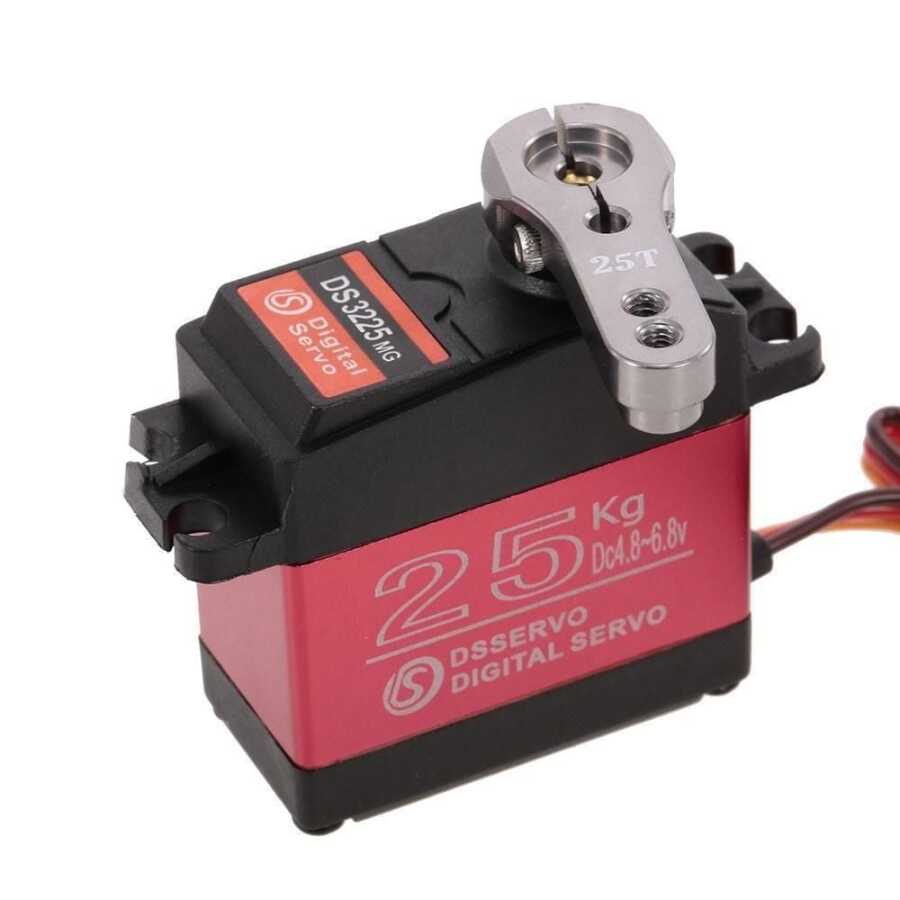

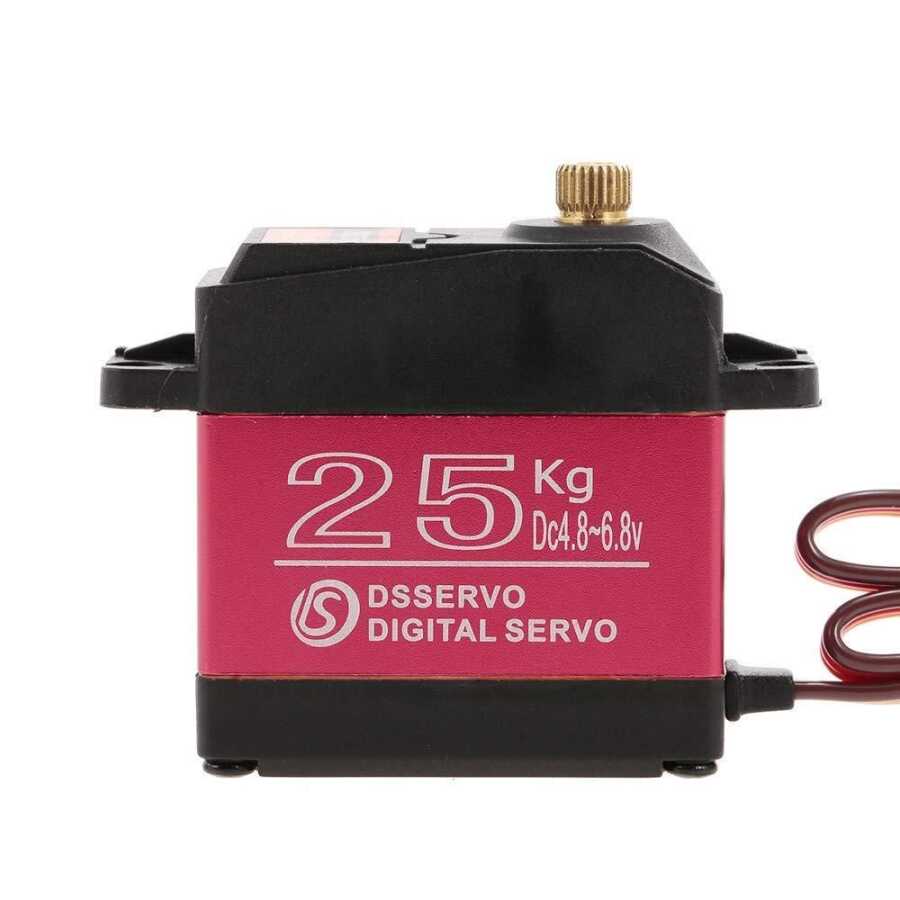

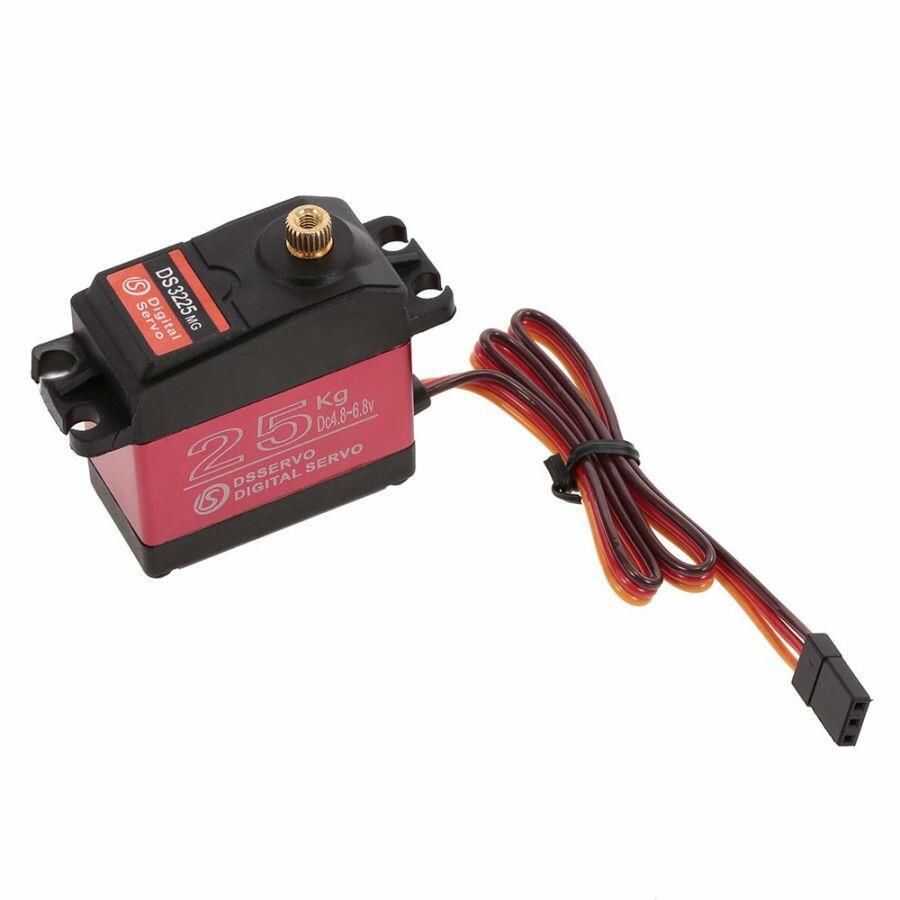

DS3225 25KG Waterproof Digital Servo Motor 180°
DS3225 is a digital servo motor with high torque and waterproof feature. It has a 180 degree movement capacity. Its 25kg-cm torque value, high precision and being waterproof are the main reasons for its preference. You can use it with peace of mind in various robotic and electronic projects.
DS3225 Technical Specifications:
- Brand: DSSERVO
< LI>Model: DS3225- Operating Voltage: 4.8V ~ 6.8Volt
- Operating Speed (5V): 0.16sec / 60°, no-load
- Operating Speed ( 6.8V): 0.14sec / 60 ° no load
- Stoll Torque(5.0V): 21kg / cm
- Stop Torque(6.8 V): 25 kg / cm< /LI>
- Operating Frequency: 1520μs / 333hz
- Weight: 67g
- Dimension: 40.5 * 40 * 20mm
