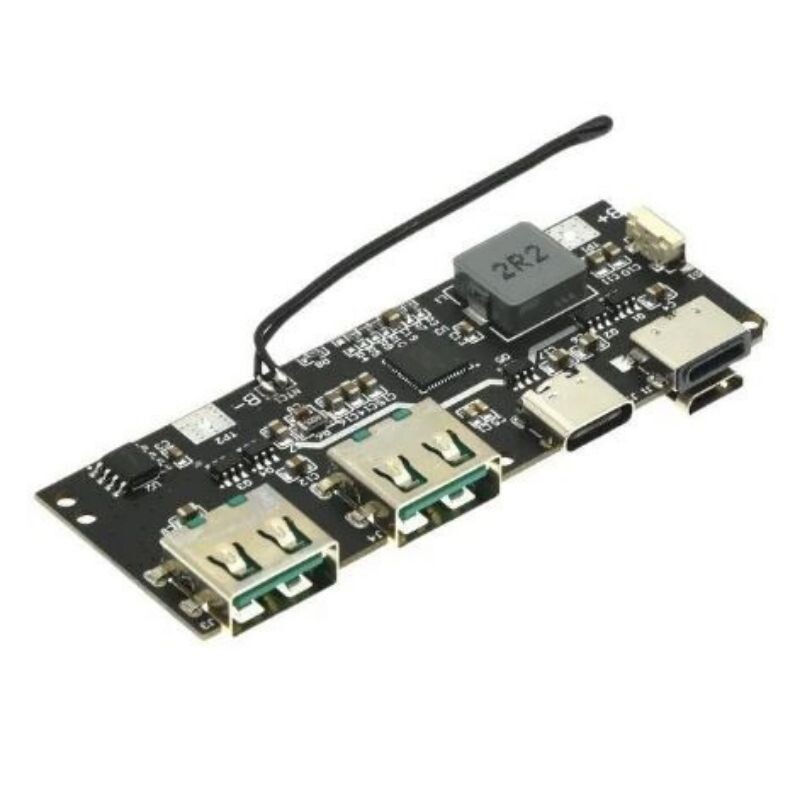

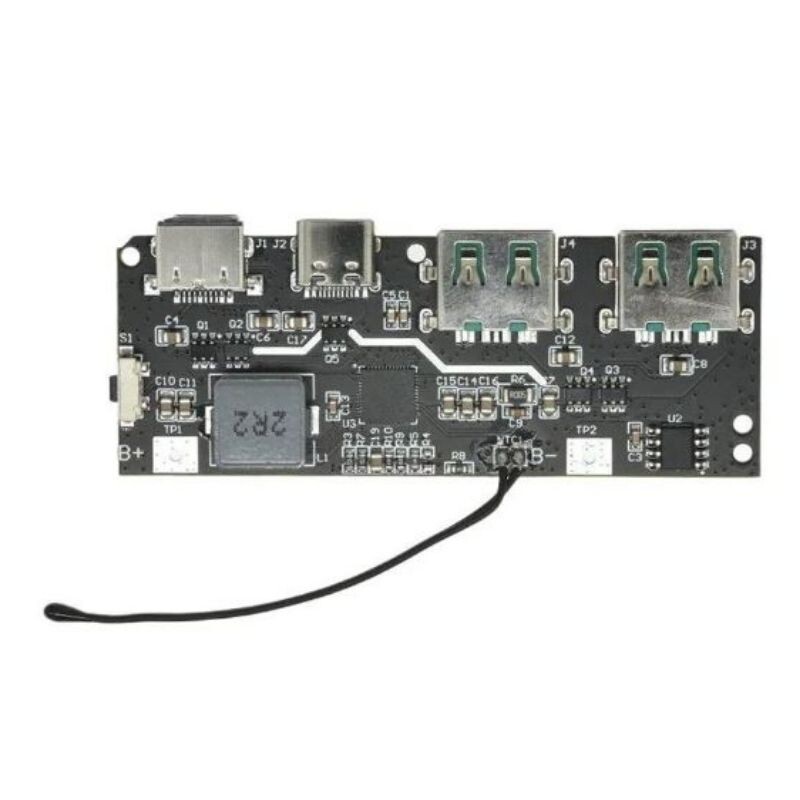

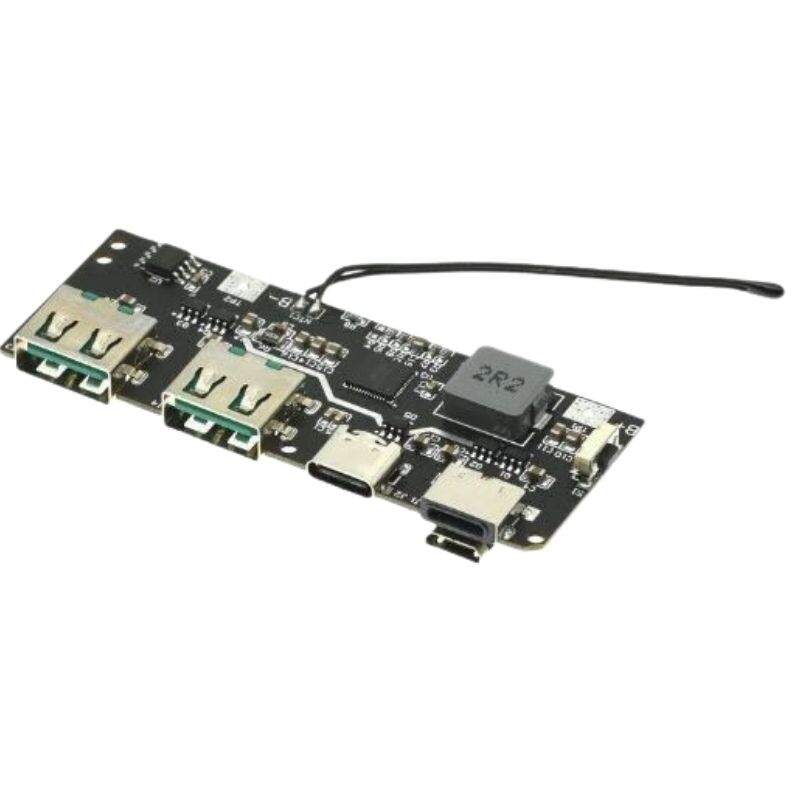

Dual USB 5V 22.5W Micro Type-C Powerbank Module with LEDs

Dual USB 5V 22.5W Micro Type-C Powerbank Module with LEDs

Dual USB 5V 22.5W Micro Type-C Powerbank Module with LEDs, This power supply module with 5 ports and fast charging support is perfect for DIY powerbank. It has short circuit protection, overcharge protection and overdischarge protection. It supports PD/QC/AFC fast charging protocols. It has dual USB outputs. There is an NTC thermistor on it. In this way, the circuit protects itself according to the temperature condition. There is a button for LED power indicator when in charging state.

The capacity of the module is maximum 20,000mAh. It does not support higher capacities.

Features

• Connection Type: Micro USB, Lightning
• Input Voltage: 3.7 - 4.2V (B+, B-)
• Output Type: Dual USB Type-A, Type-C
• Supported Fast Charging Protocols: QC3.0 / QC2.0 AFC/FCP/SCP/PE2.0 / PE1.1 / SFCP/VOOC
  • Type-C Port Supports:PPS/PD3.0 PD2.0 / QC4 + / QC3.0 / QC2.0 AFC/FCP/SCP/PE2.0 / PE1.1 SFCP quick charge output, support PD3.0 PD2.0
• Output Power: 22.5W
• Capacity: Max 20,000 mAh
• Size: 72x28x6mm
