RL-BI003 48V Battery Voltage Capacity Indicator - Panel Type

RL-BI003 48V Battery Voltage Capacity Indicator -  Panel Type

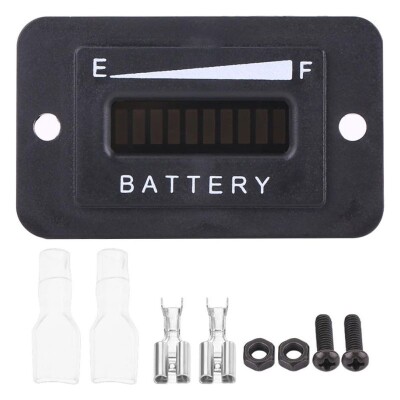

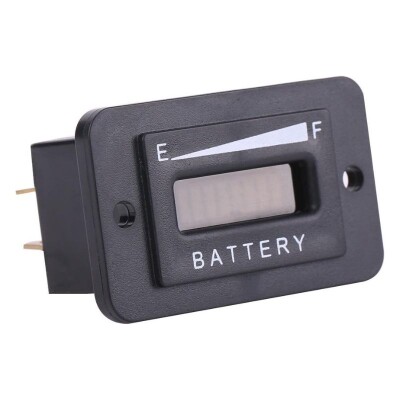

RL-BI003 48V Battery Voltage Capacity Indicator -  Panel Type, 48V battery, lithium battery etc. It is a voltage capacity indicator that you can use to view the voltage capacity of your batteries. You can mount it on the panel with the equipment that comes with the product. It is small in size and easy to use.

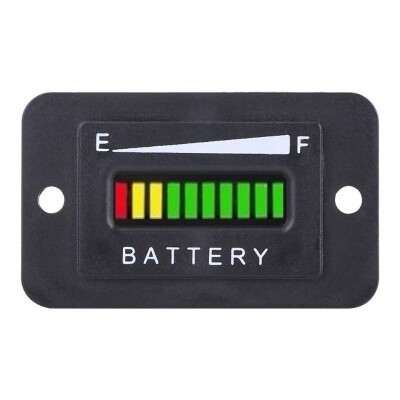

There are 10 LED bars to show the capacity. The status of LED bars according to 48V capacity is as follows.

• 1 Bar Led: Battery Voltage 41.52V
• 2 Bar Led: Battery Voltage 42.36V
• 3 Bar Led: Battery Voltage 43.2V
• 4 Bar Led: Battery Voltage 44.04V
• 5 Bar Led: Battery Voltage 44.88V
• 6 Bar Led: Battery Voltage 45.72V
• 10 Bar Led: Battery Voltage >49.2V

• Led Bar: 1 Red, 2 Yellow, 7 Green
• Voltage Capacity : 48VDC
• Operating Current: 20mA nominal
• Tolerance: ± 0.5%
• Operating Temperature Range: -20 ~ 85°C
• Dimension: 53x32x38.5mm
• Between Mounting Holes Distance: 42mm
• Mounting Hole Size: 3.7mm
