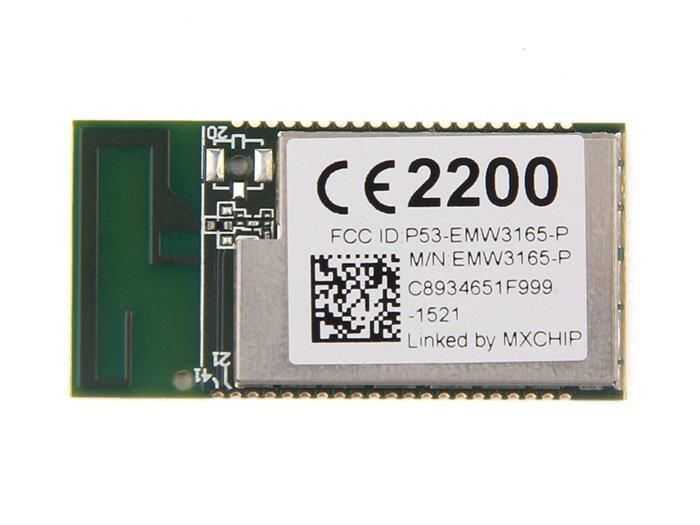

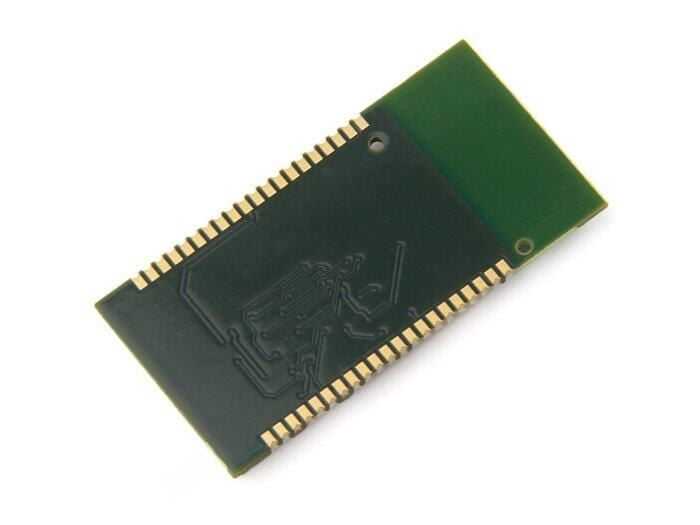

EMW3165 Cortex-M4 based WiFi SoC Module

EMW3165 is a low-power embedded Wi-Fi module that integrates wireless LAN MAC/baseband/radio and a Cortex-M4 microprocessor STM32F411CE. A unique proprietary Wi-Fi networking library and software application are available.

EMW3165 features a 512K byte chip, 128K byte RAM and user embedded Wi-Fi applications

EMW3165 is also a MiCO platform, MiCO manages all Wi-Fi MAC and TCP/IP stack operations for users. They can create their own embedded Wi-Fi applications based on the library. It also has an independent serial firmware to meet typical applications: Wireless UART, Cloud Service, etc.

Features:

Cortex-M4 microcontroller and IEEE 802.1™ b/g/n chip
Cortex-M4 core at 100MHz
2M bytes onboard flash and 512K bytes onboard flash
128 KB bytes RAM
Operating voltage: 3.0V ~ 3.6V

Peripherals

22 GPIO
JTAG / SWD debug interface

Wi-Fi connection

802.11b, 802.11g, 802.11n (single stream)
WEP , WPA / WPA2 PSK / Enterprise
16.5dBm@11b, 14.5dBm@11g 13.5dBm@11n
Receiver Sensitivity: -87 dBm
Station, Soft AP and Wi-Fi direct
EasyLink Support
Onboard PCB antenna, IPEX connector for external antenna

Application Areas

Building Automation / Access Control
Smart home appliances
Medicine / Health
Industrial Automation Systems
Point of Sale System (POS)
Automated electronics
