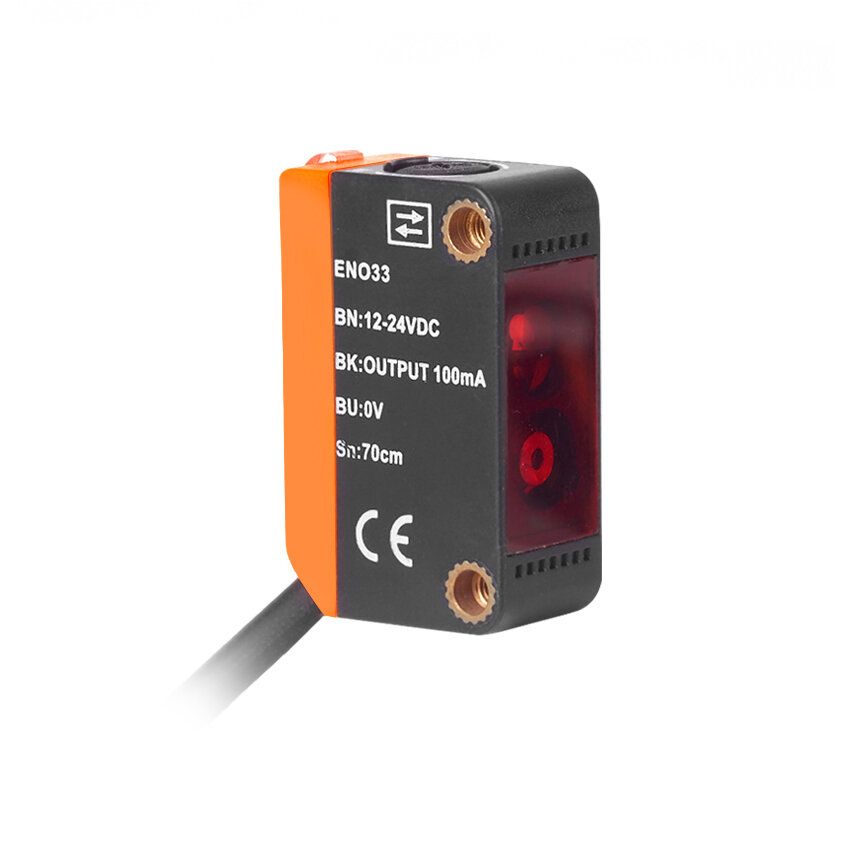

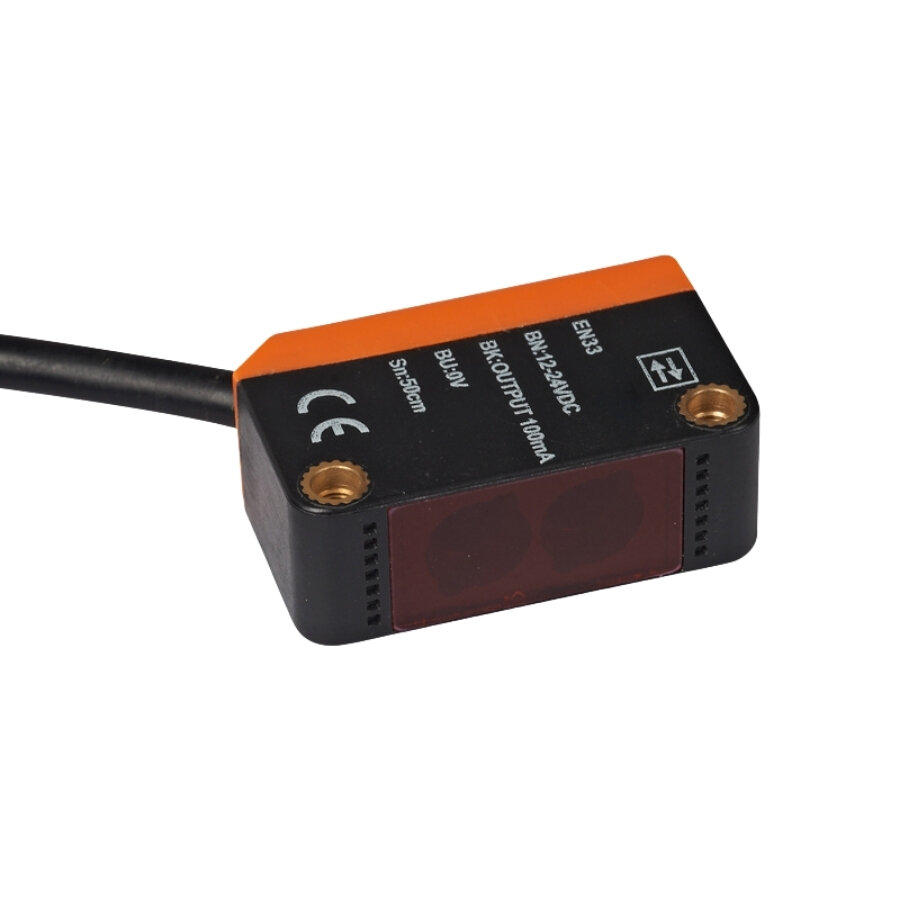

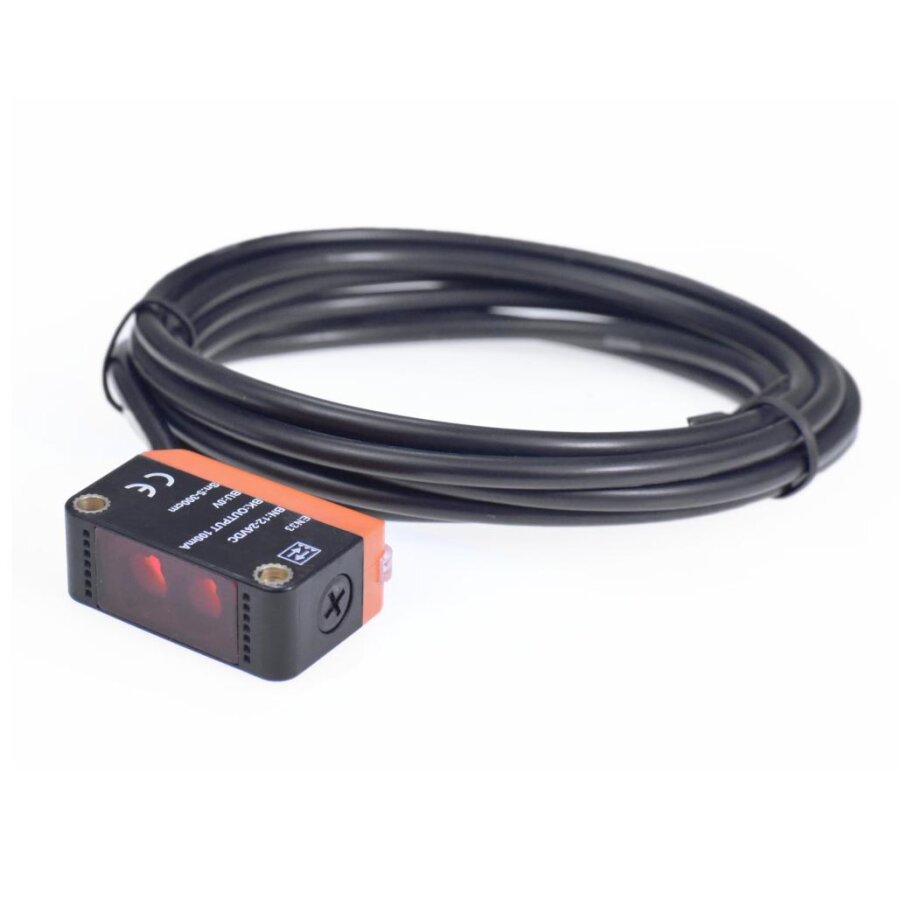

EN33-D1E1000NA 1000cm NPN NO Through-beam Photoelectric Sensor

EN33-D1E1000NA 1000cm NPN NO Through-beam Photoelectric Sensor

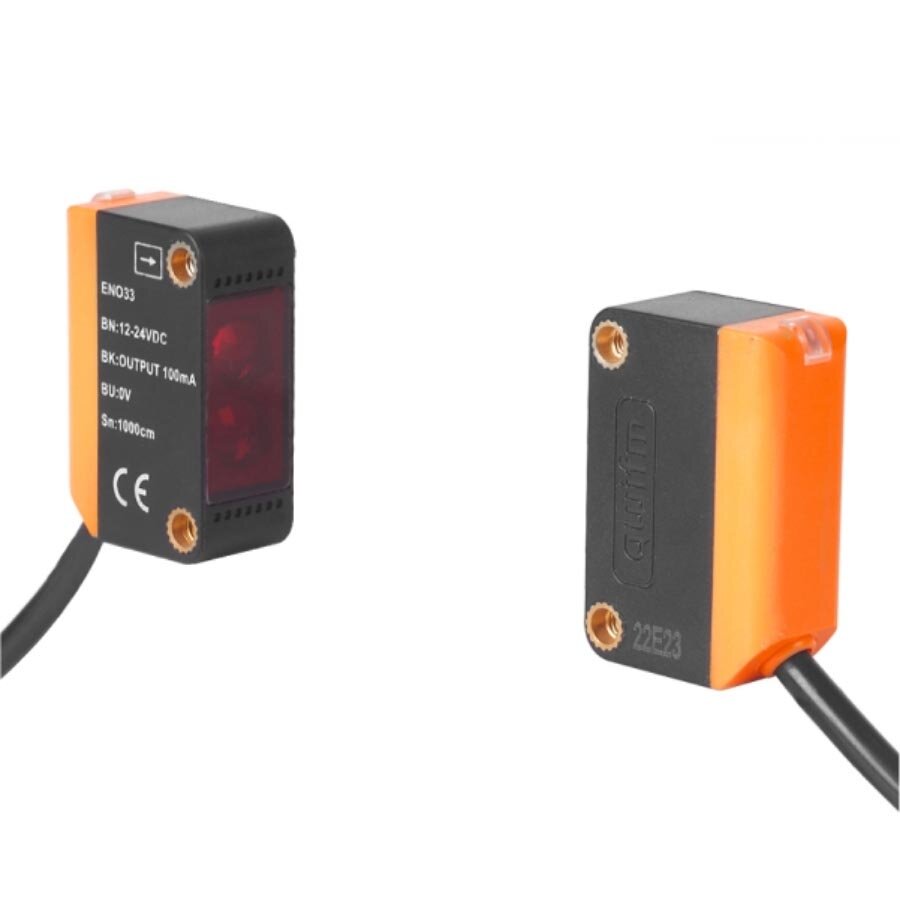

EN33-D1E1000NA 1000cm NPN NO Through-beam Photoelectric Sensor,These sensors operate on the principle that a light wave from a laser sent by the transmitter sensor is detected by the receiver sensor. Application areas for such sensors include, for example, creating protective zones around operating machines or detecting production elements far from the sensor.

Application Areas

• Monitoring Production Lines: Detecting the presence or absence of products or elements, controlling the flow of goods.
• Object Counting: Precise counting of parts on conveyor belts or in packaging processes.
• Position Detection: Precise determination of the position of an element or tool.

Datasheet

Features

• Sensor Type: Opposite
• Response Time: 1ms
• Supply Voltage: 12-24VDC
• Sensing Distance: 1000cm
• Operating Mode: NPN NO
• Product Standard: GB/T14048.10-2016
• Protection: IP64
• Ambient Illumination:
  • Lamp: Less than 3000LUS
  • Sunlight: Less than 11000LUS
• Operating Temperature: -25° ~ 55°C

Link

Size
