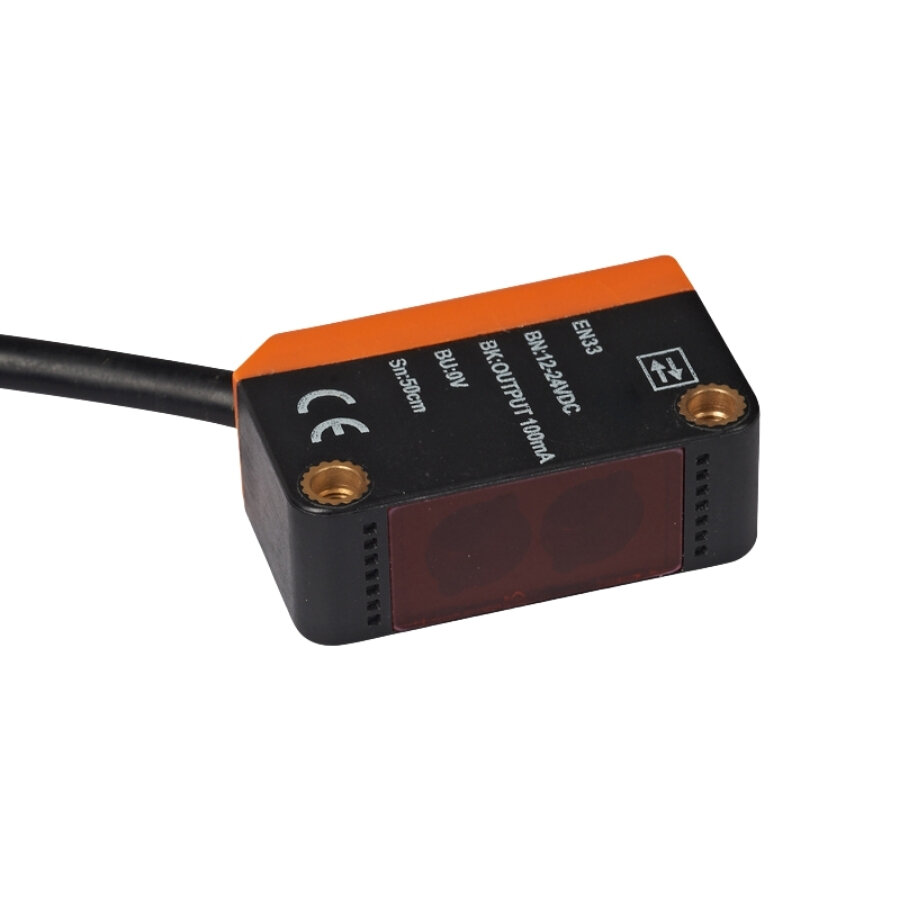

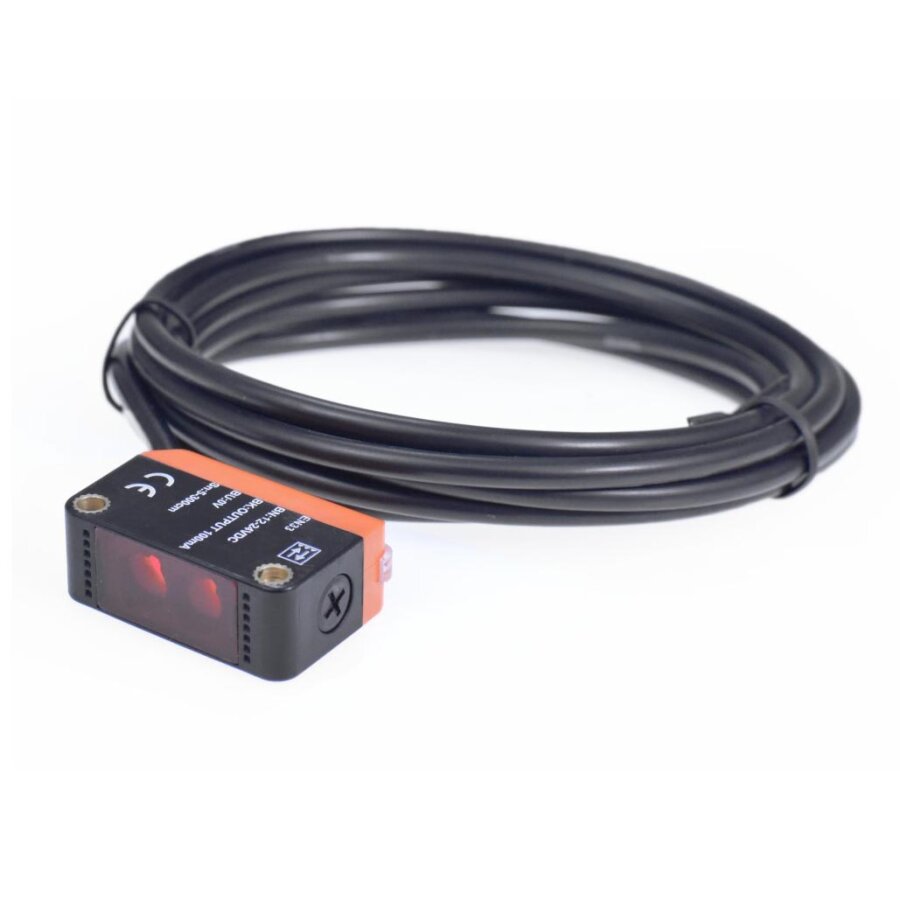

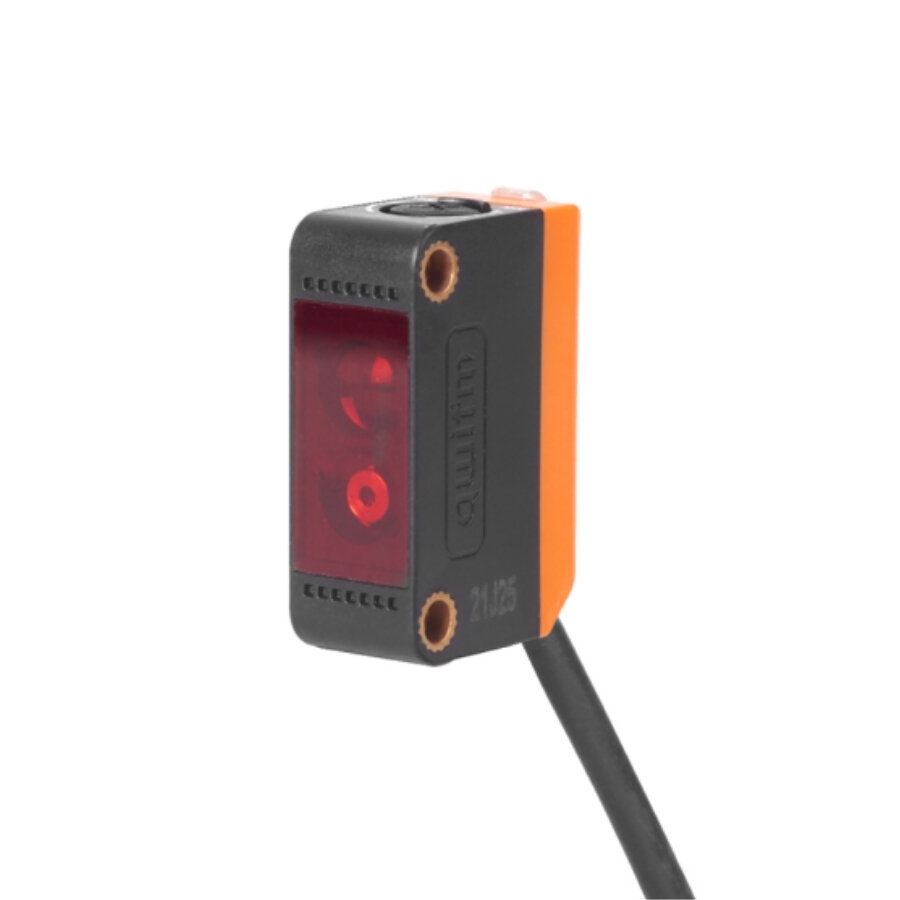

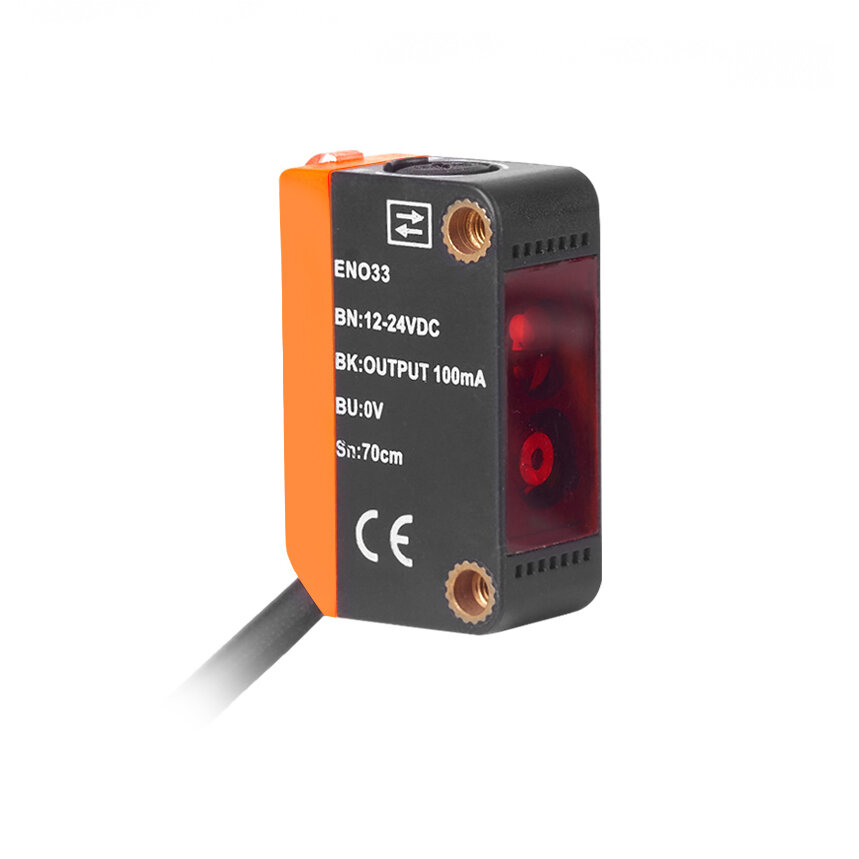

ENO33-D1T70PA 70cm PNP NO Diffuse Reflection Laser Sensor

ENO33-D1T70PA 70cm PNP NO Diffuse Reflection Laser Sensor

The ENO33-D1T70PA 70cm PNP NO Diffuse Reflection Laser Sensor operates on the principle that a light wave from a laser sent by a transmitter is reflected and detected by a detector placed in the same housing. Applications for such sensors include, for example, creating protective zones around operating machines or detecting production elements far from the sensor.

Application Areas

• Monitoring Production Lines: Detecting the presence or absence of products or elements, controlling the flow of goods.
• Object Counting: Precise counting of parts on conveyor belts or in packaging processes.
• Position Detection: Precise determination of the position of an element or tool.

Features

• Sensor Type: Diffuse Reflection
• Response Time: 0.5ms
• Supply Voltage: 12-24VDC
• Sensing Distance: 70cm
• Light Source: Red laser (Wavelength 650nm)
• Operating Mode: PNP NO
• Product Standard: GB/T14048.10-2016
• Protection: IP65
• Ambient Illumination:
  • Lamp: Less than 3000LUS
  • Sunlight: Less than 11000LUS
• Operating Temperature: -25° ~ 55°C
