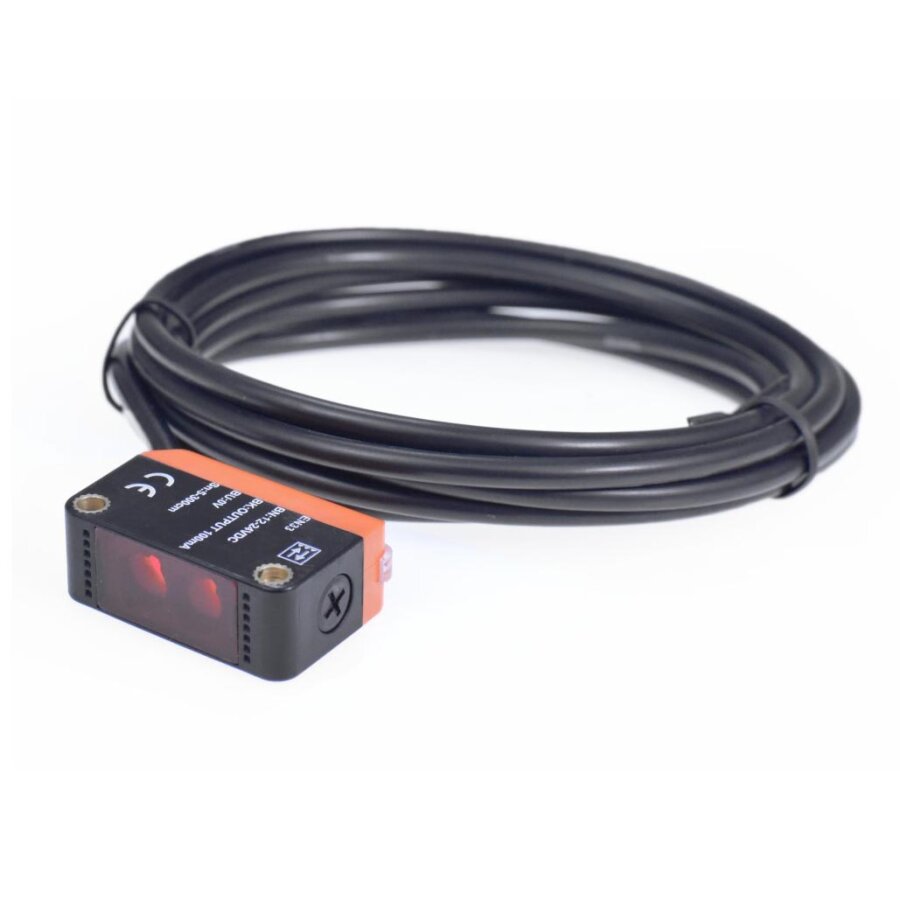

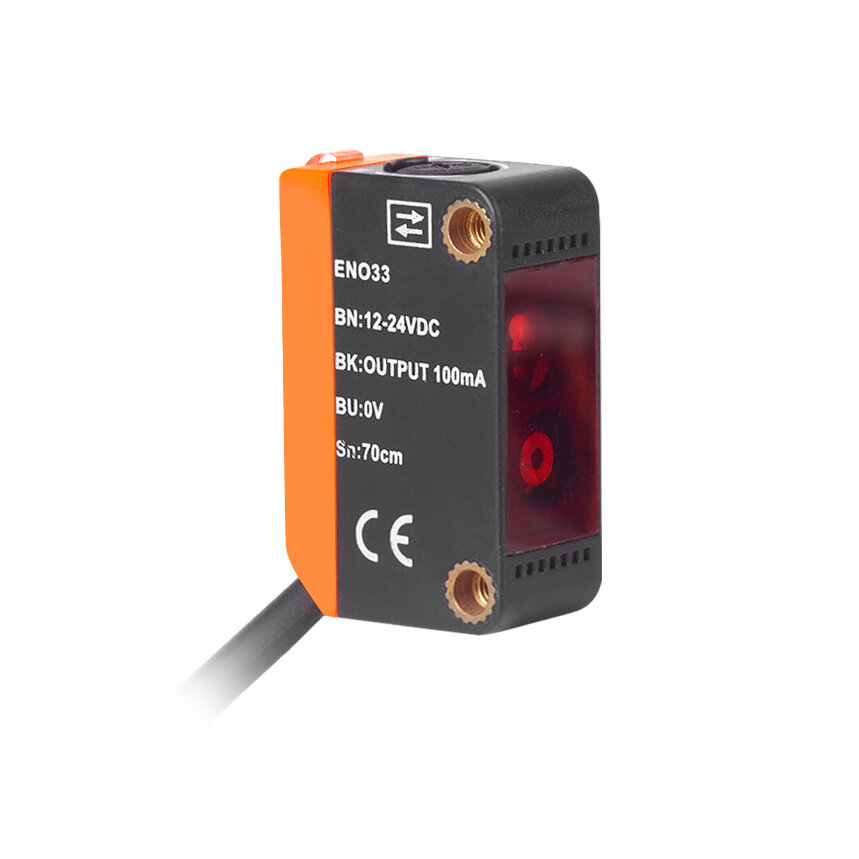

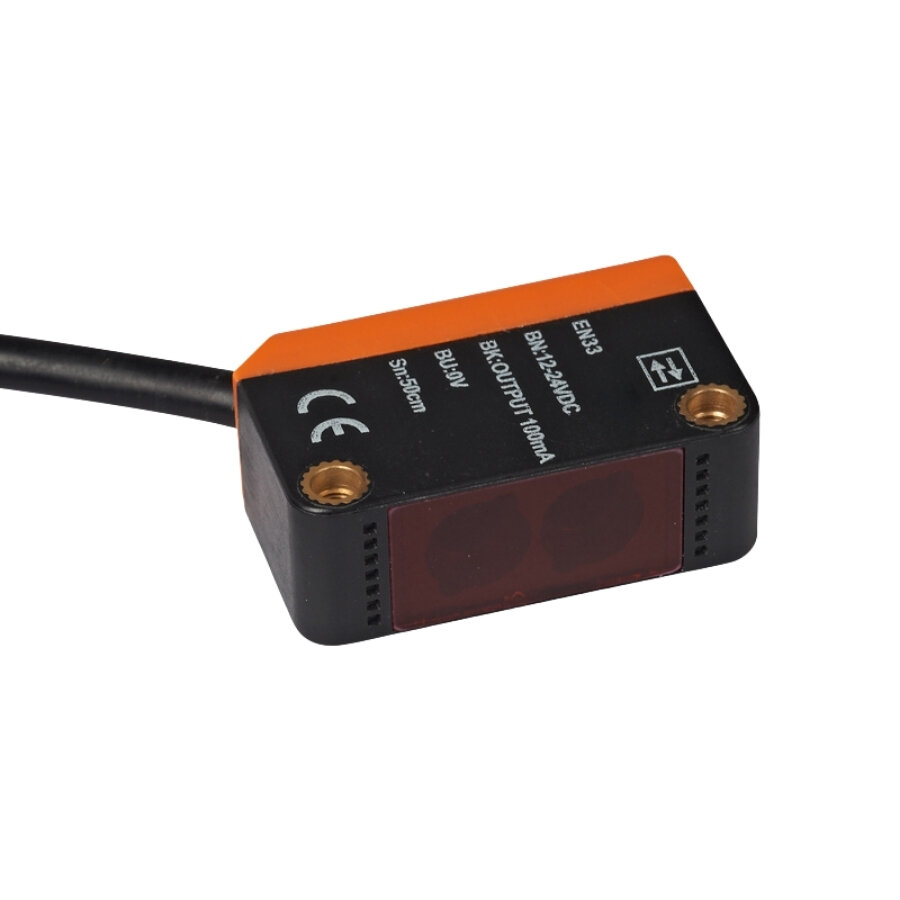

EN33-D1E1000PA 1000cm PNP NO Through-beam Photoelectric Sensor

EN33-D1E1000PA 1000cm PNP NO Through-beam Photoelectric Sensor

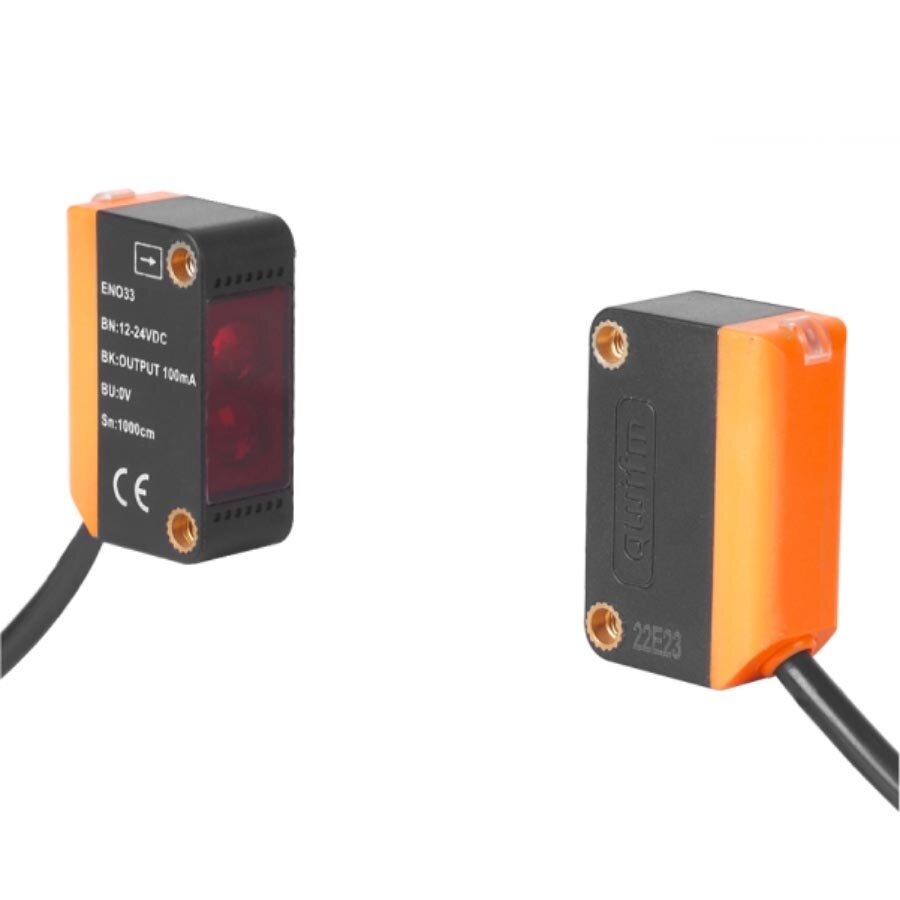

EN33-D1E1000PA 1000cm PNP NO Through-beam Photoelectric Sensor,These sensors operate on the principle that the receiver sensor detects the light wave from a laser sent by the transmitter sensor. Application areas for such sensors include, for example, creating protective zones around operating machines or detecting production elements far from the sensor.

Application Areas

• Monitoring Production Lines: Detecting the presence or absence of products or elements, controlling the flow of goods.
• Object Counting: Precise counting of parts on conveyor belts or in packaging processes.
• Position Detection: Precise determination of the position of an element or tool.

Datasheet

Features

• Sensor Type: Through-beam
• Response Time: 1ms
• Supply Voltage: 12-24VDC
• Sensing Distance: 1000cm
• Operating Mode: PNP NO
• Product Standard: GB/T14048.10-2016
• Protection: IP64
• Ambient Illumination:
  • Lamp: Less than 3000LUS
  • Sunlight: Less than 11000LUS
• Operating Temperature: -25°C ~ 55°C

Link

Size
