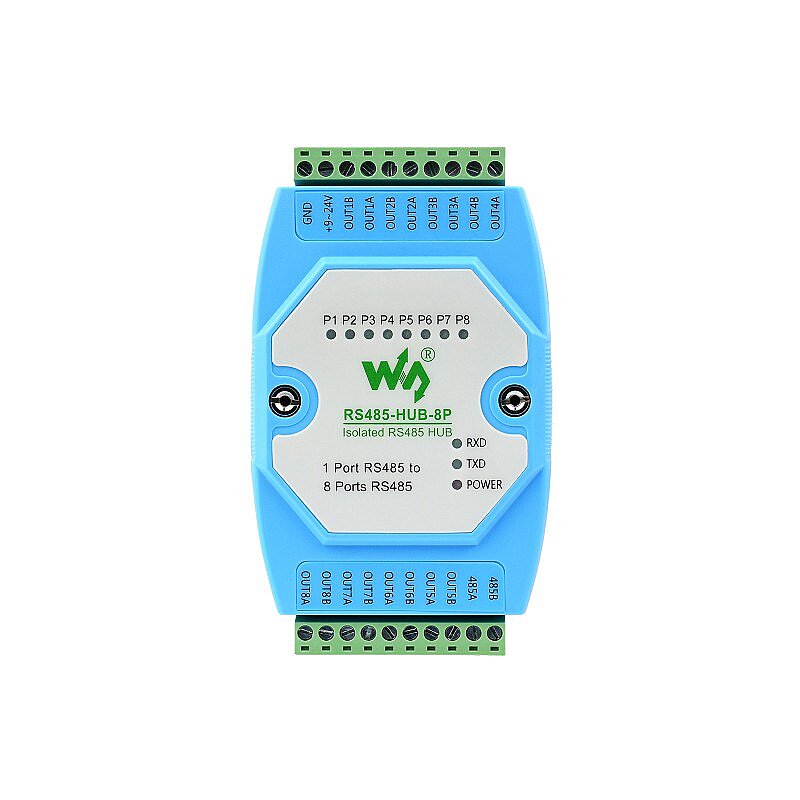

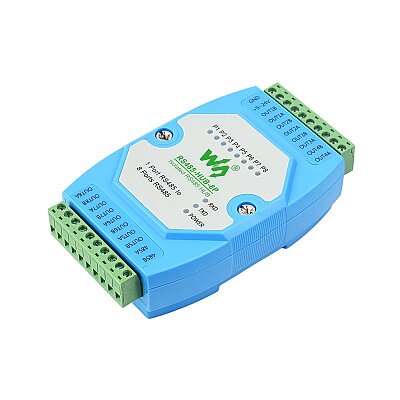

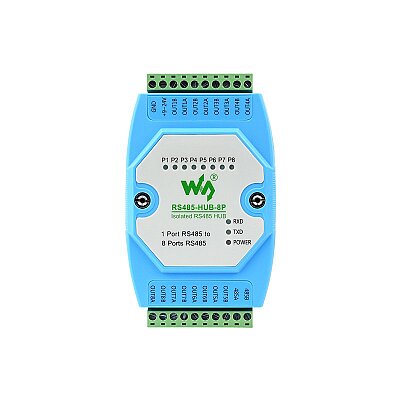

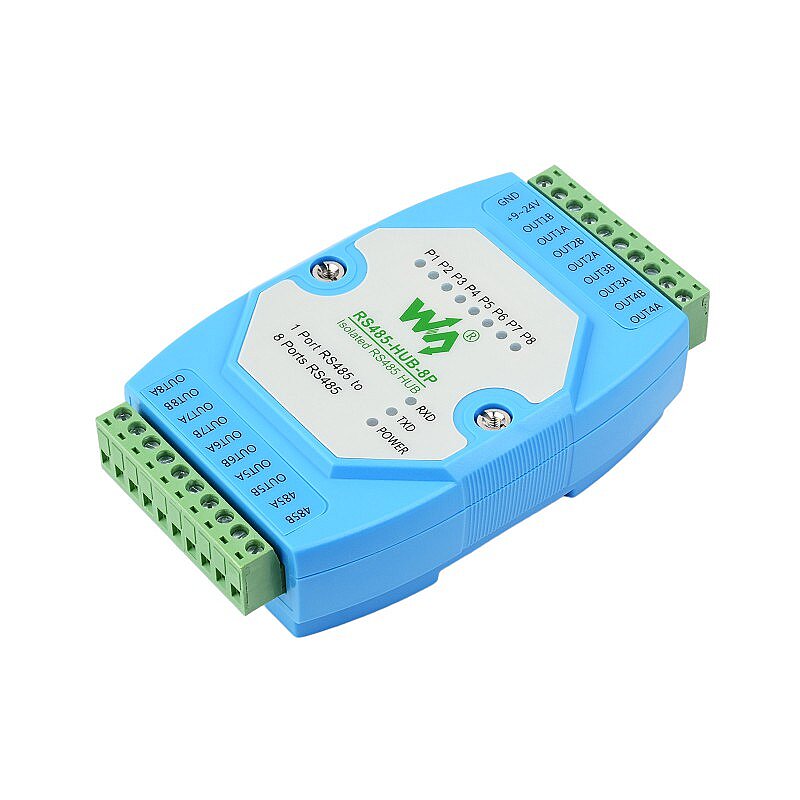

Industrial Isolated 8-Channel DIN-Rail RS485 Hub

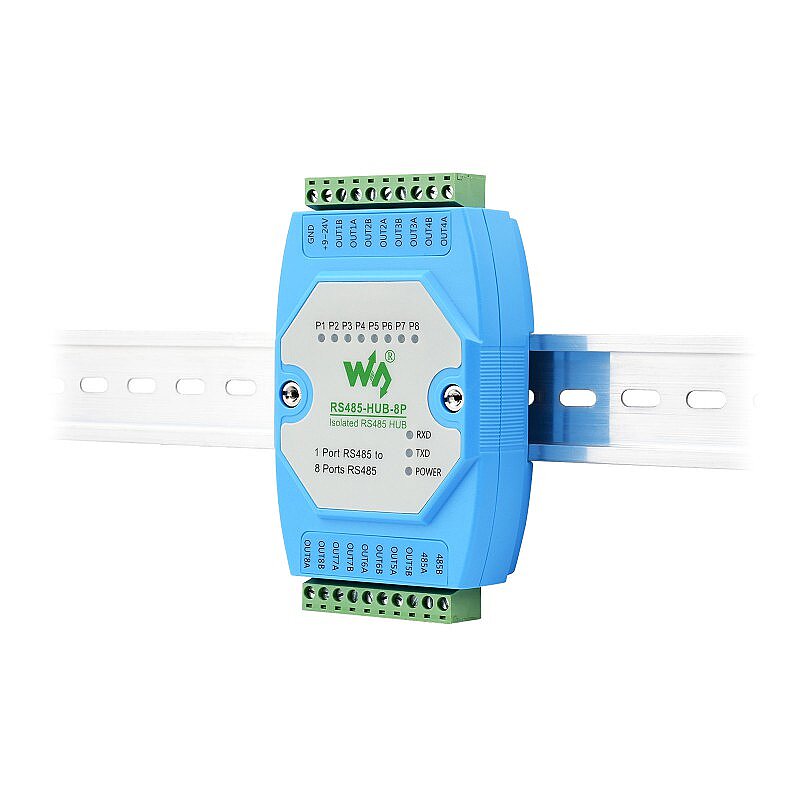

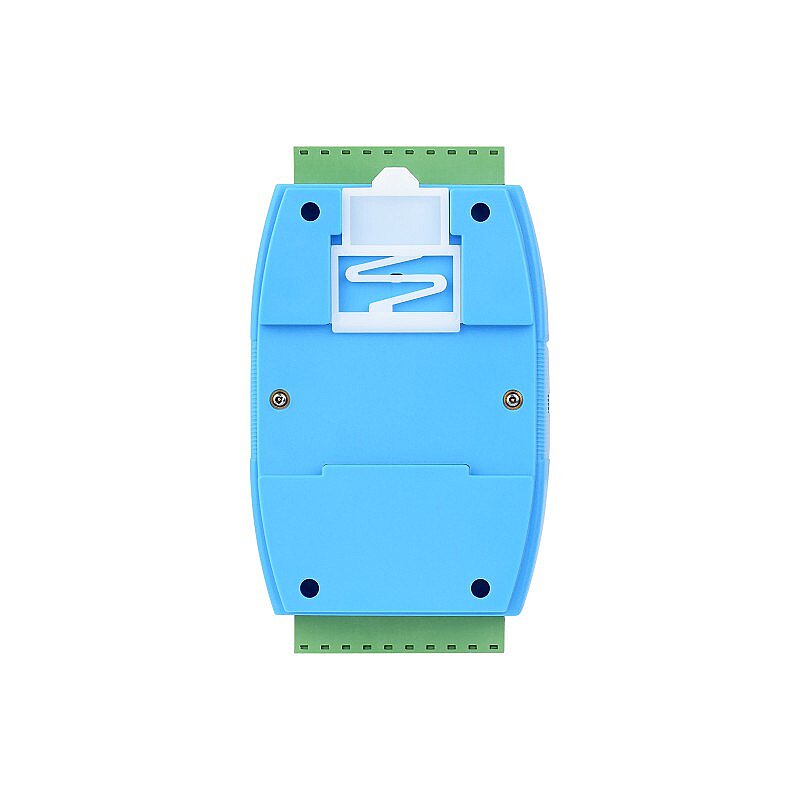

The Industrial Isolated 8-Channel DIN-Rail RS485 Hub is an industrial-grade, isolated RS485 hub that enables the expansion of a single RS485 master port into eight RS485 slave ports. Capable of performing signal repeating, extension, and isolation functions within an RS485 network, this device features a screw terminal connection for power input. Its DIN-rail mountable housing ensures easy installation, making it a cost-effective solution. It is suitable for applications such as data acquisition, IoT gateways, security IoT systems, and smart device monitoring.
Features
- SKU: 24271
- Interface standard: Compatible with RS485 standard
- Physical interface: RS485 screw terminals
- Baud rate: 300~460800 bps (auto-adaptive)
- Supported nodes: Each RS485 port supports up to 32 nodes
- Communication distance: 1200 m (9600 bps); As speed increases, the distance decreases
- Operating mode: RS485 two-wire (A, B), half-duplex transparent transmission
- Power supply: DC 9~24 V
- Operating temperature: -45 ~ +85 ℃
- Ambient humidity: <95% RH
- Transmission medium: Standard parallel cables/twisted pair cables

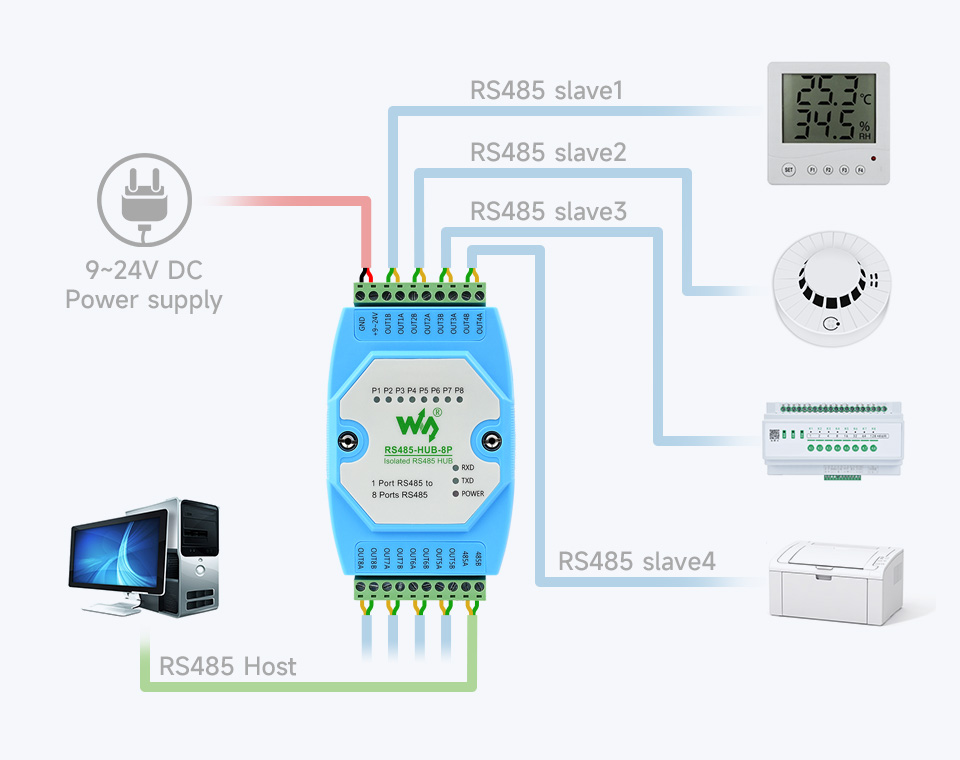

Connection Diagram

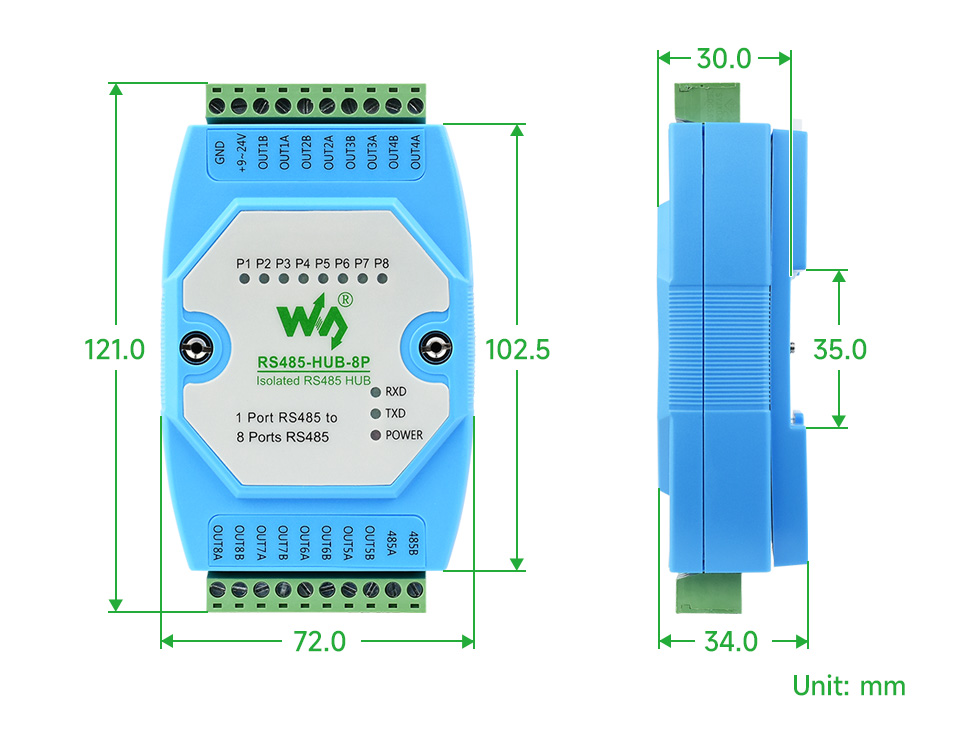

Dimensions
