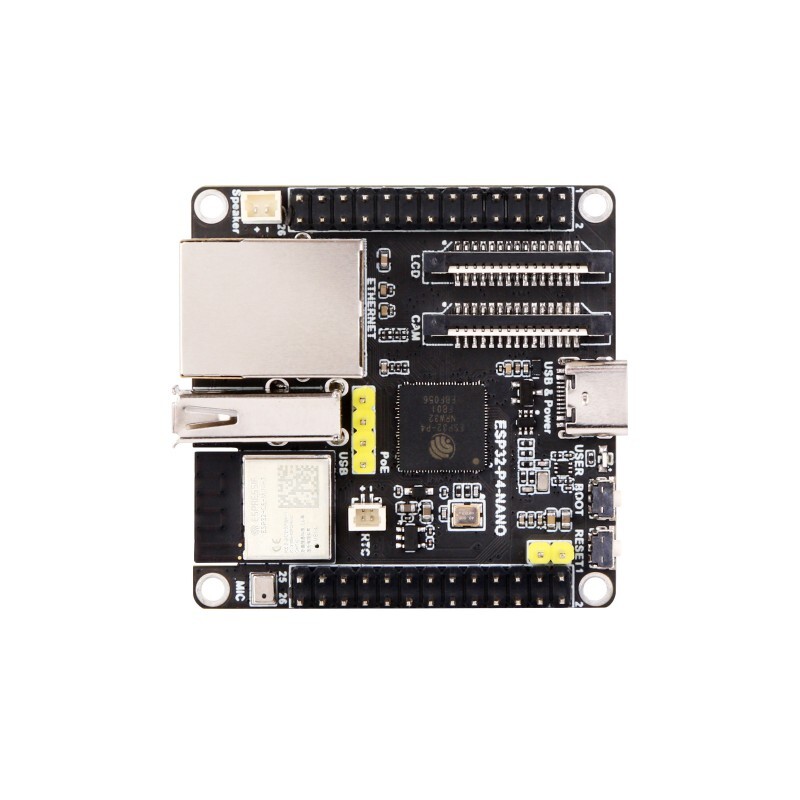

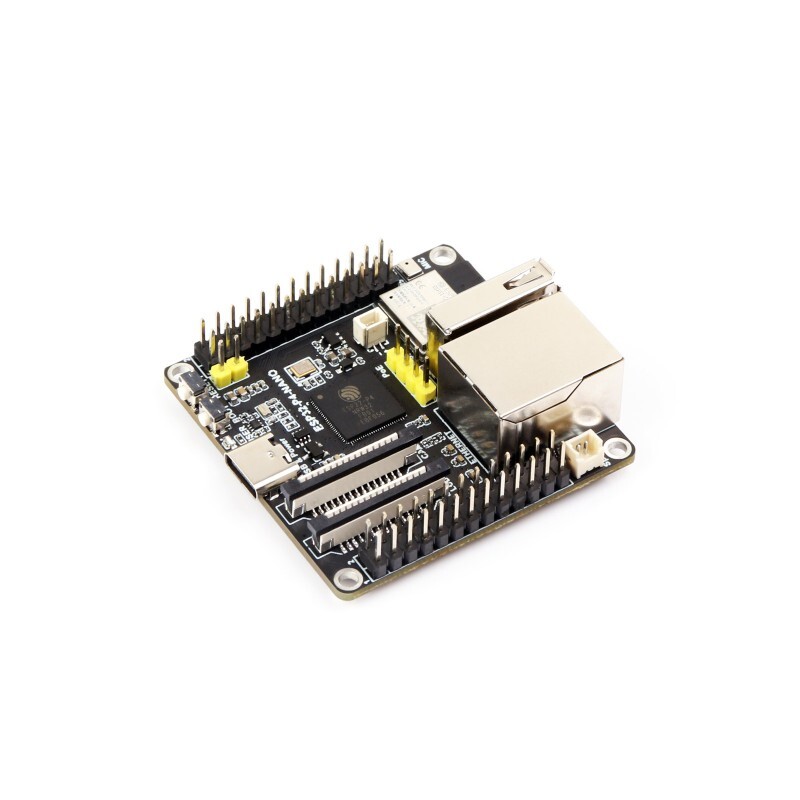

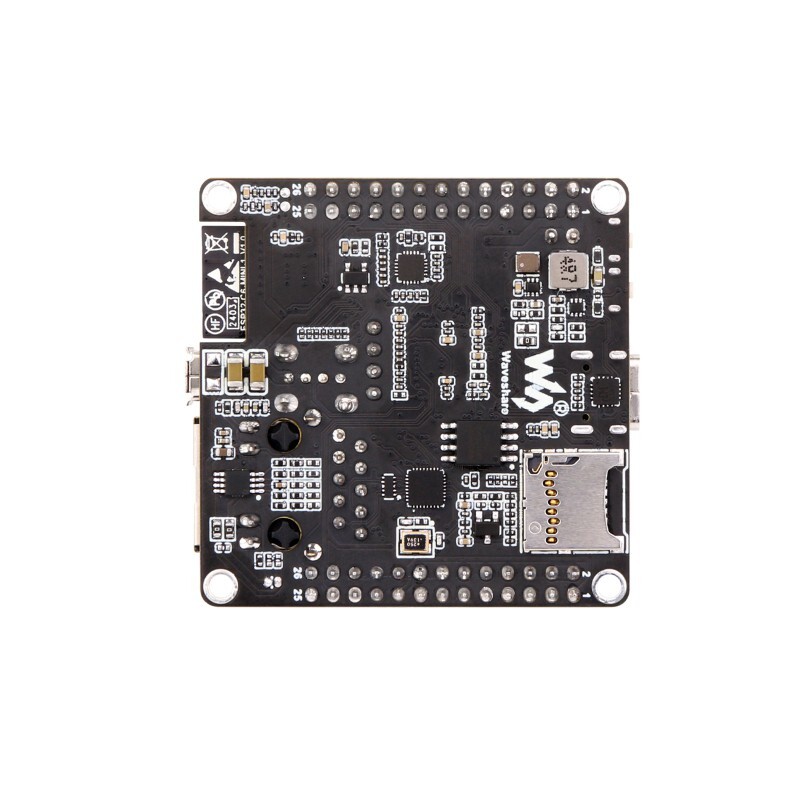

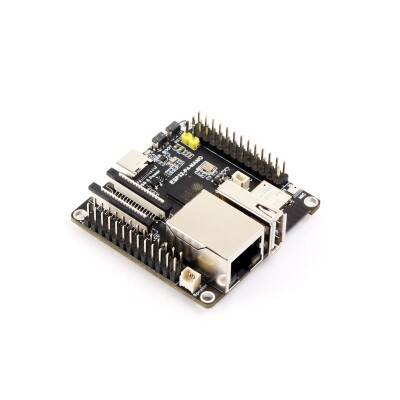

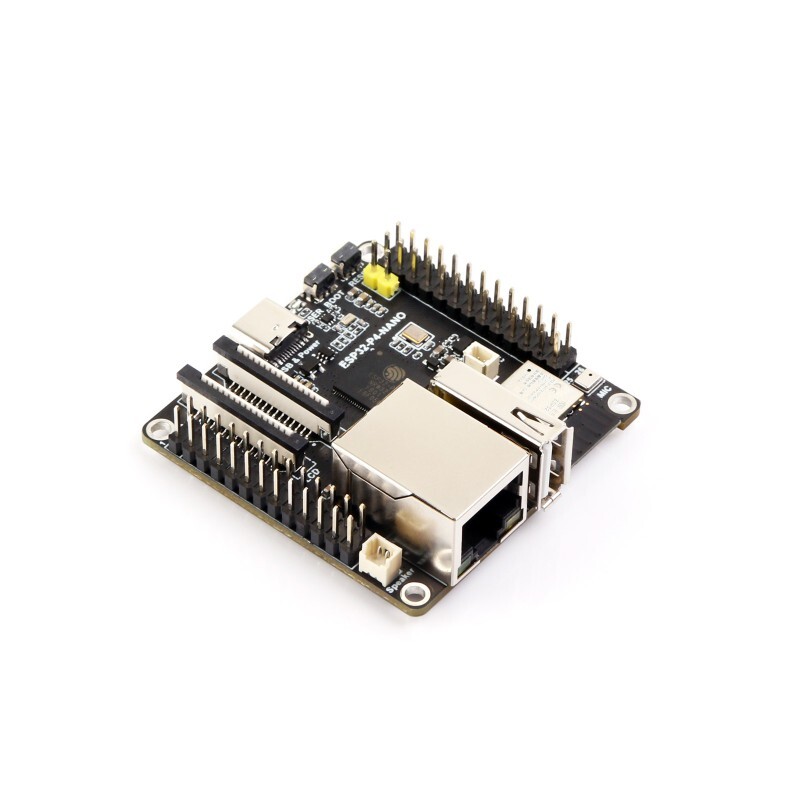

ESP32-P4-NANO High-Performance Development Board
The ESP32-P4-NANO High-Performance Development Board is a dual-core RISC-V high-performance development board based on the ESP32-P4 chip designed by Waveshare. It supports a wide range of human-computer interfaces, including MIPI-CSI (Integrated Image Signal Processor, ISP) and MIPI-DSI interfaces, as well as common peripherals such as SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI™.
It also supports USB OTG 2.0 HS, Ethernet, and SDIO Host 3.0 for high-speed connectivity. The chip integrates a digital signature peripheral and a dedicated key management unit to ensure security. The ESP32-P4-NANO is specifically designed for high-performance, high-security applications, fully meeting the high demands of embedded applications in areas such as human-machine interface support, edge computing capabilities, and I/O connectivity.
Manual
Features
- SKU: 29026
- Processor
- Equipped with a RISC-V 32-bit dual-core processor (HP system), it includes DSP and instruction set extensions, as well as floating-point units (FPUs), and its main frequency is up to 400 MHz.
- Equipped with a RISC-V 32-bit single-core processor (LP system), the main frequency is up to 40 MHz.
- Equipped with an ESP32-C6 WIFI/BT coprocessor, it can expand WIFI 6/Bluetooth 5 and other functions via SDIO.
- Memory
- 128 KB high-performance (HP) system read-only memory (ROM)
- 16 KB low-power (LP) system read-only memory (ROM)
- 768 KB high-performance (HP) L2 memory (L2MEM)
- 32 KB low-power (LP) SRAM
- 8 KB tightly coupled system memory (TCM)
- 32 MB PSRAM is stacked in the package, and the QSPI interface is connected to 16 MB of Nor Flash
- Peripheral Interfaces
- Onboard bi-directional 2*13-pin headers connect to 28 programmable GPIOs to support a wide variety of peripherals.
- Onboard Type-A USB 2.0 OTG interface, 100 Mbps Ethernet interface, SDIO3.0 TF card slot, Type-C UART flash port, convenient use in different scenarios.
- Onboard speaker interface, microphone, codec chip, and power amplifier chip can be used to meet ideal audio function requirements.
Onboard MIPI-CSI high-definition camera interface, support Full HD 1080P image capture and encoding, integrated image signal processor (ISP) and H264 video encoder, support H.264 and JPEG video encoding (1080P @30fps), easily applicable to computer vision, machine vision, and other fields. Applicable
- The built-in MIPI-DSI high-resolution display interface, integrated pixel processing accelerator (PPA), and graphics acceleration controller (2D DMA) supporting 2D JPEG image decoding (1080P @30fps) provide powerful support for high-resolution display and smooth HMI experience. It is suitable for applications in smart home central control displays, industrial central control displays, vending machines, and other scenarios.
- The dedicated PoE module interface makes the development board's power supply mode more flexible, and only one network cable can be connected to the PoE device to connect the ESP32-S3-NANO series to the network and power supply.
