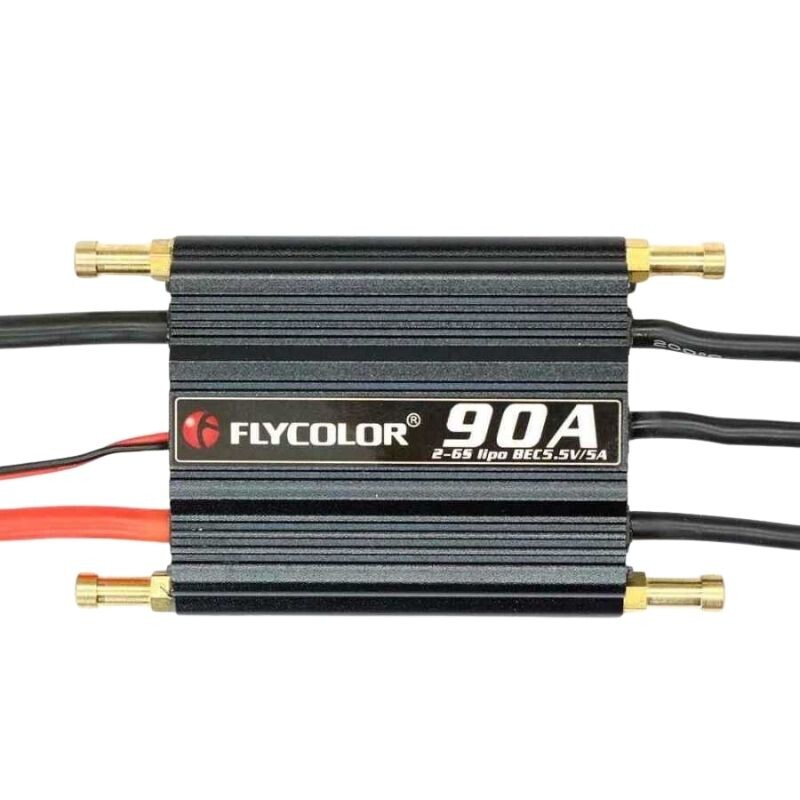

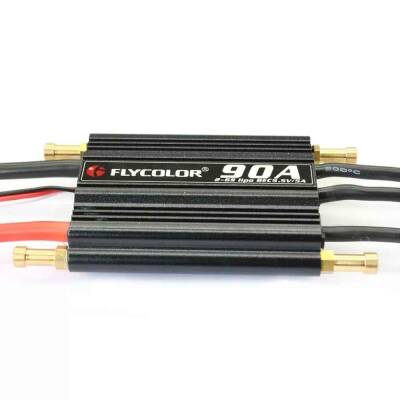

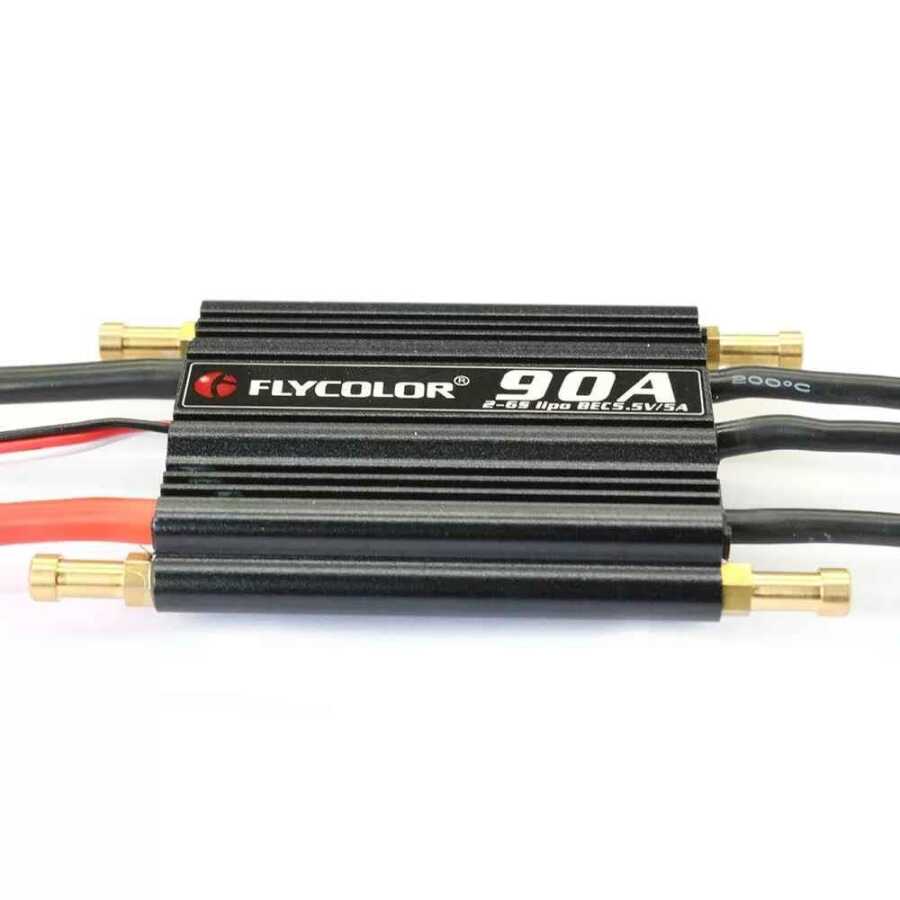

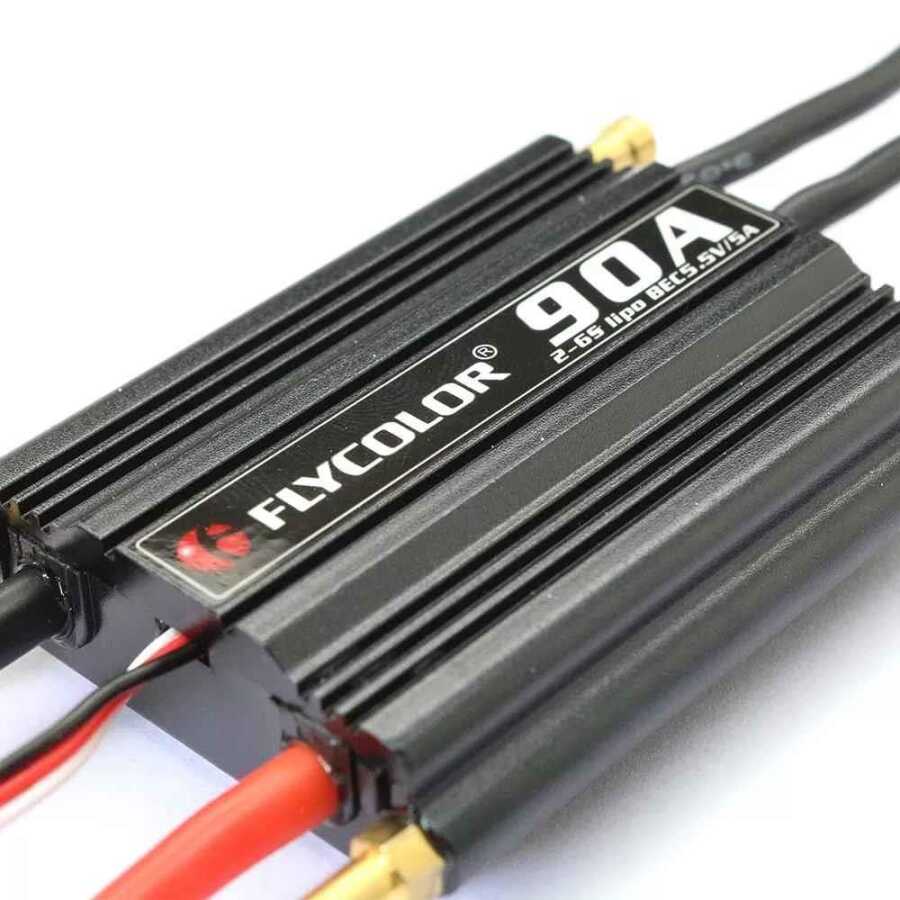

Flycolor Waterproof 90A 2-6S Brushless ESC 5.5V/5A BEC
Flycolor Waterproof 90A 2-6S Brushless ESC (FlyMonster-90A) is often used in RC boat projects It is a waterproof ESC model used. It has the ability to be programmed with the Flycolor programming card.
Flymonster-90A Features:
- Model: Flymonster-90A
- Supply Voltage: 2-6S
- Current: 90A
- BEC: 5.5V/5A
- Weight: 102g.
- >
- Dimension: 57×49×18mm
- Typical Applications: Boat length < 100cm
General Specifications:
● Use powerful and high performance MCU. Users can set the functions as their demands, fully embody the Smart features. Unique circuit design, strong anti-interference.
● Waterproof design (Note: If there is water in the ESC, please dry the water on the connectors).
● Startup mode can be set. throttle response is quick and has very smooth speed control linearity. Compatible with scale boats and racing boats.
● Low voltage protection threshold value can be adjusted.
● Built-in BEC switch, servo with large power load, lower power loss.
● Multiple protection functions: input voltage abnormal protection/low voltage cut-off protection, over thermal protection and throttle signal loss protection make the ESC more reliable.
● High power safety performance: No matter where the throttle lever is, the engine will not start immediately.< /DIV>
● Over thermal protection: When the ESC temperature is above 100 °C, the output power drops automatically. The output power will return to normal when it drops below 80°C.
● Cycle menu setting, simple operation. Support setting with program box and transmitter.
