Flysky FS-İ6X 2.4GHz 10 Channel Controller and FS-İA10B Receiver
Flysky FS-i6X 2.4GHz 10CH in vehicle construction such as drones, multicopters etc. It is a transmitter remote control that supports up to 10 channels with a 2.4GHz frequency that you can use. 6 Channel can also be used with the 6 Channel transmitter. The receiver that comes with the remote control has 10 channels.
AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and offered by FLYSKY , has been specially developed for all radio control models. Providing superior protection against interference while providing low power consumption and high reliable receiver sensitivity, FLYSKY's AFHDS technology is recognized as one of the leaders in the RC market today.
Features:< /h3>
Bi-Way Communication:
Any transmitter capable of sending and receiving data can receive data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.
Multi-Channel Hopping Frequency:
The bandwidth of this system varies between 2.408GHz and 2.475GHz. It is divided into 135 channels. Each transmitter jumps between 16 channels (32 for Japanese and Korean version) to reduce interference from other transmitters.
Omnidirectional Gain Antenna:
High efficiency Omni-directional high gain antenna, more Reduces interference while using little power and maintaining a strong reliable connection.
Unique Identification System:
Each transmitter and receiver has a unique ID. Once the transmitter and receiver are paired, they will only communicate with each other, preventing other systems from accidentally connecting or interfering with the system's operation.
Low power consumption:
The system uses high precision low power consumption components, high Manufactured while maintaining receiver sensitivity, consuming one-tenth of the power of a standard FM system while significantly increasing battery life. >

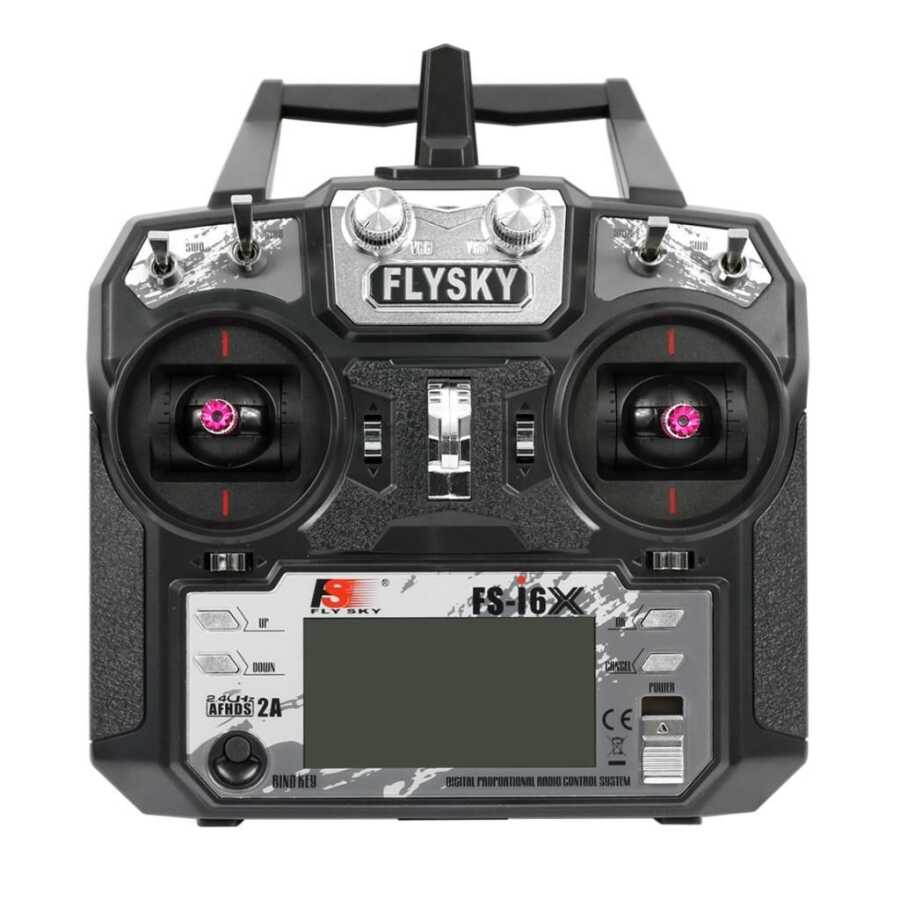

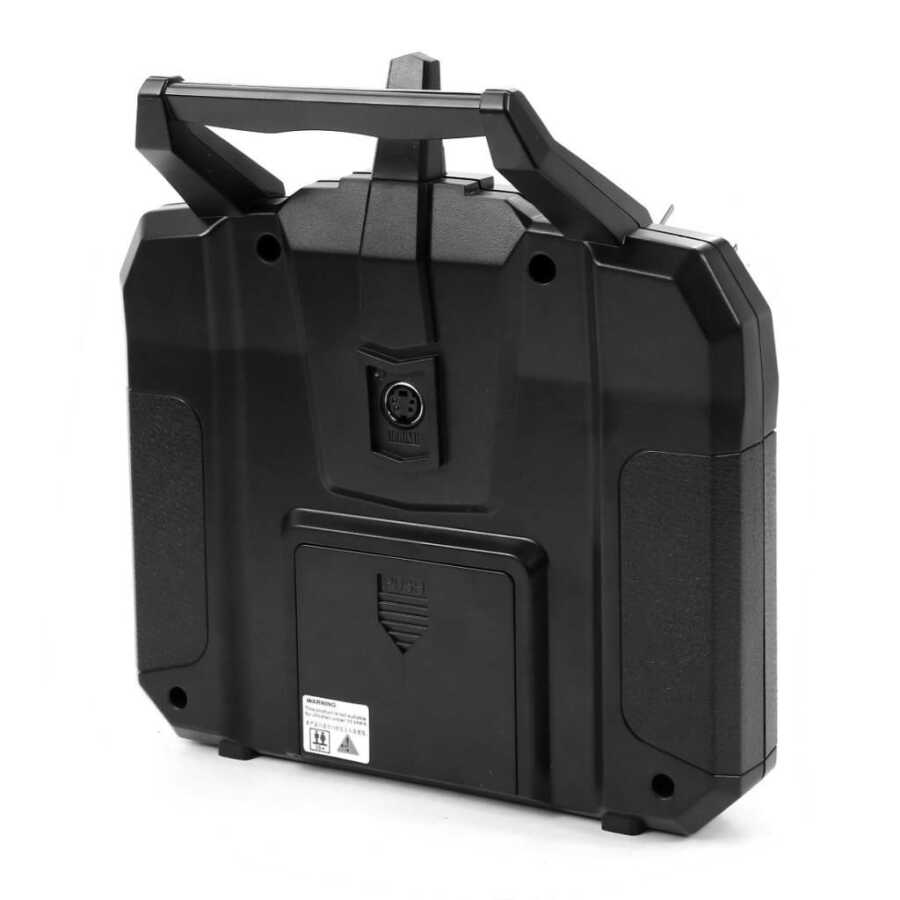

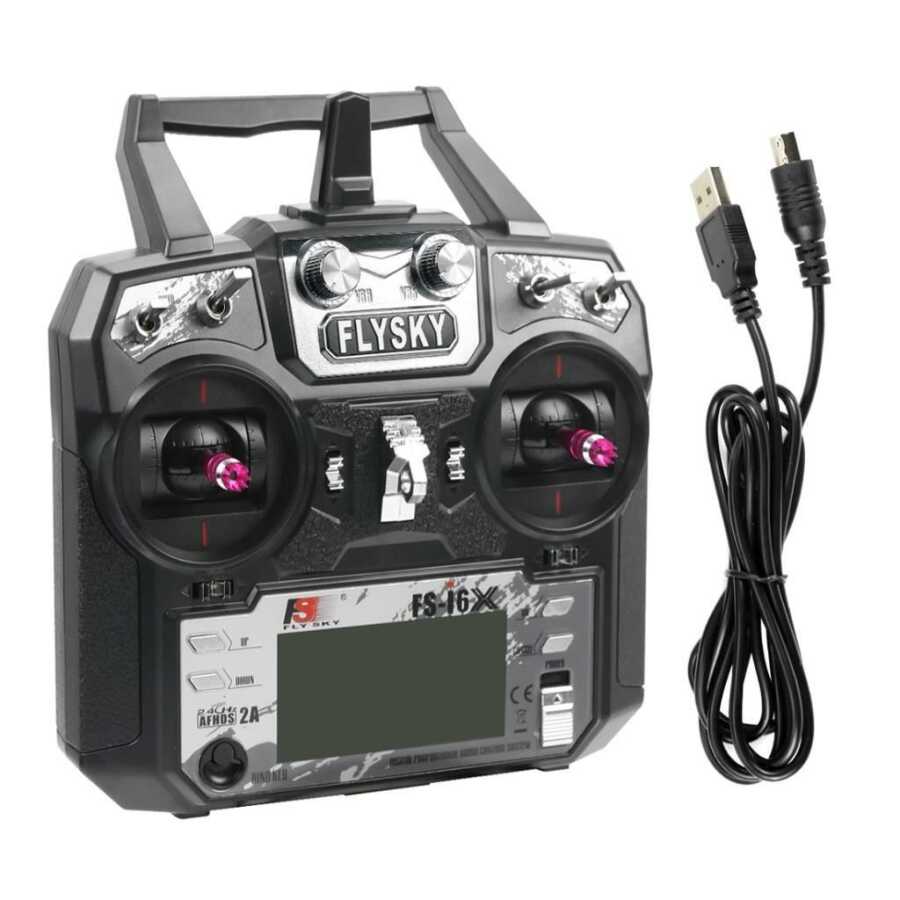

Product: FS-i6X RC Transmitter
Tx Channel: 6
Mode 1 (Throttle Lever on the Right)
Model Type: Fixed Wing / Glider / Helicopter
RF Range: 2.408-2.475GHz
RF Power: <20dBm
RF Channel: 135
Band Width: 500KHz
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Bar Resolution: 4096
Low Voltage Warning : <4.2V
DSC port: PS / 2 Port PPM
Paid: No
Antenna Length: 26mm (Dual Antenna)
Weight: 392g
Power: 6V DC 1.5A
Display: STNTransflective Screen, LCD 128 × 64 Mesh, VA 73x39mm, LCD with white backlight
Size: 174 x 89 x 190 mm
Online Update: Yes
Color Black
Certification: CE0678, FCC
;

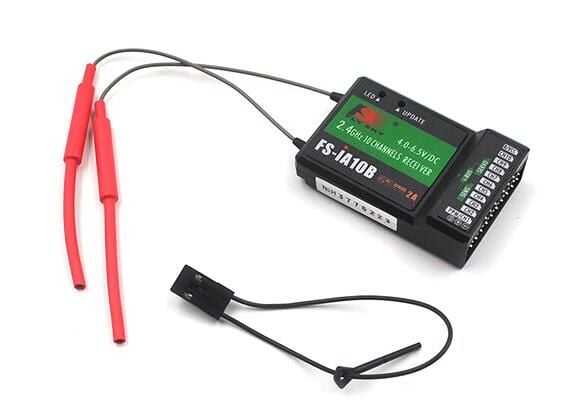

FS-İA10B Receiver Features:
Channel: 10
Frequency Range: 2.4-2.48 GHz.
Number of Bandwidths: 140
Transmit Power: ≤ 20 dBm.
RF Receiver Sensitivity: 105 dBm.< /li>
2.4G Mode: Second generation of an improved version of the Auto FM digital system.
Coding: GFSK.
Antenna Length: 2 x 26 mm (dual antenna).
Input Power: 4.0 - 6.5 VDC (82mA).
Dimension: 51 x 35 x 16 mm
Weight: 19 gr
Black color.
i-Bus Interface: Yes
Data Acquisition Interface: Yes
Model Type: Airplane / Glider / Helicopter
Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G
