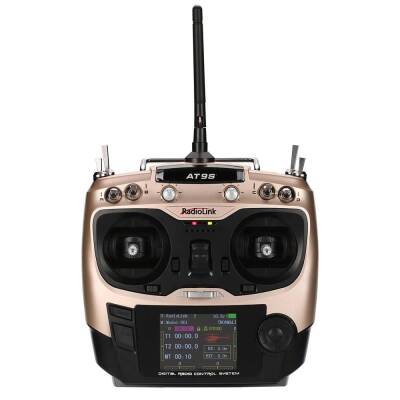

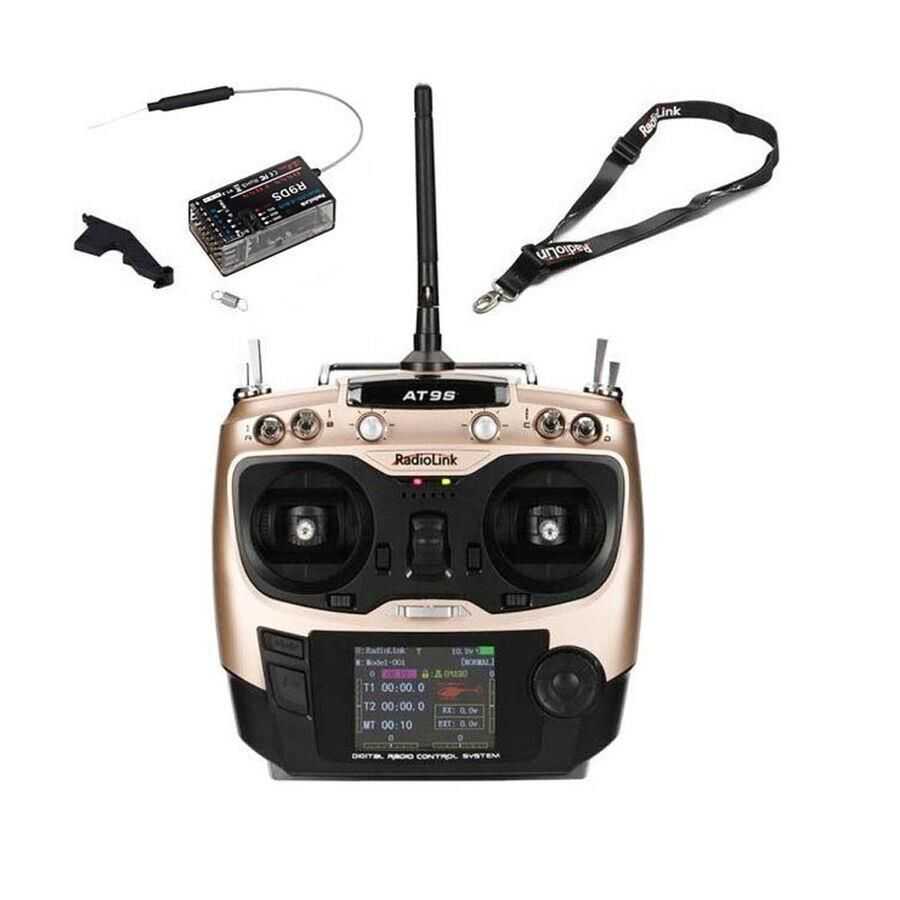

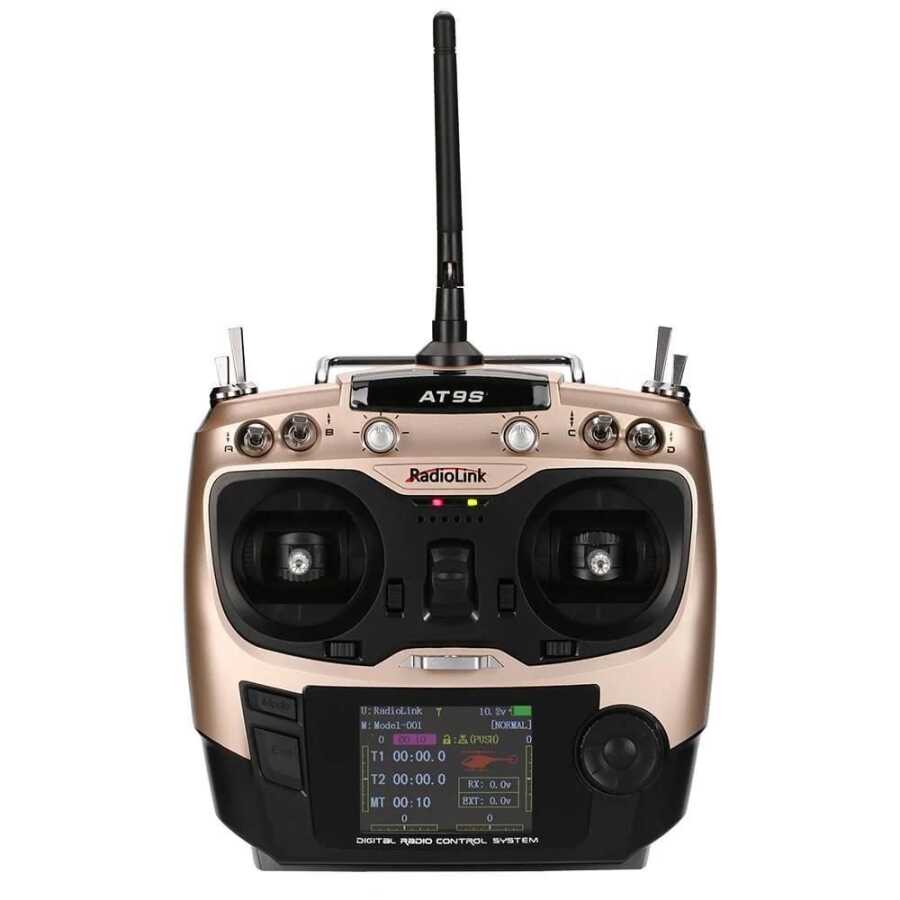

Radiolink AT9S Pro 2.4GHz 12 Channel Remote and R9DS Receiver

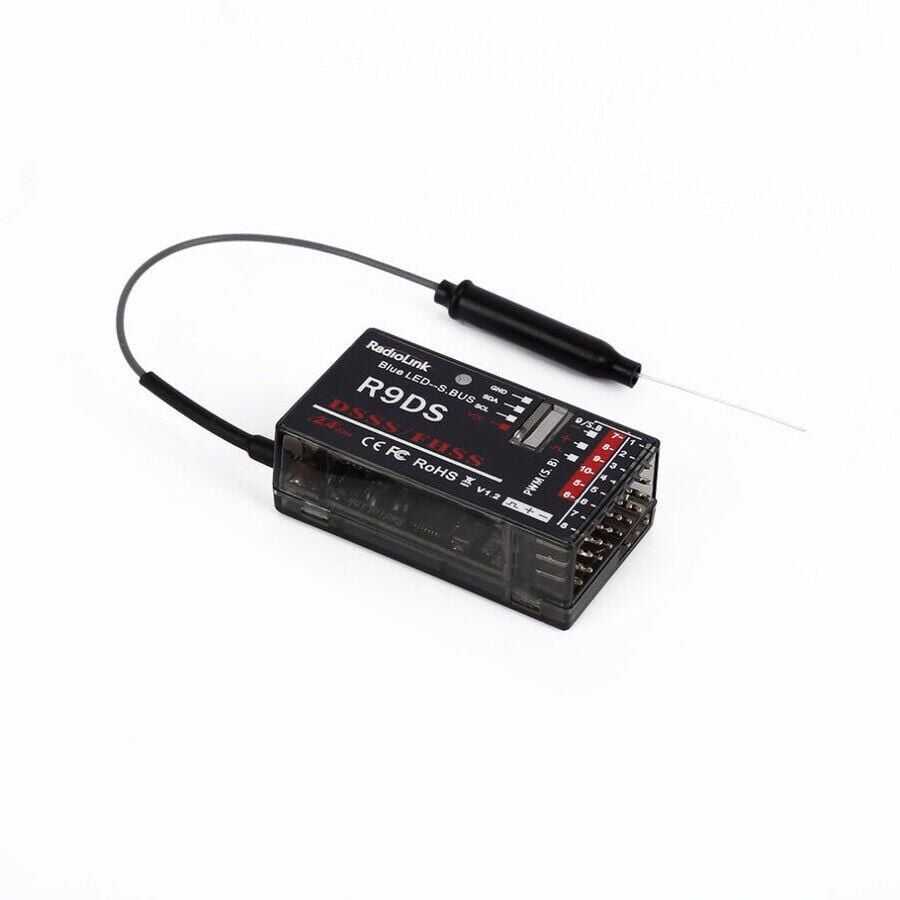

Radiolink AT9S Pro is an easy-to-use remote with 12 channel support. This product is especially used in the construction of drones, but also helicopters, quadcopters, etc. Aircraft projects can be made. Apart from aircraft, it is suitable for various remote control engine control projects such as RC vehicles, boats. The product includes R9DS 9 channel receiver as a receiver. The remote is compatible with R12DS, R12DSM, R9DS, R6DS and R6DSM receivers.
Features:
- Mode : Mod2
- Color:Gold, Silver
- Weight:880g
- Dimension:183 * 100 * 193 mm
- Frequency Band: 2.4 Ghz ISM band (2400MHz-2483.5MHz)
- Bandwidth: 5.0MHz
- ACPR: >38dbm
- Modulation Mode: QPSK
- Spread Spectrum Mode: DSSS and FHSS / CRSF
- Transmit Power: DSSS and FHSS <100mW (20dbm)
- CRSF 10mW / 25mW / 100mW / 500mW / 1W / 2W (Optional)< /LI>
- Operating Voltage: 7.4 ~ 18.0V
- Operating Current: DSSS & FHSS <90mA @ 12V
- CRSF depends on the selected transmit power
- Channel Quantity: 10/12 (CH5 to CH10/12CH programmable)
- Control range: DSSS and FHSS-4KM in the air (Maximum range tested in an obstacle-free, interference-free area)
- CRSF- Depends on RX and TX from BLACKSHEEP
- Signal Output: PWM / SBUS / PPM / CRSF
