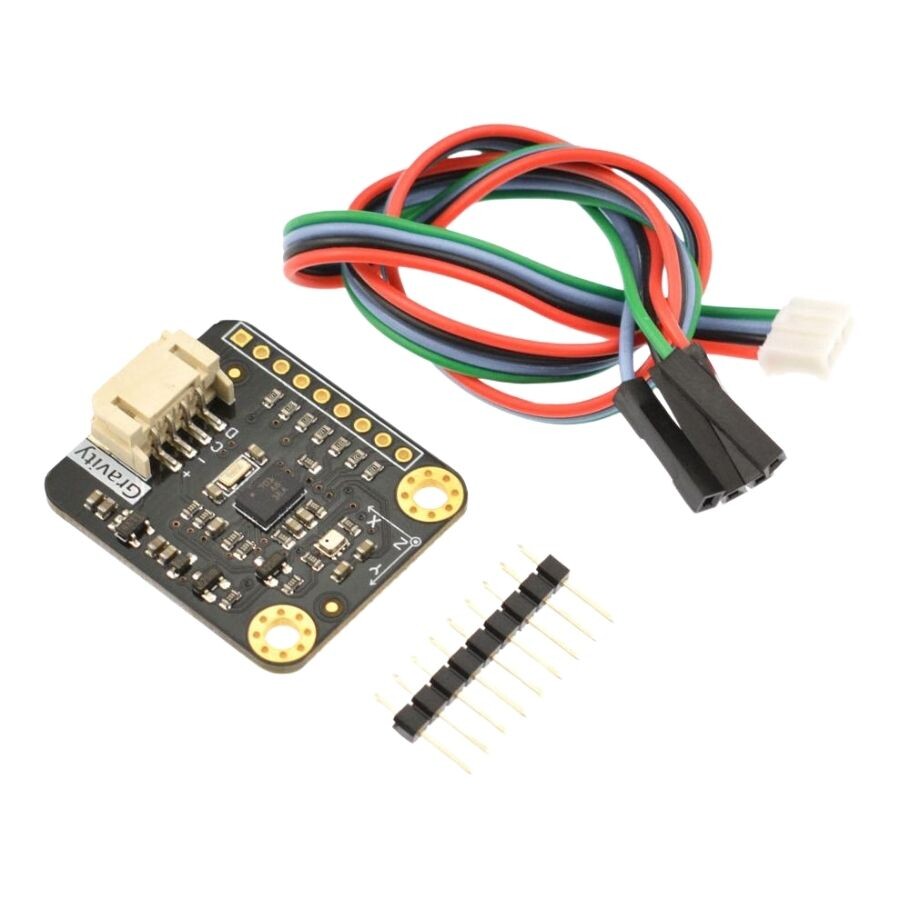

Gravity: BNO055+BMP280 Smart 10DOF AHRS & IMU Sensor - SEN0253

Gravity: BNO055+BMP280 Smart 10DOF AHRS & IMU Sensor - SEN0253

Gravity: BNO055+ BMP280 Intelligent 10DOF AHRS & IMU Sensor - SEN0253 is a package system that integrates a three-axis 14-bit accelerometer, a three-axis 16-bit gyroscope, a three-axis geomagnetic sensor and a 32-bit microcontroller. The BNO055 can provide not only single data of three types of sensors (accelerometer/gyroscope/geomagnetic), but also combined data such as quaternions, Euler angles or vectors. In addition, the built-in MCU frees users from the complexities of algorithm processing, which can lead to a smartphone, wearable device, etc. it provides application support for many aspects.

The BMP280 is an absolute barometric pressure sensor designed specifically for mobile applications that can measure barometric pressure and temperature (data can be converted to altitude via a specific formula). The sensor module is located in an extremely compact package. It is based on Bosch's proven Piezo-resistive pressure sensor technology and has high accuracy and linearity, as well as long-term stability and high EMC robustness. A large number of device operation options offer the highest flexibility to optimize the device in terms of power consumption, resolution and filter performance.

Wiki

Schema

BNO055 Datasheet

BMP388 Datasheet

Features

• Working Voltage: 3.3V~5 V DC
• Operating Current: 5 mA
• Gravity-I2C Interface
• BNO055 Accelerometer:

  • Acceleration December ±2 g/±4g/±8g/±16
  • Low pass filter bandwidths 1 kHz~<8 Hz
  • Operating modes: normal, suspension, low power, standby, deep suspension
  • On-chip outage control: motion-triggered outage signal
• BNO055 Gyroscope:
  • The intervals can be changed between ±125°/sec~2000°/sec
  Decembers
  • Low pass filter bandwidths 523 Hz~12 Hz
  • Operating modes: normal, fast power on, deep suspension, suspension, advanced power saving.< / li>
  • On-chip outage control: motion-triggered outage signal
• BNO055 Geomagnetic:
  • Typical magnetic field December ±1300uT(x-,y-axis);±2500uT(z-axis)
  • Magnetic field resolution: ~0.3
  • Working nodes: low power, regular, advanced regular, high accuracy
  • Power modes: normal, sleep, suspend, force
• BMP280 Digital Pressure Sensor:
  • Pressure December: 300~1100hPa
  • Relative accuracy: ±0.12hPa（±1m）
  • Absolute accuracy: ±1hPa（±8.33m）
• Temperature December: 0℃~65℃
• Temperature resolution: 0.01℃
• Operating Temperature: -40~80℃
• Product Size: 32x27 mm

Pinout

Serial Number	Name	Functionality
1	/VCC	Positive Pole
2	-/GND	Negative Pole
3	C	I2C-SCL
4	D	I2C-SDA
5	NBOOT	Boot Mode
6	RST	Reset Pin
7	INT	Interrupt Output Pin
8	I2C_ADDR	BNO055 I2C address Selection
9	PS2	Protocol Selection Pin 2
10	PS1	Protocol Selection Pin 1
11	BL_IND	Bootstrap Instructions

PS1	PS2	Functionalit
0	0	Standard/Fast 12C Interface
0	1	HID OVER I2C
1	0	UART Interface
1	1	Reserved
