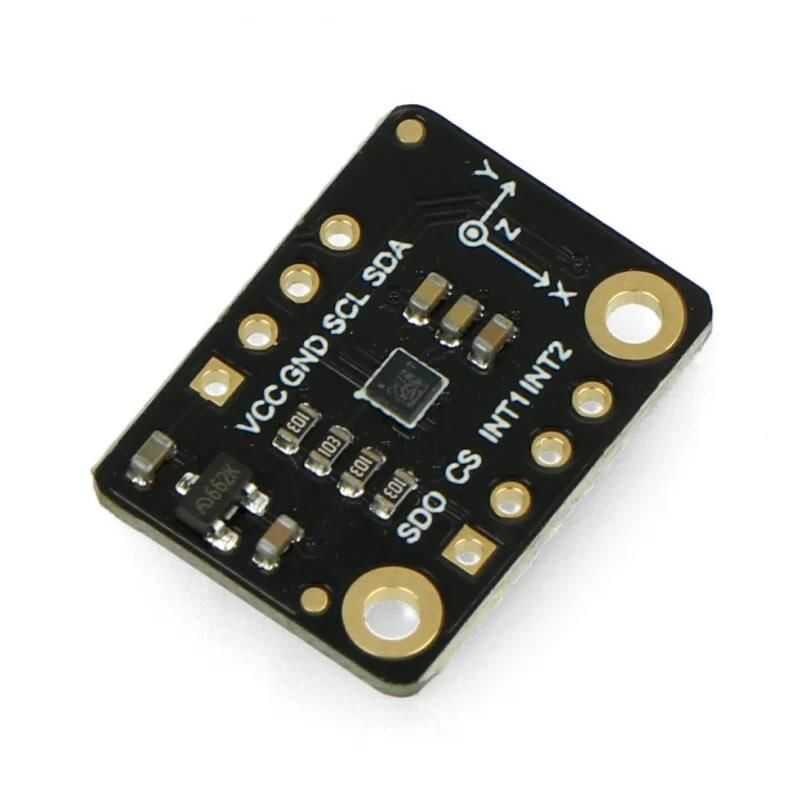

LIS2DW12 Tri-Axis Accelerometer Sensor ±16g
LIS2DW12, low power (50nA), low noise (1.3mgRMS), 32 FIFO, ±2g/±4g/±8g/±16g full scale, 16 It is a low-power, high-performance three-axis linear accelerometer with -bit data. output and 1.6~1.6KHz bandwidth. The sensor comes with a dedicated internal engine that can perform a variety of motion and acceleration detection, including two independently programmable interrupt and free fall, vertical/horizontal detection, 6D/4D orientation detection, configurable single/double touch recognition, stationary/motion detection. smart wake up for power saving, etc. For your convenience, we provide you with sample programs (C and Python) for the above functions.
Specifications
< LI>Operating Voltage: 3.3V- Operating Current: 50nA (low power consumption mode)/0.17mA (high performance mode)
- Interface: SPI/I2C

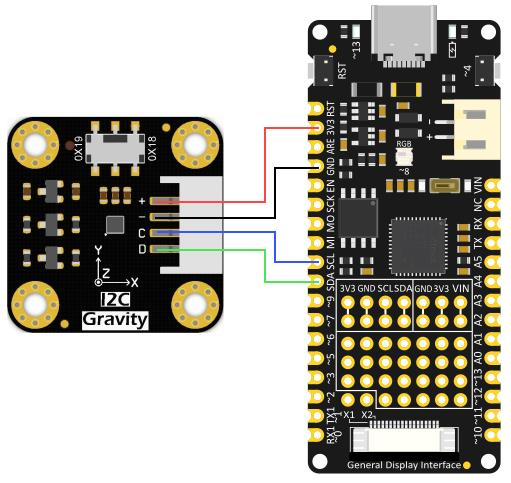

- I2C Address: 0x19(default address)/0x18(optional: pull down SDO pin to select)
- Optional Scale: ±2g/±4g/±8g/±16g
- Operating Temperature: -40℃~+85℃
- 16-Bit Data Output
- Frequency: 1.6Hz~1600Hz
- Ultra Low Noise: 1.3 mg RMS (low power mode)
- 32-level FIFO (first-in, first-out buffer zone)
- ECOPACK, RoHS and “Green” compliant
- Module size: 15 x 20 (mm) / 0.59 x 0.79 (in)
