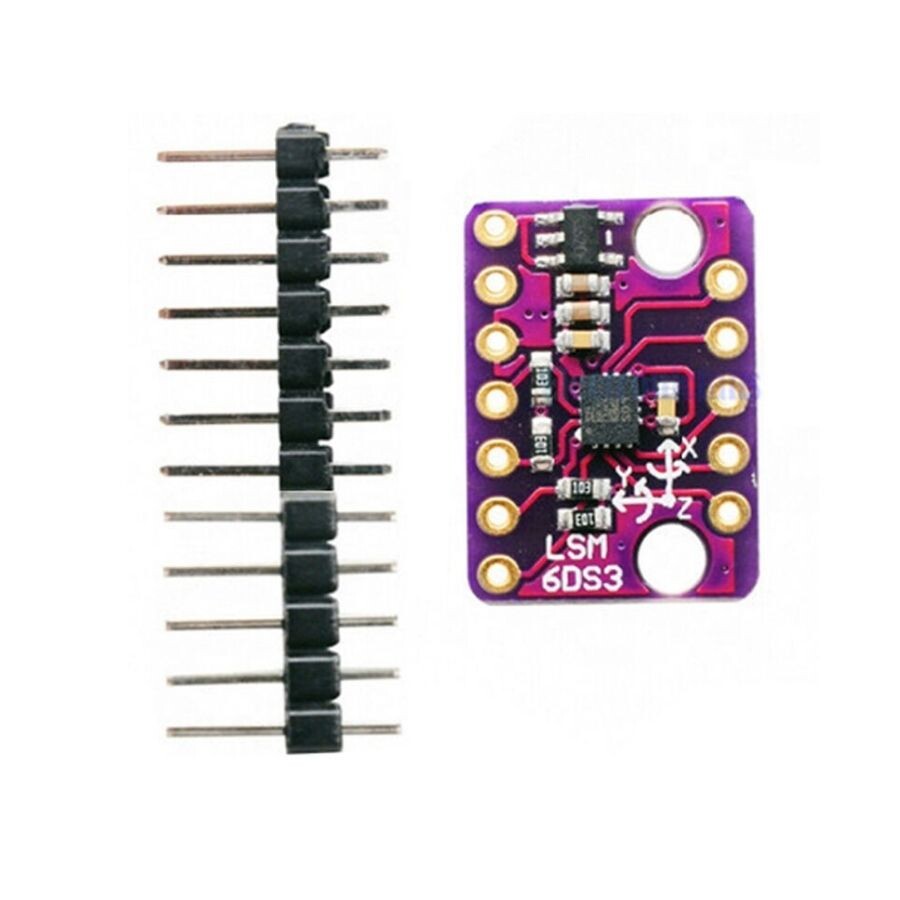

The LSM6DS3 Accelerometer and Gyro Sensor is an accelerometer and gyroscope sensor with an 8kb FIFO buffer and built-in interrupt processing. With Breakout, the LSM6DS3 can detect vibrations, tilts, movements, impacts, count steps, and even read temperatures.
The LSM6DS3 can read accelerometer data up to 6.7 kS/s and gyroscope data up to 1.7 kS/s for more accurate motion detection.

Each pin of the LSM6DS3 operates independently.

Features

•   Integrated Circuit: LSM6DS3
•   Operating voltage: DC 3.3V / 5V
•   Gyroscope measurement range: ±125, ±250, ±500, ±1000, ±2000 dps (degrees/second)
•   Measurement range: ±2g / ±4g / ±8g / ±16g (Selectable)
•   FIFO memory: 8kB
•   ADC: 16 Bit
•   Communication: I2c / Spi
•   Internal FIFO buffer (for data storage)
•   Integrated temperature sensor
•   Low power consumption
•   Operating temperature: -20C / 65C
•   12 Pin male header socket
•   Dimensions: 13mm x 18mm
•   Weight: 1gr

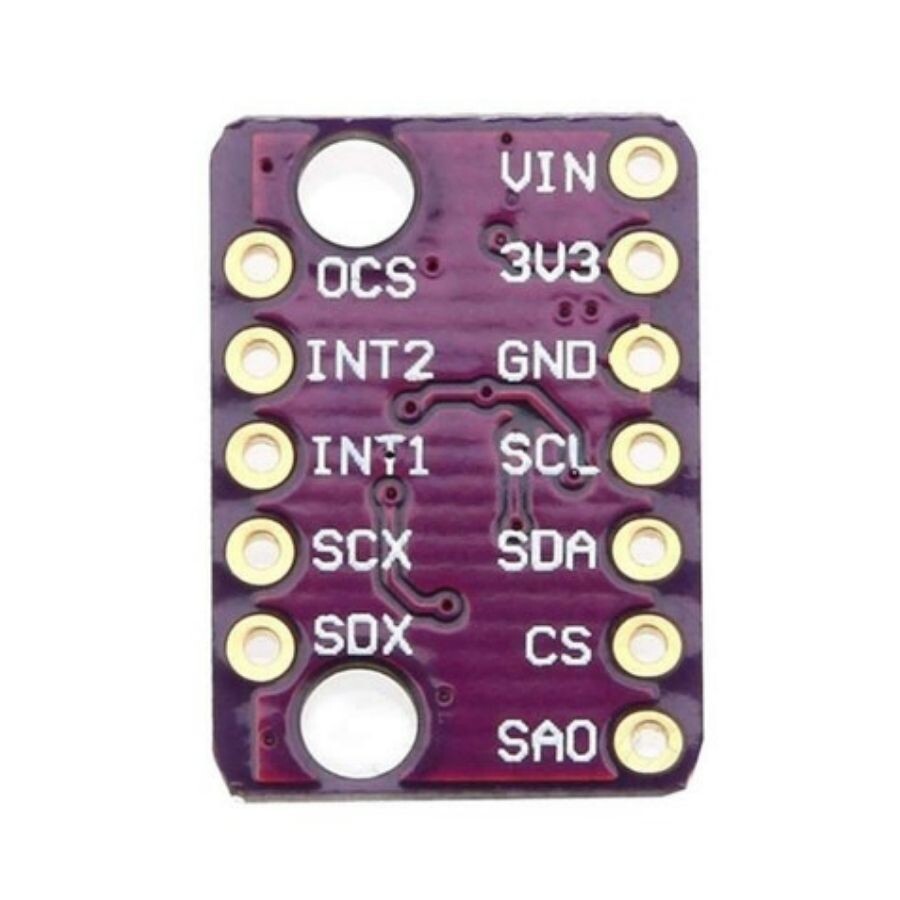

Pinout

•   VCC: Power supply input (3.3V - 5V)
•   GND: Ground pin
•   SDA/SDI: I2C data line / SPI data input
•   SCL/SCLK: I2C clock pin / SPI clock input
•   SDO/SA0: SPI data output / I2C address selection (LSB)
•   CS: Integrated selector (for SPI mode)
•   INT1 & INT2: Interrupt outputs (to wake the processor when motion is detected)
