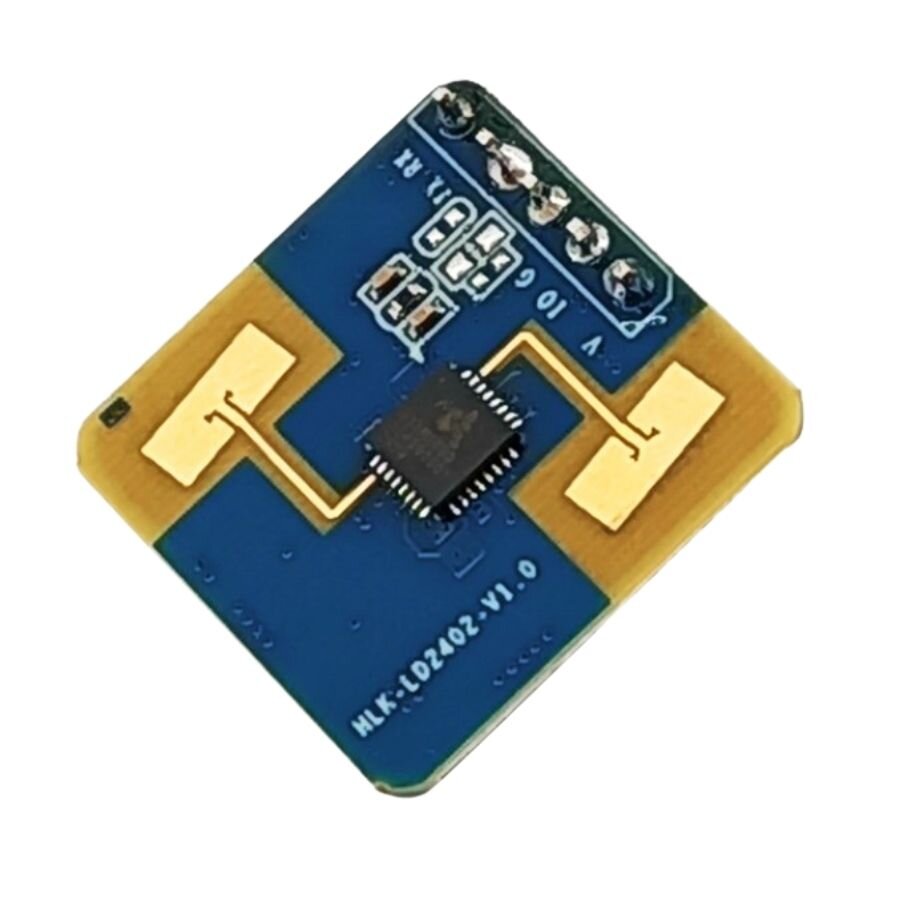

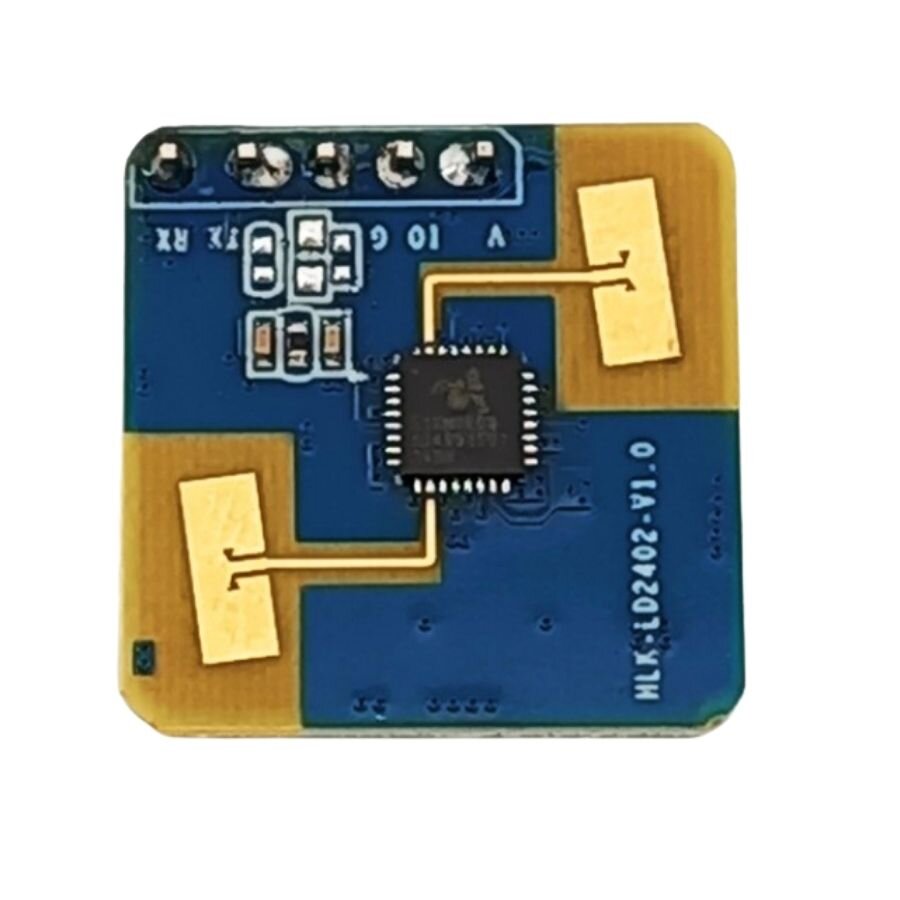

HLK-LD2402 24GHz Radar Motion Detection Sensor Module
HLK-LD2402 24GHz Radar Motion Detection Sensor Module
The HLK-LD2402 24GHz Radar Motion Detection Sensor Module is a moving and stationary human body detection sensor. It operates at 24GHz frequency and can detect up to 7 meters. It has a low energy consumption of 50mA. The simplified 24GHz sensor hardware has intelligent algorithm software for micro-movement of the human body. It is equipped with a high-performance 24GHz single transceiver antenna and peripheral circuitry. It is used to detect whether a human body is moving indoors, its micro-movement, or its presence, and to update the detection results in real time.
The HLK-LD2402 supports GPIO and UART interfaces. It operates on a plug-and-play principle. It reports the measurement result in real time. It supports multiple mounting modes such as ceiling and wall mounting. It automatically turns on when a person arrives and automatically goes into sleep mode when no one arrives; Thus, energy is saved.
Features
- HLK-LD2402
- Operating voltage: DC 3V / 5V
- Operating current: 50mA
- Detection distance: fixed 5m / moving 7m
- Close distance 0.2m detection, no detection blind spot.
- Detection angle: -+60 degree
- Frequency: 24GHz / 24.25GHz
- Modulation mode: FMCW
- Resolution: 0.15m (Typical)
- Non-contact detection
- Supports multiple mounting modes such as ceiling and wall mounting.
- Strong anti-interference capability
- Color: Blue / Gold
- Operating temperature: -40C / 85C
- 5 Pin male header connector socket.
- Size: 20mm x 20mm
- Weight: 2gr

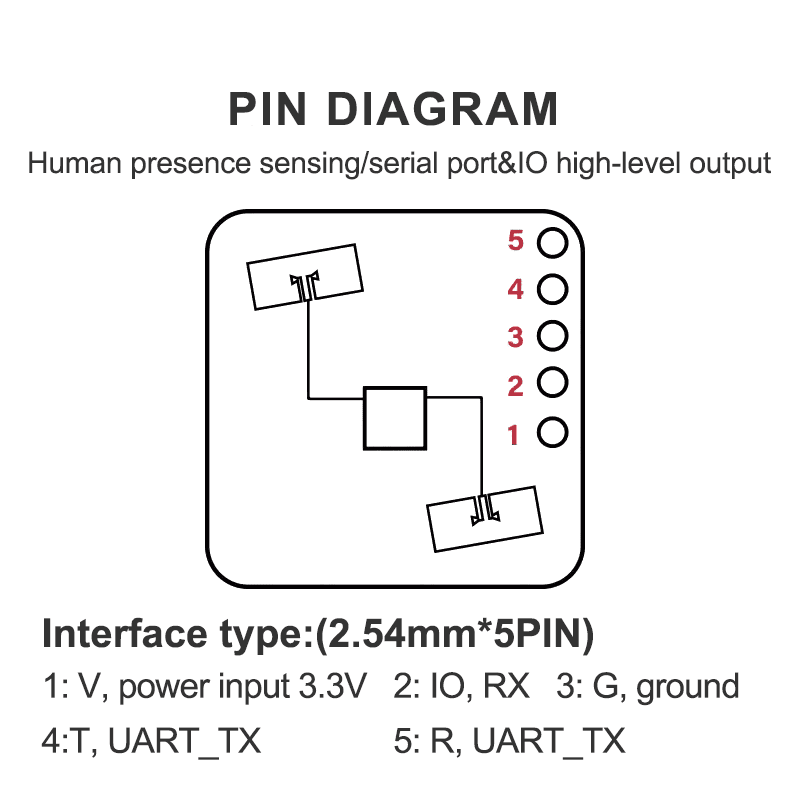

Pin Diagram
