HLK-LD2460 2T4R 24GHz Radar Motion Detection Sensor Module
1.474,90
TL
+
VAT
1.769,88
TL
Notify Me When It Arrives
1.474,90
TL
+
VAT
1.769,88
TL
Add to Favorite
RecommendCommentAlarm Price
HLK-LD2460 2T4R 24GHz Radar Motion Detection Sensor Module

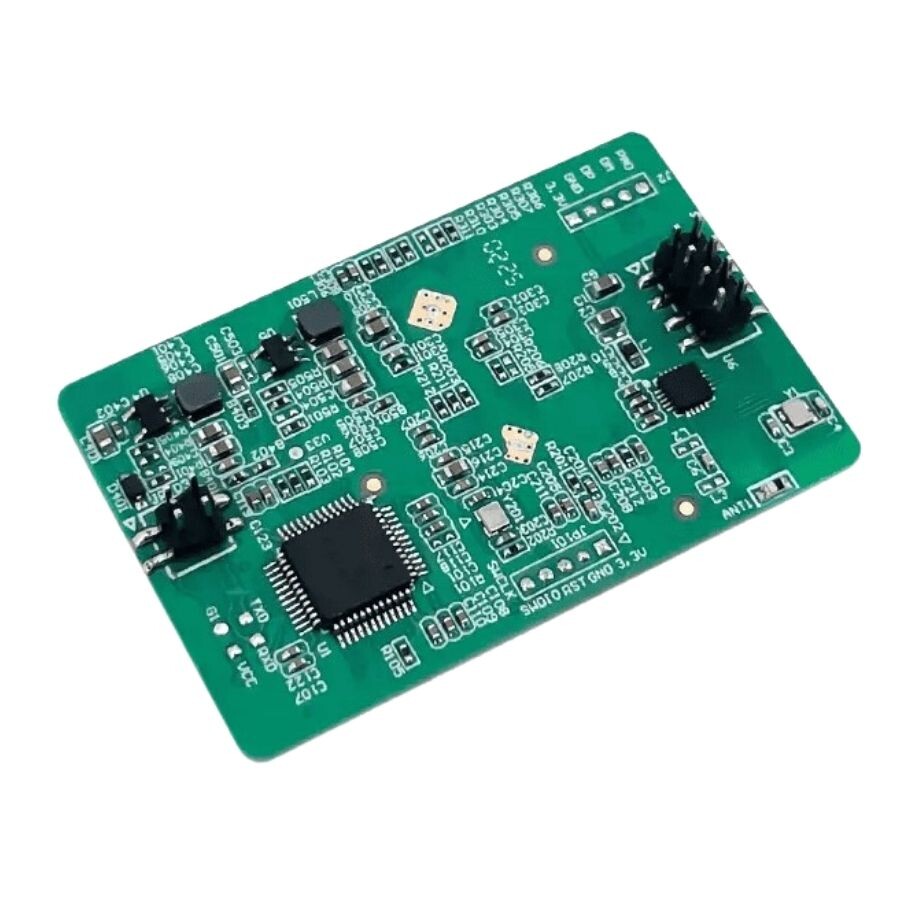

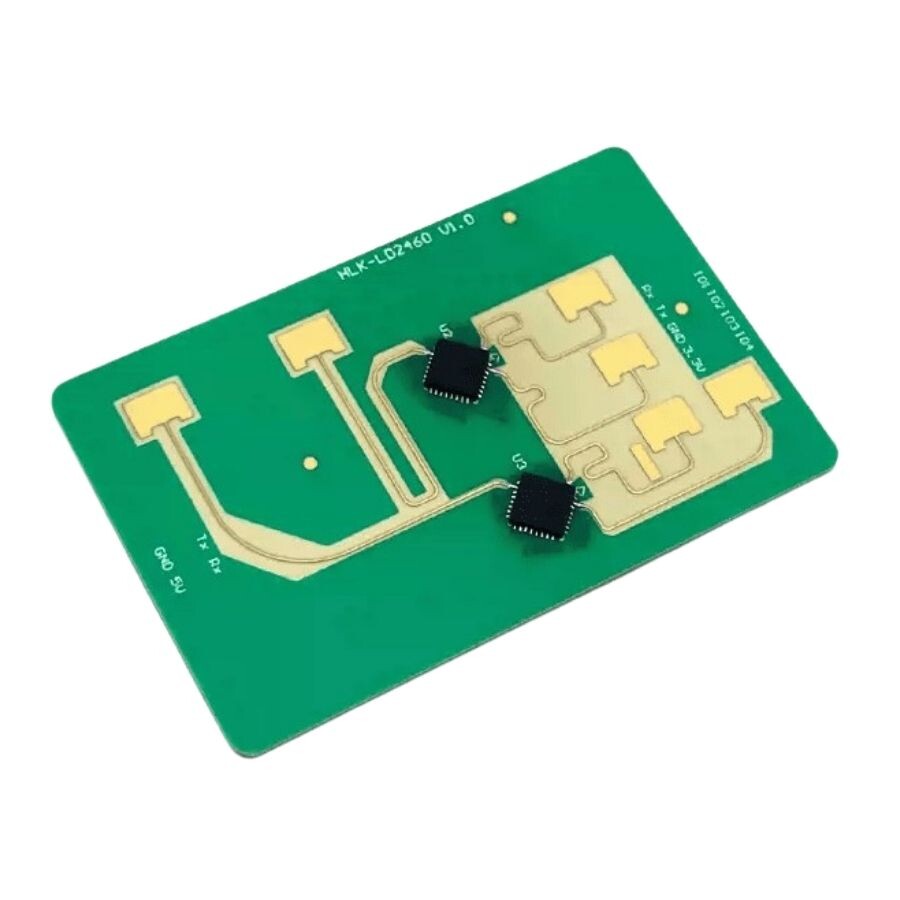

The HLK-LD2460 2T4R 24GHz Radar Motion Detection Sensor Module is a 24 GHz millimeter wave radar product designed for human detection, featuring a distance angle test function. It consists of one transmitter and two receiver millimeter wave radar chips, a high-performance microstrip antenna, a high-performance MCU, a high-performance Bluetooth SOC, and auxiliary peripheral circuits. It uses the FMCW waveform to accurately identify 3-5 human targets and estimate their location. This product is suitable for homes, offices, hotels, etc. It can be used to enable accurate detection of multiple moving, micro-moving, or stationary human bodies in various environments.
Features
- Operating frequency range: 24GHz-24.25GHz
- Operating bandwidth: 250MHz
- EIRP: 13dBm
- Modulation method: FMCW (Frequency Modulated Continuous Wave)
- Operating voltage: 5V
- Operating current: ≤250mA
- Operating temperature: -40℃~85℃
- Storage temperature: -40℃~85℃
- Size: 49.5x32mm
Pinout
| Pin No. | Name | IO type | Function | Illustration |
| 1 | 5V | PWR | Power input | DC5V |
| 2 | GND | GND | GND | GND |
| 3 | Tx1 | O | UART1 output | - |
| 4 | Rx1 | I | UART1 input | - |
| 5 | VDD33 | PWR | Power input | 3.3V/NC, not connected when not debugging |
| 6 | GND | GND | GND | GND |
| 7 | Tx2 | O | UART2 output | Radar data reporting and command response |
| 8 | Rx2 | I | UART2 input | Command receiving |
| 9 | IO1 | I/O | GPIO1/Reserved | - |
| 10 | IO2 | I/O | GPIO2/Reserved | - |
| 11 | IO3 | I/O | GPIO3/Reserved | - |
| 12 | IO4 | I/O | GPIO4/Reserved | - |
