HLK-LD2401 24GHz Radar Motion Detection Sensor Module

HLK-LD2401 24GHz Radar Motion Detection Sensor Module

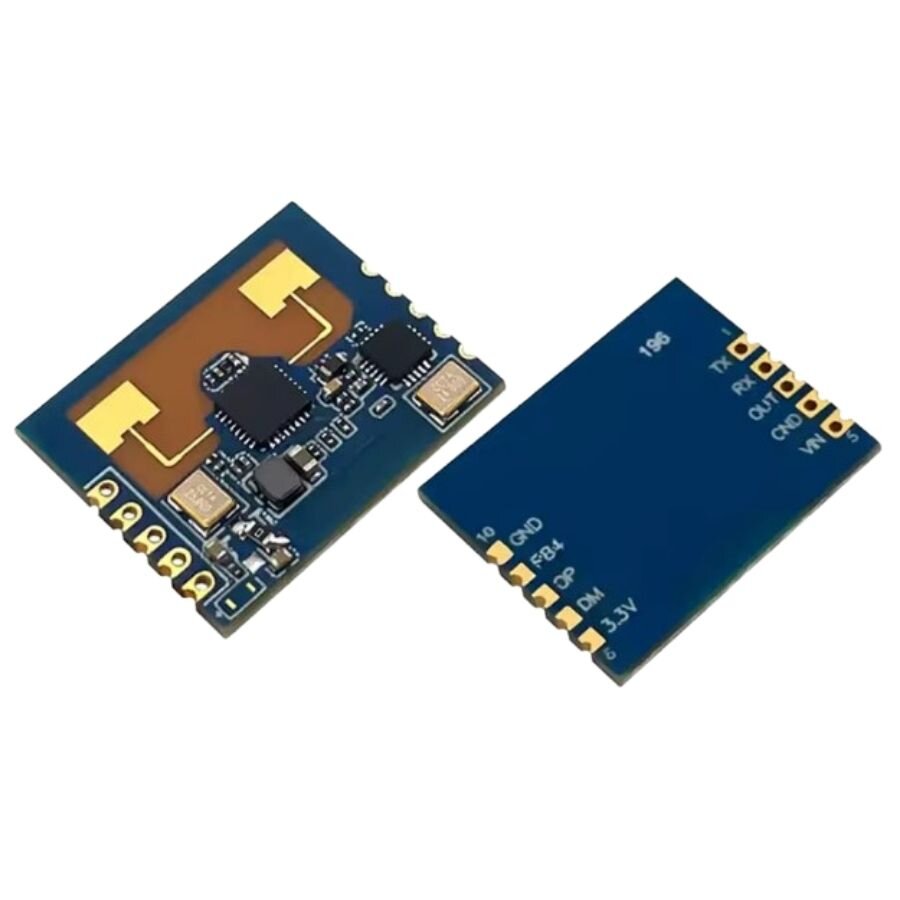

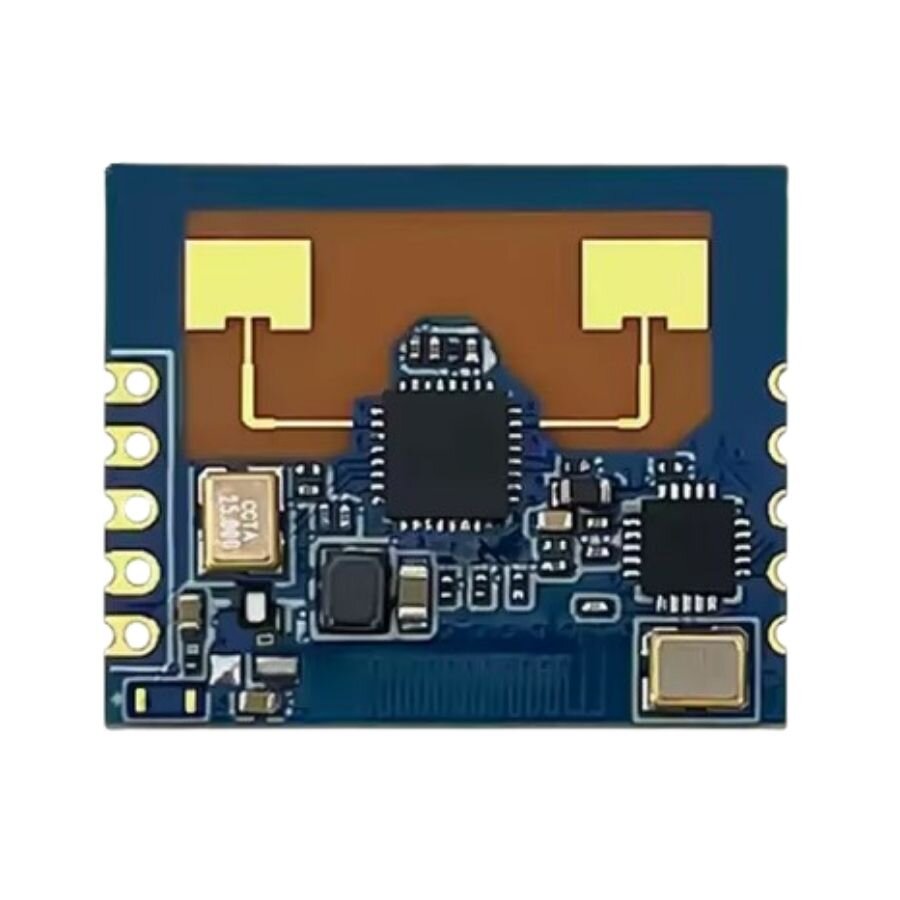

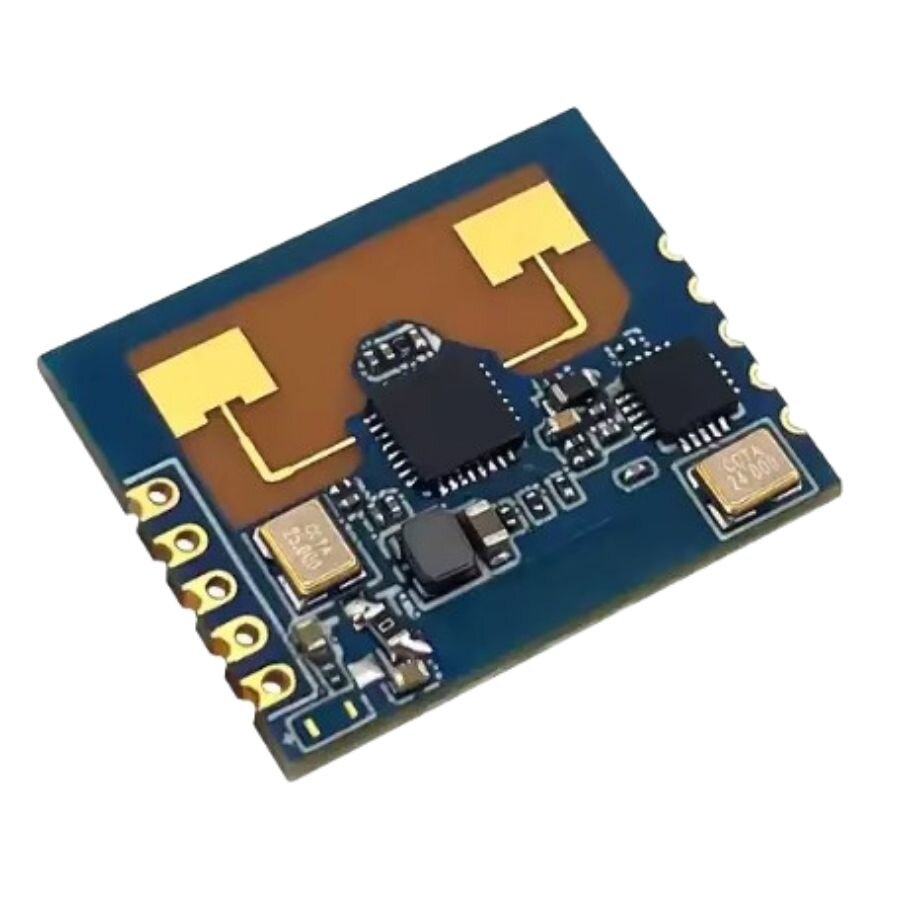

The HLK-LD2401 24GHz Radar Motion Detection Sensor Module is designed to accurately detect human presence, movement, and stationary targets using advanced microwave radar technology. It supports contactless detection with ultra-high sensitivity, low power consumption, and reliable performance even through non-metallic materials such as glass, wood, and plastic. This module is extremely stable, maintenance-free, and ideal for intelligent automation and energy-saving applications.

It can be used with the HLKRadarTool application.

Google Play         AppStore

User Manual

Features

• Operating Frequency: 24GHz ISM band
• Detection Range: Up to 6 meters (adjustable)
• Detection Angle: 100° horizontal / 60° vertical
• Detection Capability: Micro-motion, breathing, and presence detection
• Operating Voltage: DC 5V
• Interface: UART / GPIO output
• Power Consumption: <0.2W (typical)
• Output Type: Presence detection signal (high/low level output)
• Antenna Type: Internal antenna
• Operating Temperature: -20°C to +85°C
• Dimensions: Compact module for easy integration
• HF System: 24GHz CW Radar ISM Band
• Transmission Power: < 10 mW
• Power Supply: 3-5 V DC
• Ambient Light: <3-3000 LUX
• Nominal Load: 1200 W
• Motion Detection Speed: 0.6 - 1.5 m/s
• Dimensions: 18x22mm

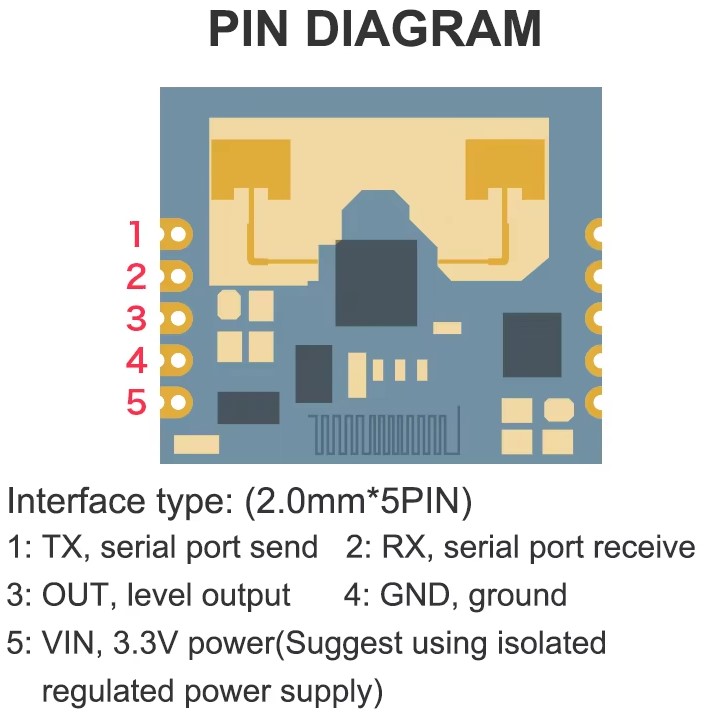

Pin Diagram

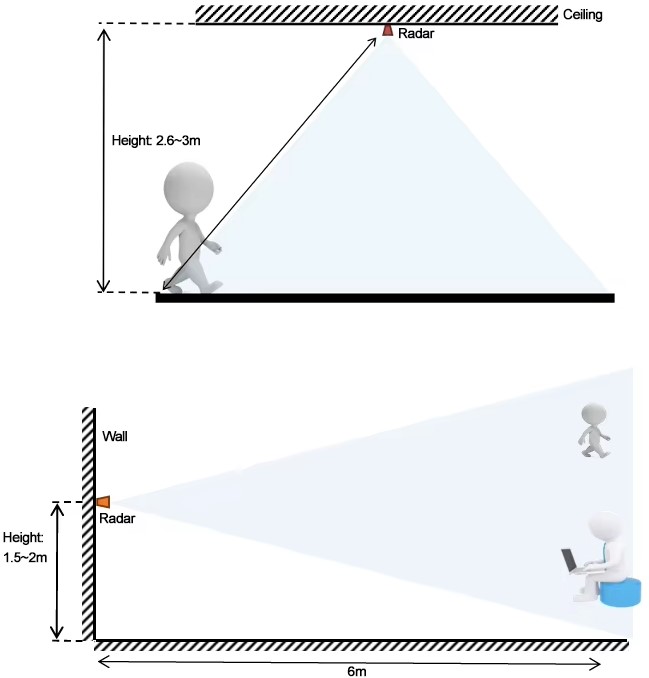

Usage
