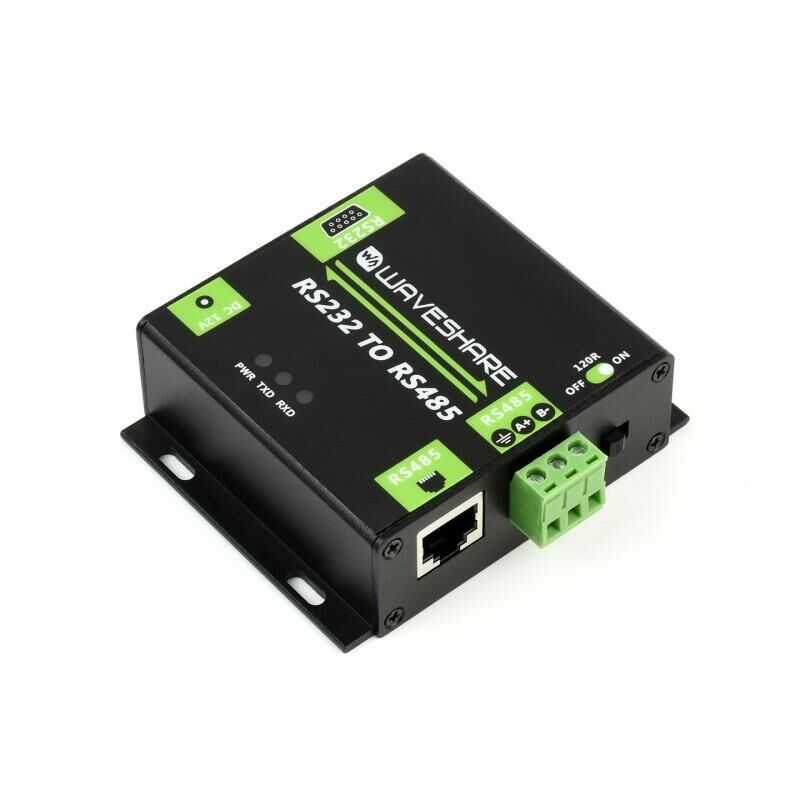

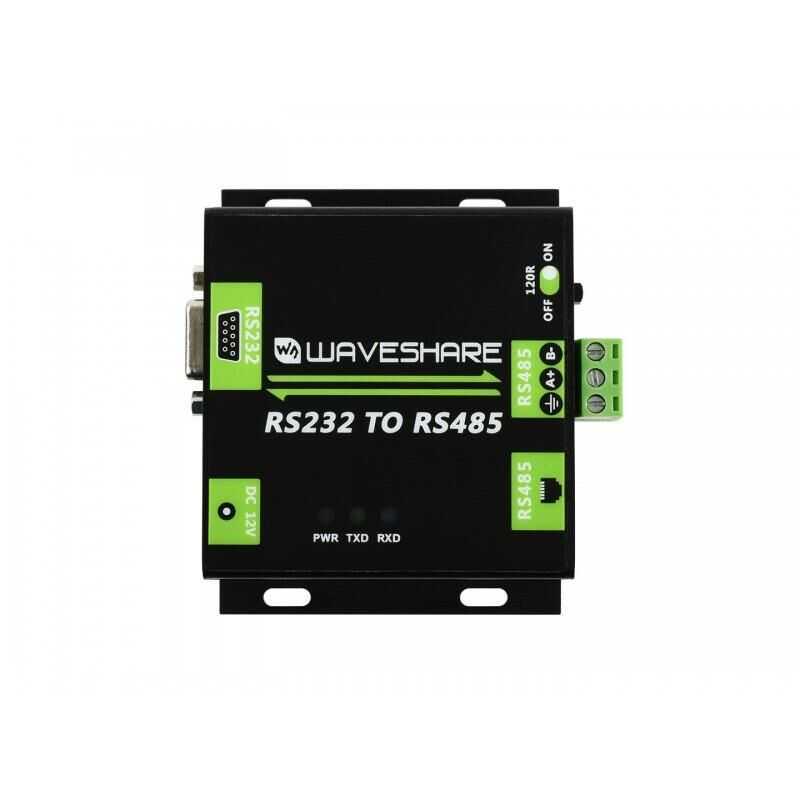

Industrial RS232 to RS485 Converter

It is an RS232 and RS485 asynchronous bidirectional converter with electromagnet isolation. Built-in TVS bi-directional transient suppression diode to protect the device from unstable operation.

*Compatible with RS232 / RS485 standard, provides balanced RS232 signal Converts to differential RS485 signal
*Built-in ADI magnetic isolation provides signal isolation, high reliability, strong anti-interference, low power consumption

*Built-in TVS (Transient Voltage Suppressor) effectively suppresses overvoltage and transient surge voltage in the circuit, lightning proof and anti-electrostatic

*Built-in resettable fuse and protection diodes provide current/voltage stable outputs, provide overcurrent/overvoltage protection, increase shock resistance

*Activated via switch / disabled optional RS485 output terminal integrates 120R resistor

*DC-005 power input allows 6V ~ 36V DC wide range input, suitable for different application occasions

*3x LED indicator, easy to check the working status: power, sending and receiving

Specifications

Product type: Electromagnetic isolation RS232 to RS485 asynchronous duplex converter

Baud rate: 300 ~ 115200bps

Device interface: standard RS232 / RS485

RS232 interface:

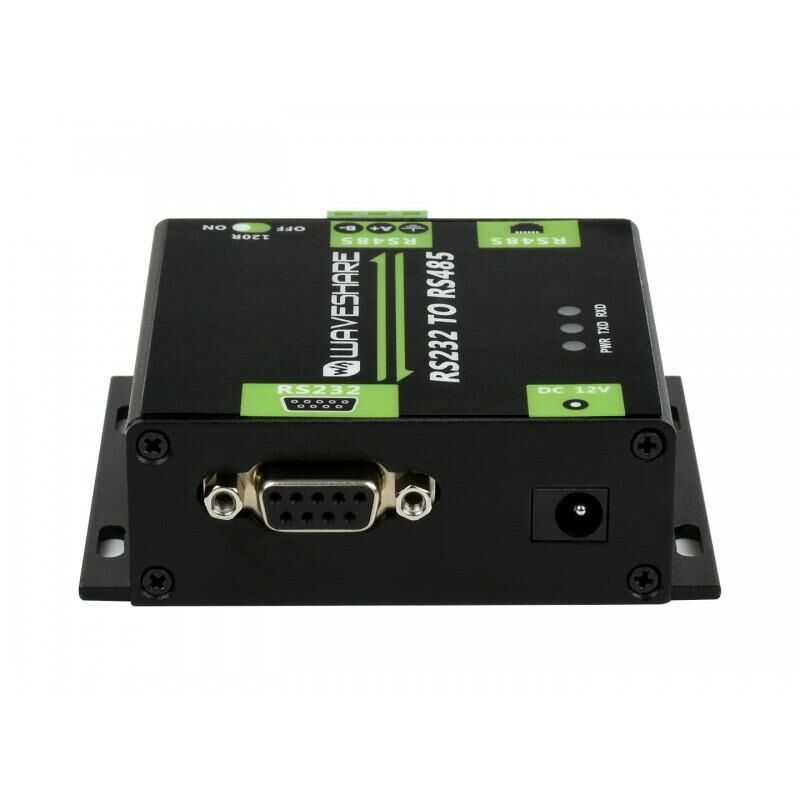

Connector: DB9 male

Transmission range: approximately 15 meters

Transmission type: Point-to-Point

RS485 interface:

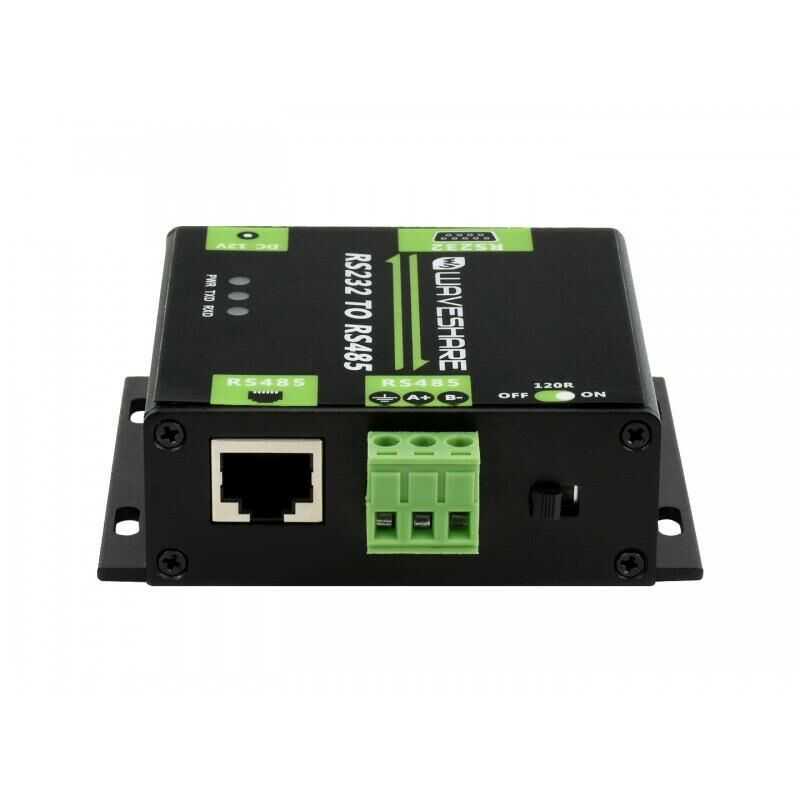

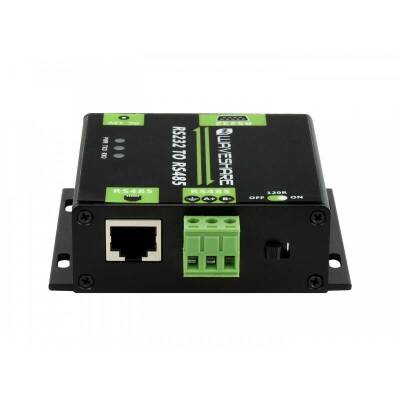

Connector: DIP connector + RJ45 port

Direction control: Hardware automatic control

Interface protection: 600W lightning protection, overcurrent and 15KV ESD protection

Terminal resistance: 120R, switchable

Transmission range: approximately 1200 meters

Transmission type: Point to Omnipoint (support up to 32 points, Transmission recommended if using more than 16 points )

Indicators:

PWR: Power indicator turns red when power supply is connected

TXD: Transmission indicator turns green when data is transmitted through the RS232 port.

RXD: The receive indicator turns blue when data is received by the RS232 port

Temperature: -15℃ ~ 70℃

Humidity:5%RH ~95%RH

Note: The on-board switch is used to enable/disable the 120R terminal resistor. Terminal resistance is recommended for Starting and Terminating devices.
