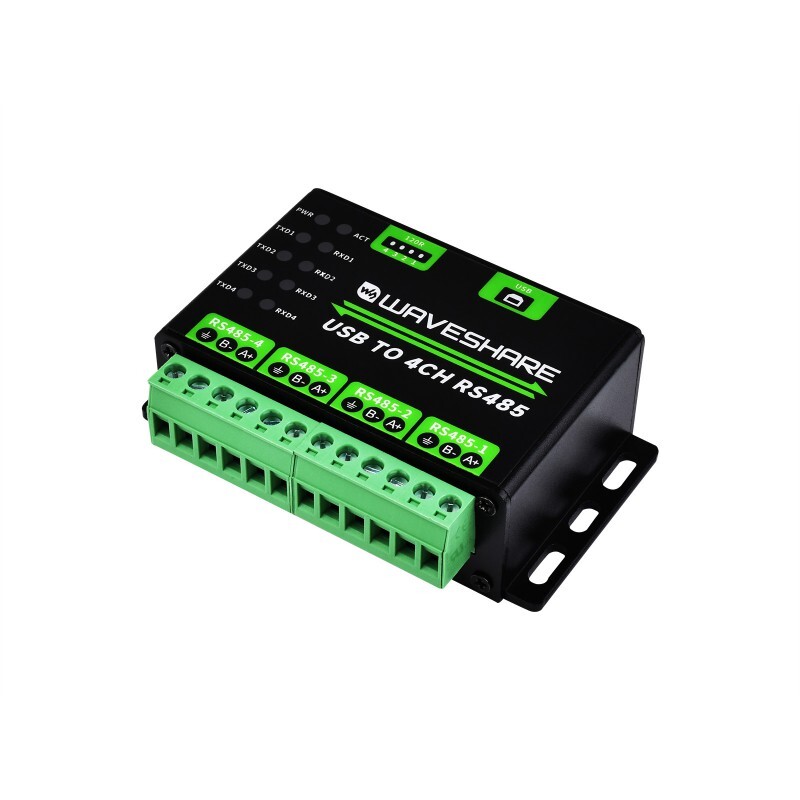

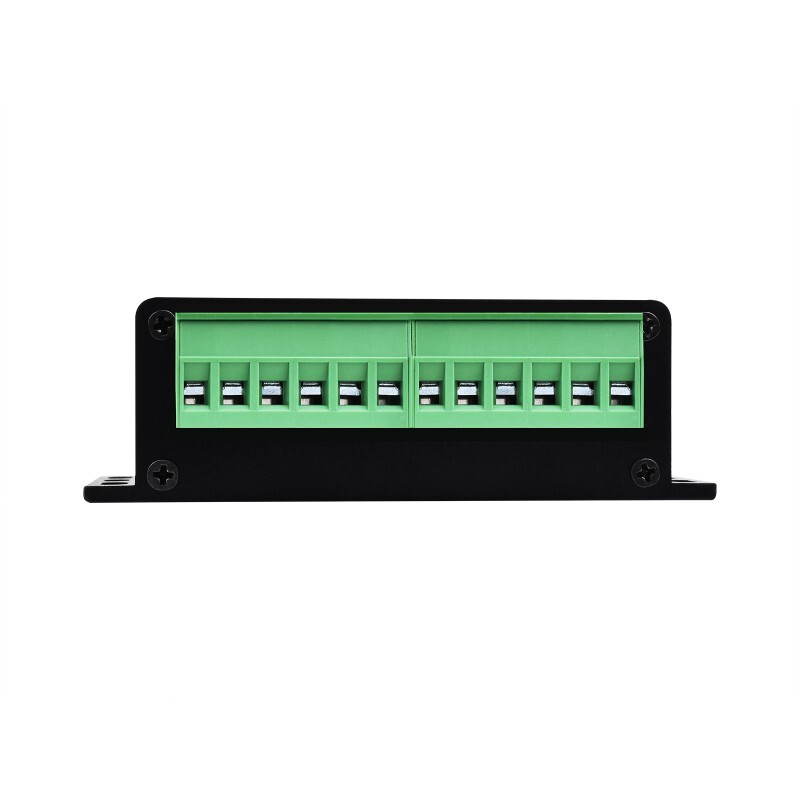

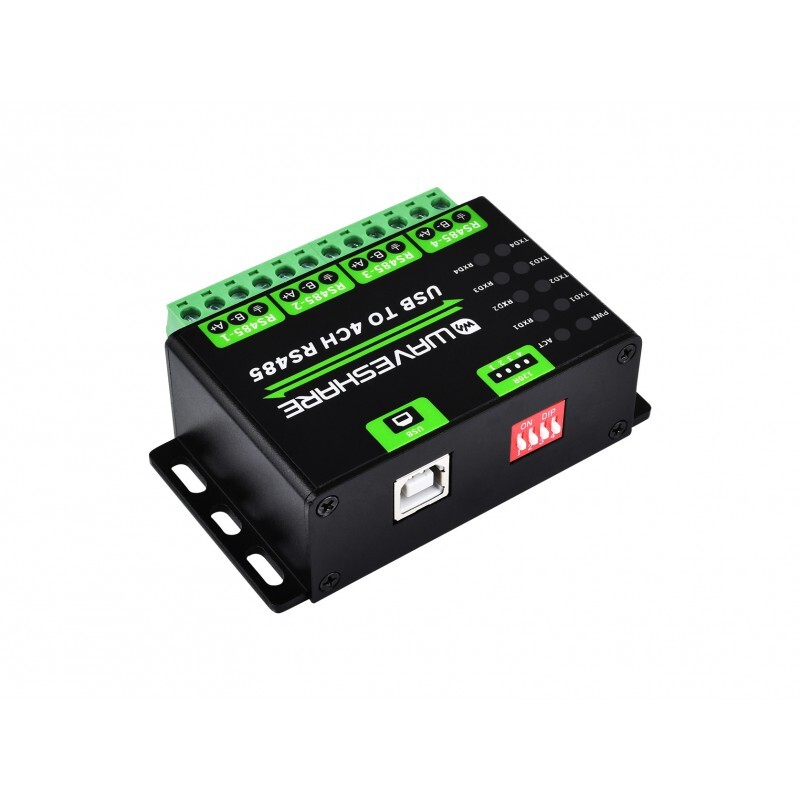

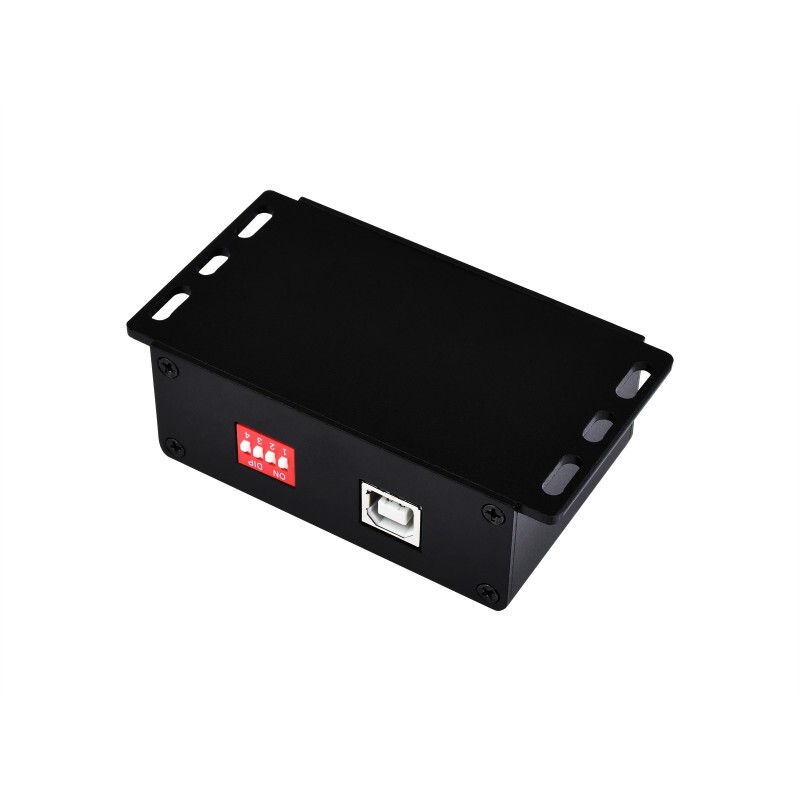

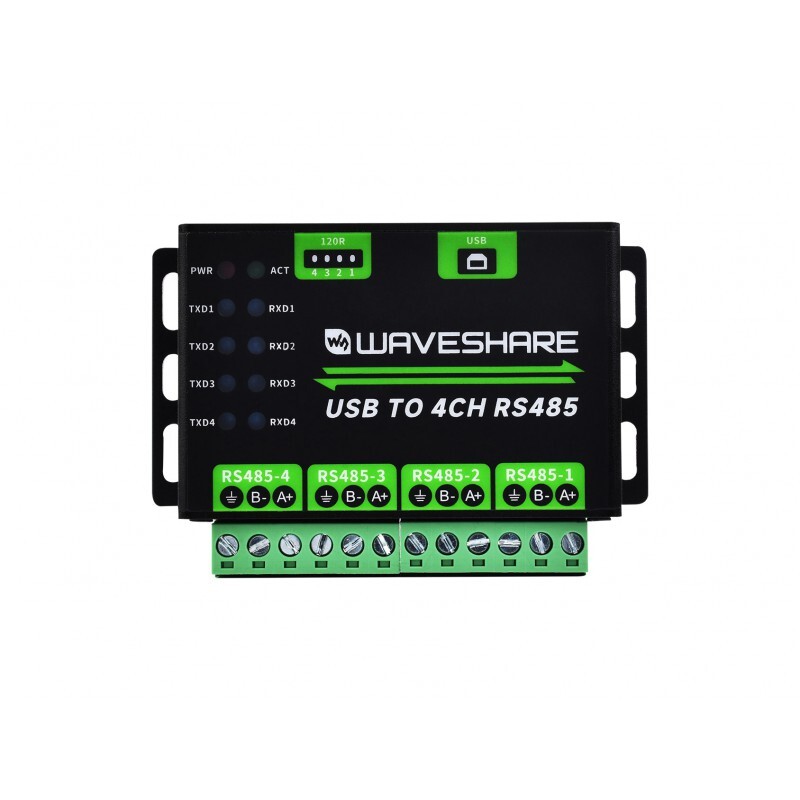

Industrial USB to 4 Channel RS485 Converter

Industrial USB to 4 Channel RS485 Converter

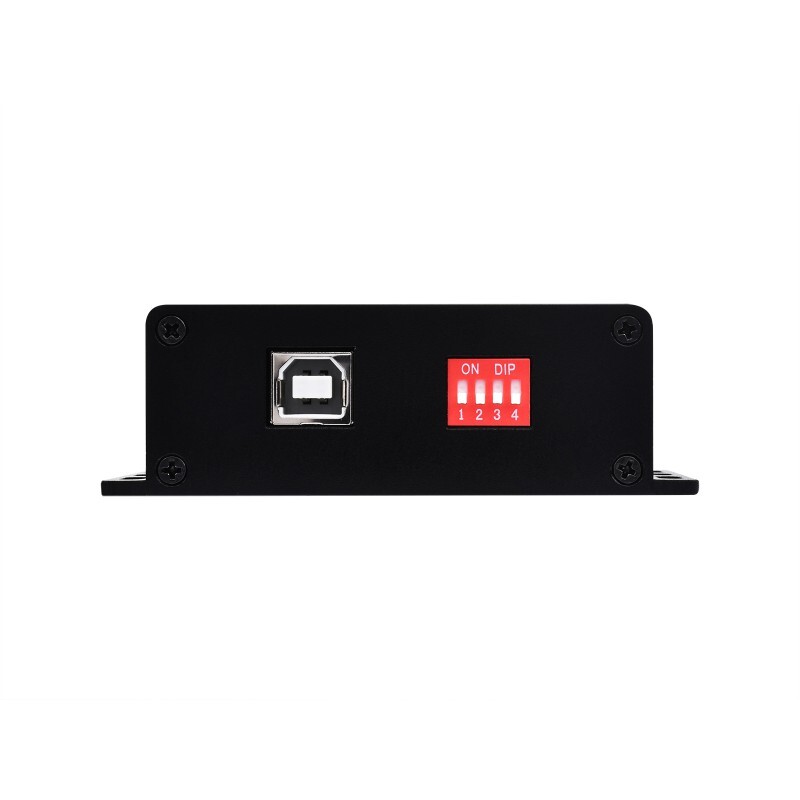

Industrial USB to 4 Channel RS485 Converter, Built-in TVS (Transient Voltage Suppressor), over voltage in the circuit and It effectively suppresses transient surge voltage, is lightning resistant and anti-electrostatic. Onboard resettable fuse and protection diodes ensure stable outputs of current/voltage, provide over-current/over-voltage resistance, enhance shockproof performance. Onboard RS485 output terminal 120R resistors are enabled/disabled via DIP switch.

Specifications

• Supply Voltage: 5V (USB-TypeB)
• Host Port: USB
• Device Port: RS485
• Baudrate: 1200 ~ 460800bps
• Protection: Surge suppressor up to 600W , 15KV ESD
• Transmission Distance: Maximum communication distance is about 1200m (at low speed, with 120R resistor on)
• Transmission Mode: Point to multipoint (up to 32 nodes, 16 or more it is recommended to use repeaters for multiple nodes)
• Operating Temperature Range: -40 ~ 85°C
• Supported Operating Systems: Win7/8/8.1/10/11, Mac, Linux, Android
