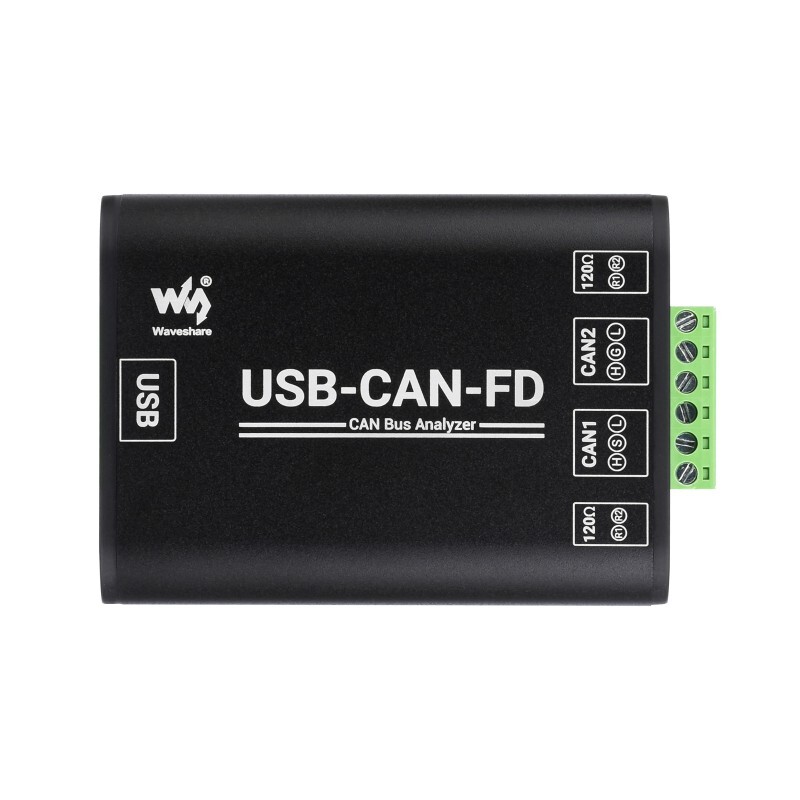

Industrial USB to CAN/CAN FD Converter - Bus Data Analyzer, USB-CAN-FD is an industrial grade high performance USB to CAN FD adapter, CAN/CAN-FD bus communication interface board and CAN/CAN-FD protocol data analyzer. There is a built-in dual independent CAN FD interface with electrical isolation and multiple protection circuits. Supports Windows It can be connected to a PC or industrial control host via a USB port to realize transceiver control, data analysis, collection and monitoring of the network. It is compact in size and easy to use, which can be used for learning and debugging the CAN/CAN FD bus, as well as for secondary development and integration into a variety of industrial, power communications and intelligent control applications that require CAN/CAN FD.

< span class="Y2IQFc">

Features

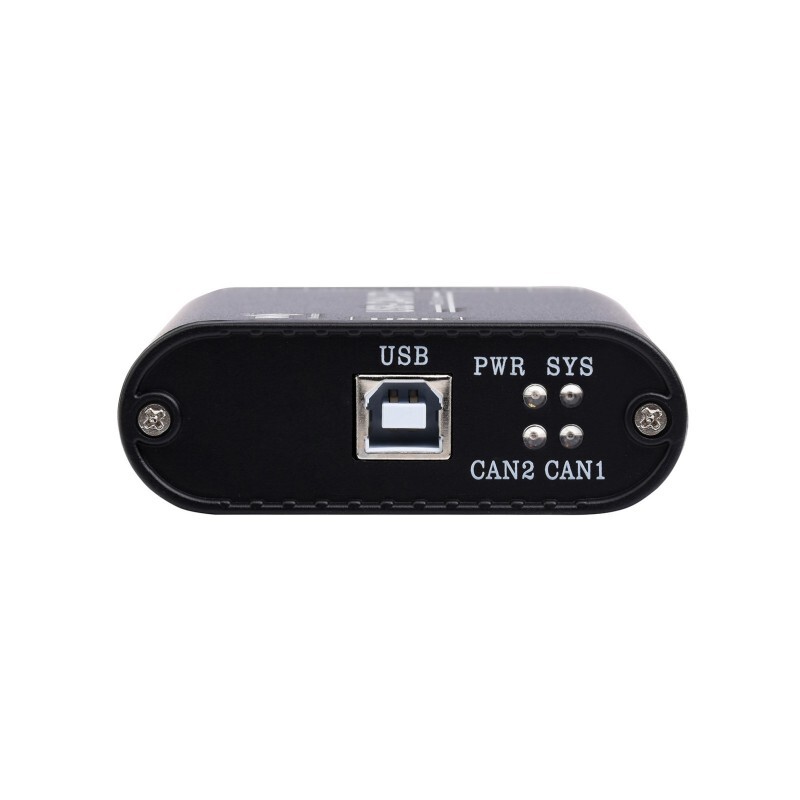

• Operation Voltage: 5V USB (Type-B)
• CAN/CAN FD Number of Channels: Dual channel (CAN1-CAN2)

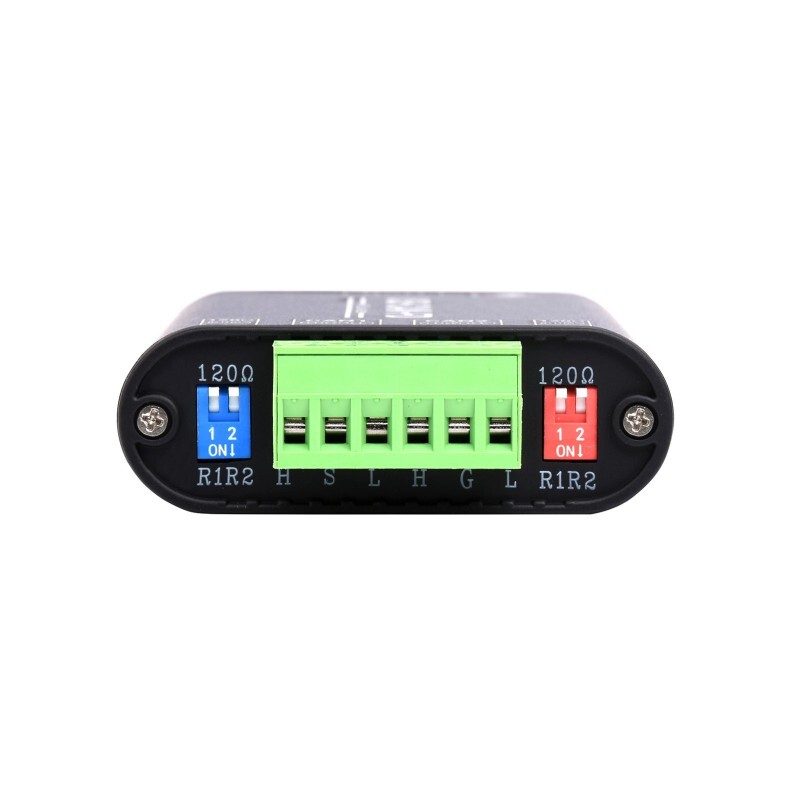

• Terminal Resistance: Two switch-enabled onboard 120R terminal resistors are available for each channel
• Baud Rate: 100Kbps - 5Mbps (Can be set via software)
• Supported Protocols: CAN2.0A, CAN2.0B, and ISO 11898-1 CAN FD protocol V.1.0
• Transfer Rate: 20000 frames/s (per channel)
• Transmit Buffer: 1500 frames (per channel) and 64 frames transmit buffer (provides automatic retransmission when transmission fails)
• Supported OSs: Windows  XP/7/8/10/11 (32/64 bits), no Linux support
• Operation Temperature Range: -40 ~ 85°C
• Case Material: Aluminum alloy
• Dimension: 104x70x25mm
