LM1117 SMD 3.3V Voltage Regulator - AMS1117

AMS1117 3.3V constant voltage output, up to 1A It is designed to provide up to output current and operate with an input-output difference of up to 1V. The dropout voltage of the device is guaranteed to a maximum of 1.3V, decreasing at lower load currents.

The current limit is set to minimize stress under overload conditions on both the regulator and the power supply circuit.

Usage Areas

Used for positive voltage regulation

Variable power supply

Current limiting circuits

Reverse polarity circuits

Commonly used in desktop PCs, DVDs, and other consumer products

Used in motor control circuits

Series	LM1117
Output Type	Solid
Output Voltage	3.3V DC
Input Voltage	13.8VDC Max.
Current Output	1A

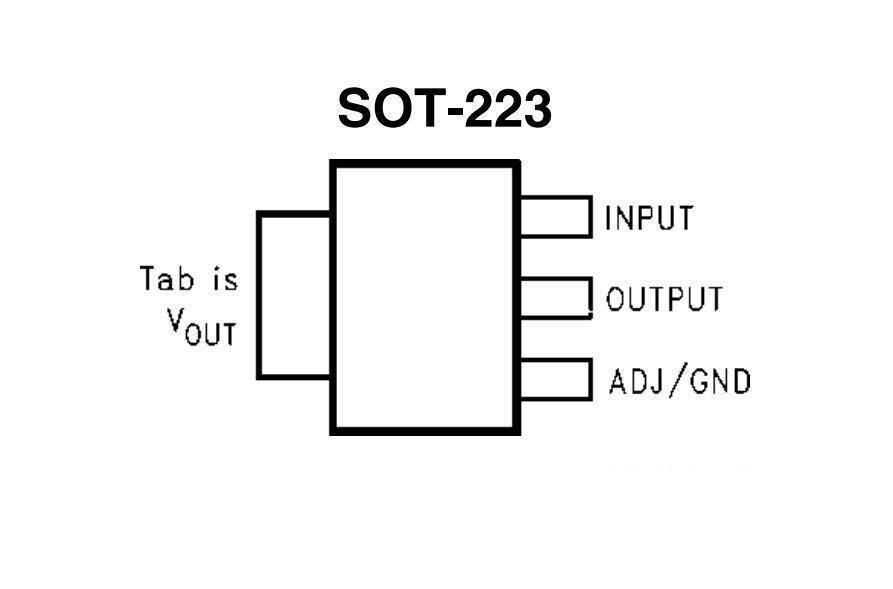

Package Type	SOT-223

AMS1117 Datasheet
