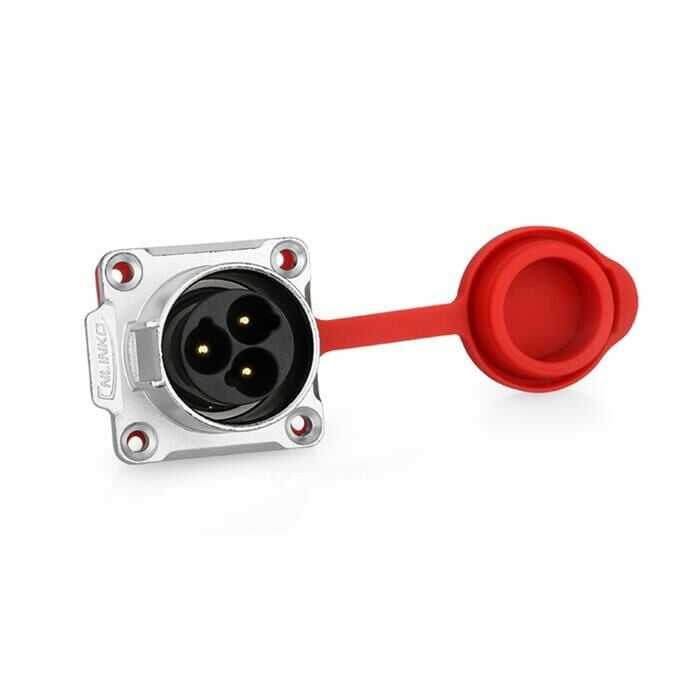

LP-24-C03SX-03-401 3-Pin Waterproof Connector - Male

It is a 3-pin male connector for power applications. Compatible with 12-14 AWG cable. It has a snap design for a reliable connection. Built to withstand the demands of industrial applications.

The LP series is one of the best-selling waterproof connector series made from high-performance engineering plastics. Quick plug design allows one-handed plug/remove. It has gold plating technology that is resistant to corrosion and suitable for high and low temperatures. LP-24 series connectors are widely used in various harsh environments and situations such as audio-visual equipment, medical equipment, industrial control, inspection and measurement due to their small size, flexible operation and automatic plug-in/disconnect. Compact components, simple operation, fast and stable connection, IP67-rated outdoor waterproof performance.

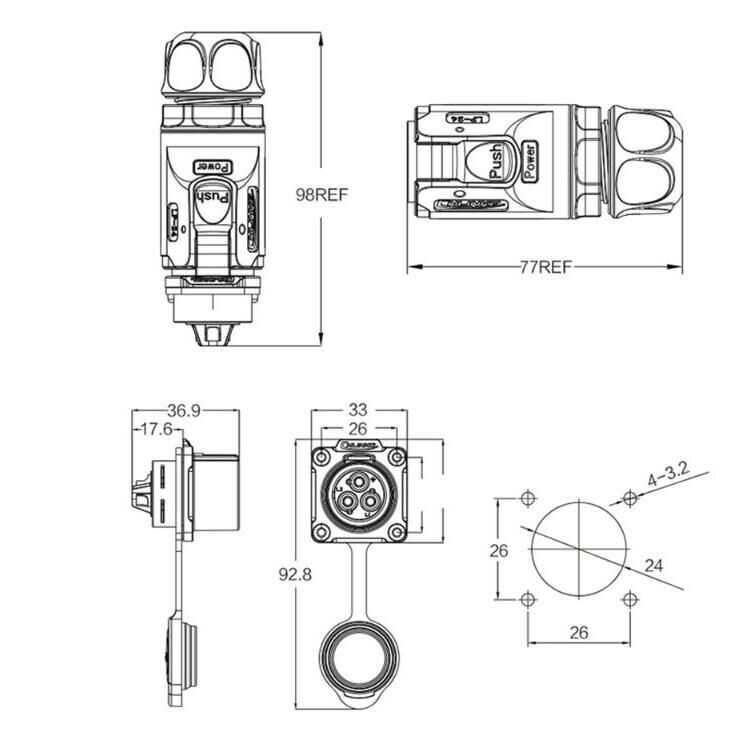

LP-24-J03PE-01-001 3-Pin Waterproof Connector.

Technical Specifications

Gold-plated contacts for increased corrosion protection
PBT shell
High temperature and pressure resistance
IP65/67 rating when connected
Number of Pins: 3
Wire Size: 14-12 AWG
Diameter Range: 8-12mm
Contact Diameter: 3mm
Rated Current: 25A

Operating Voltage: 500V

Contact Resistance: <1mOhm
Withstand Voltage: 2500V
Insulation Resistance: > 500MOhm
Operating Temperature: -40 C to 80 C (-40 F to 176 F)
Housing Material: High Performance Plastic
Hardware: Zinc Alloy
Contact Material : Gold Plated Copper Alloy
Flammability Rating: UL94-V0
Approvals: UL, CE, CCC, RoHS, ISO9001

LP-24 Series Waterproof Connector Datasheet
