Name: LP-24-J04SX-03-401 4-Pin Waterproof Connector - Female
Brand: CNLINKO
SKU: KOM.KNN.05.000447
Price: 645.00 TRY
Availability: InStock

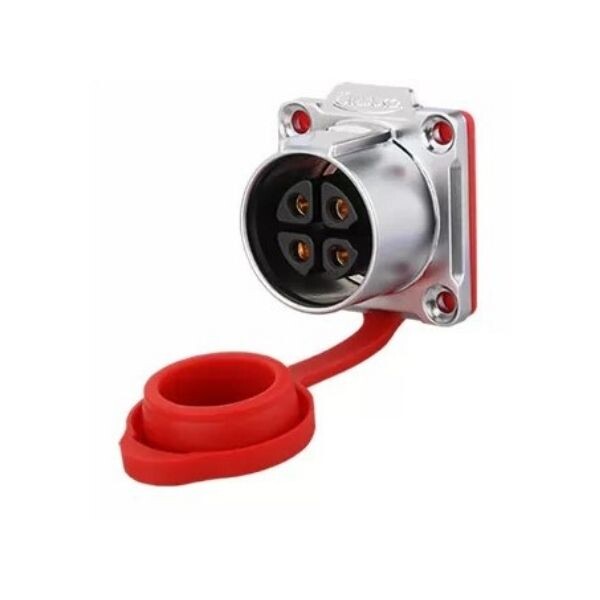

LP-24-J04SX-03-401 4-Pin Waterproof Connector - Female

A 4-pin female connector for power applications. Compatible with 12-14 AWG wire. Snap-on design for a reliable connection. Built to withstand the demands of industrial applications.

LP series is one of the best-selling waterproof connector series made of high-performance engineering plastics. Quick plug design allows for one-handed plug/unplugging. It features gold plating technology that is corrosion resistant and suitable for high and low temperatures. LP-24 series connectors are widely used in various harsh environments and situations such as audiovisual equipment, medical equipment, industrial control, inspection and measurement due to their small size, flexible operation and automatic plugging and unplugging. Compact components, simple operation, fast and stable connection, IP67 grade outdoor waterproof performance.

LP-24-C04PE-01-001 4-Pin Waterproof Connector - Male You can use it together.

CNLINKO products can be produced with cables upon request. Special production is valid for bulk purchases. For special requests, you can send an e-mail to info@motorobit.com.

Technical Specifications

Gold plated contacts for increased corrosion protection
PBT shell
High temperature and pressure resistance
IP65/67 rating when connected
Number of Pins: 4
Cable Size: 14-12 AWG
Diameter Range: 8-12mm
Contact Diameter: 3mm
Rated Current: 25A
Working Voltage: 500V
Contact Resistance: <1mOhm
Withstanding Voltage: 2500V
Insulation Resistance: > 500MOhm
Operating Temperature: -40 C to 80 C (-40 F to 176 F)
Housing Material: High Performance Plastic
Hardware: Zinc Alloy
Contact Material: Gold-Plated Copper Alloy
Flammability Rating: UL94-V0
Approvals: UL, CE, CCC, RoHS, ISO9001

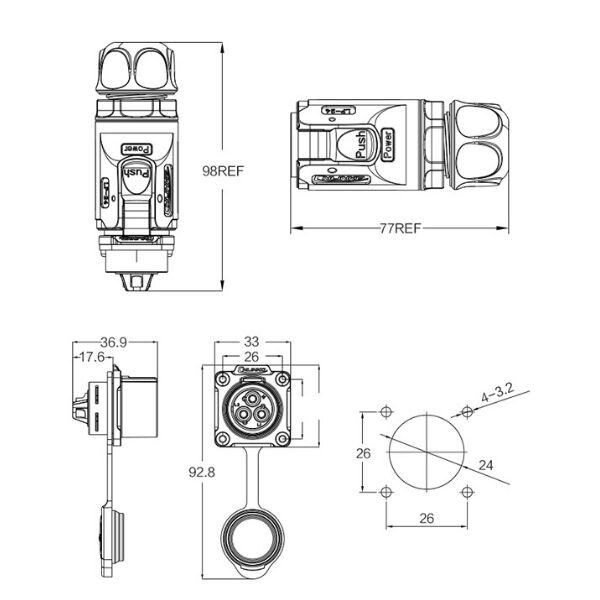

LP-24 Series Waterproof Connector Datasheet
