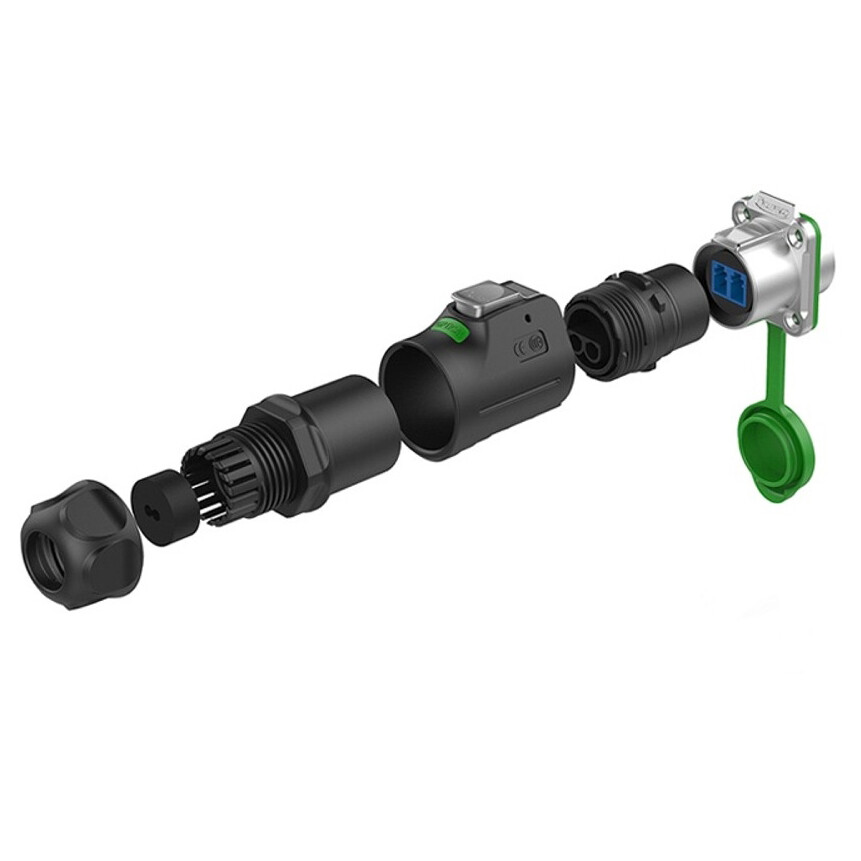

LP-24-C/LC/016/PE-41-003 Waterproof Fiber Optic Connector - Male

LP-24 Series fiber optic connectors LC type, low and with constant contact resistance, it meets the different needs of the industry and also applies to the International environmental protection of Industrial equipment. These connectors feature high-frequency noise immunity and electromagnetic interference protection. Quick plug design and snap lock make it easy and simple for quick connections.

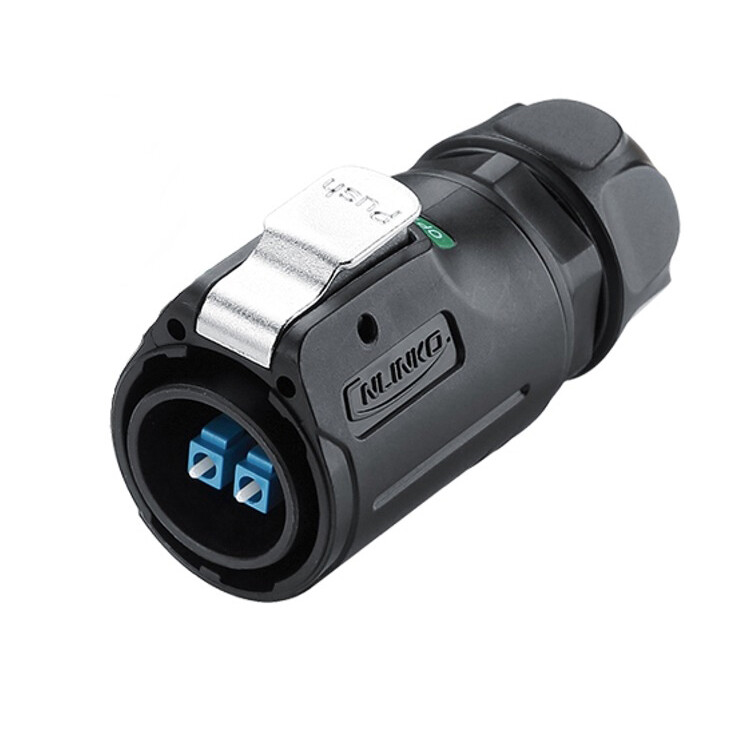

LP-24-J/LC/213/SX-43-401 Waterproof Fiber Optic Connector - Female.

Technical Features

Pluggable Style
Standard crystal connector
Stable contact resistance
IP65/67 rating when connected
Number of Contacts: 2
Cable Size: 24-26 AWG
Diameter Range: 5.5 -7mm
Operating Temperature: -40 C to 80 C (-40 F to 176 F)
Enclosure Material: High Performance Plastic
Hardware: Zinc Alloy
Flammability Rating: UL94-V0
LP-24 Series Waterproof Connector Datasheet
