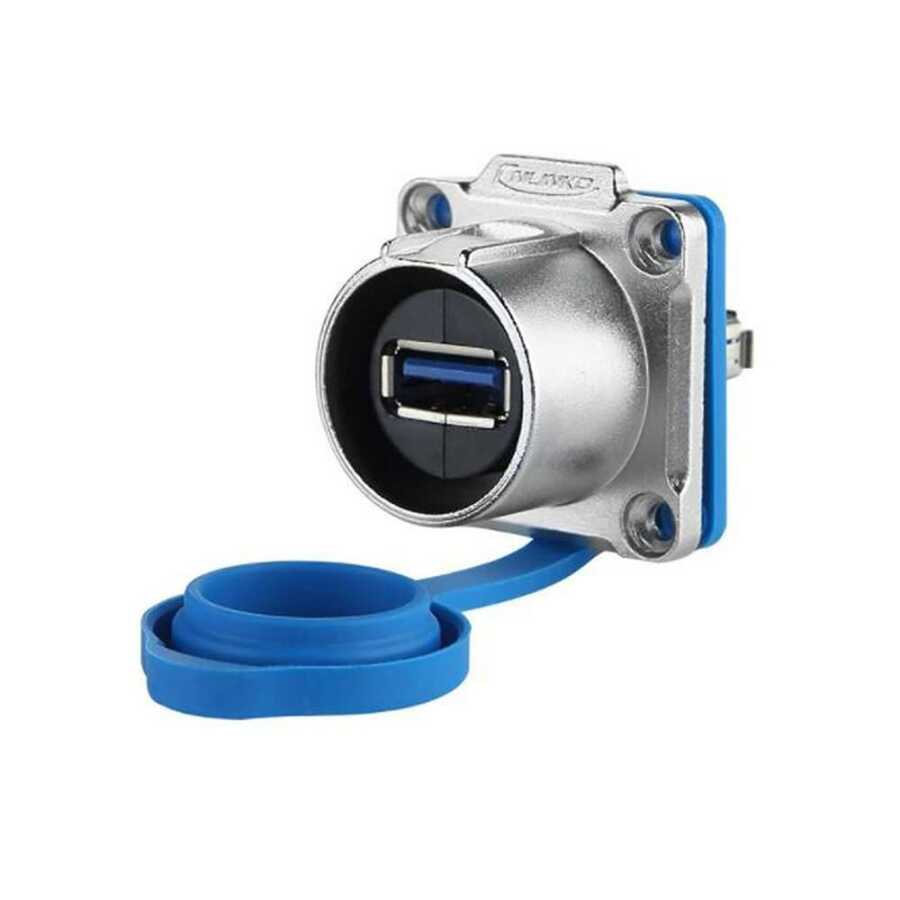

LP-24-J/USB3/213/SX-43-401 Waterproof Data Connector - Female

LP-24 Series USB connectors meet the diverse needs of the industry and It uses Zinc alloy with nickel plating to guarantee the quality and also complies with the International environmental protection of Industrial equipment. Satisfy the quality and meet the environmental protection requirements of international industrial equipment. Quick plug design allows one-handed plug/remove. With military standard screw type locking.

LP24-USB3-MP-MP-0D5M You can use it with -001 Waterproof Data Connector - Male.

Technical Specifications

Pluggable Style
Standard crystal connector
Stable contact resistance
IP65/67 rating when connected
Number of Contacts: 9
Cable Size: 24-26 AWG
Diameter Range: 5.5-7mm
Rated Current: 1.5A
Contact Resistance: <30mOhm
Withstand Voltage: 1000V
Operating Temperature: -40 C to 80 C (-40 F to 176 F)
Housing Material: High Performance Plastic
Hardware: Zinc Alloy
Flammability Rating: UL94-V0

LP-24 Series Waterproof Connector Datasheet
