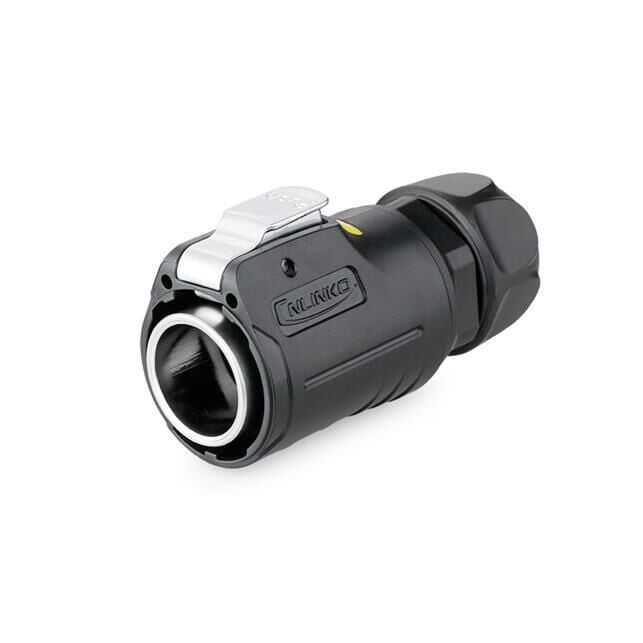

LP-24-C/RJ45/015/PE-41-001 Waterproof Ethernet Connector - Male

RJ45 series connectors 1/4 applicable to harsh environments It has multiple style connection modes such as bayonet connection and quick plug-in connection. These connectors feature high-frequency noise immunity and electromagnetic interference protection, and a protection system with IP65 waterproof and dustproof protection level. Compliance with level D of EIA568B and ISO/IEC11801 or CAT 3e standard, CAT5e compatible RJ45 connectors, data transfer rate reaches 10GBit/s.

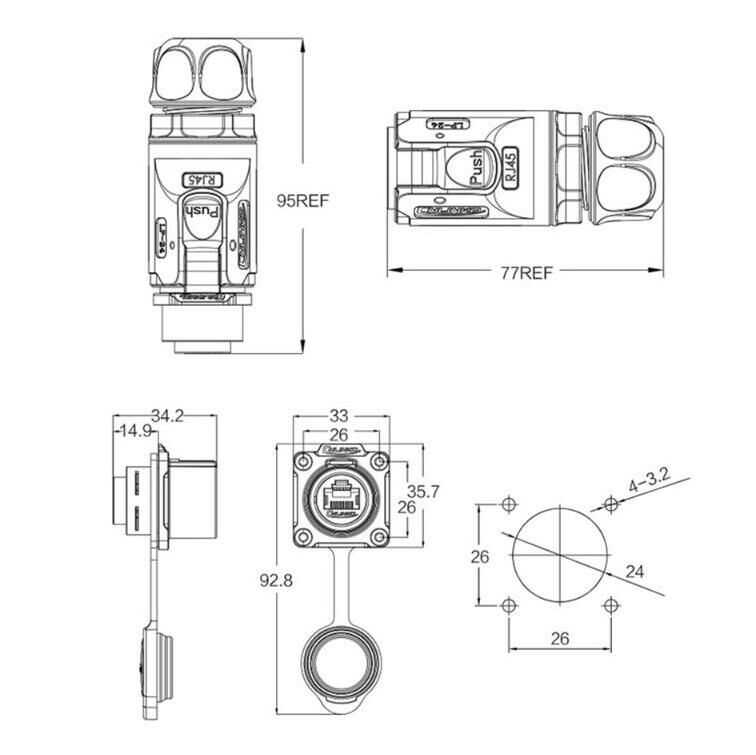

LP-24-J/RJ45/213/SX-43-401 Waterproof Ethernet Connector - Female.

Technical Specifications

Pluggable Style
Standard crystal connector
Stable contact resistance
IP65/67 rating when connected
Number of Contacts: 8
Cable Size: 24-26 AWG
Diameter Range: 5.5-7mm
Rated Current: 1.5A
Contact Resistance: <30mOhm
Withstand Voltage: 1000V
Operating Temperature: - 40 C to 80 C (-40 F to 176 F)
Housing Material: High Performance Plastic
Hardware: Zinc Alloy
Flammability Rating: UL94-V0

LP-24 Series Waterproof Connector Datasheet
